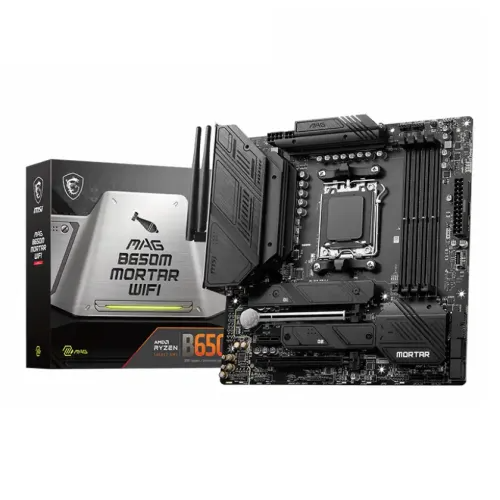

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

Basic Information
Supported CPU Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Graphics
Graphics 1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory 128GB
Expansion Slots
PCI 2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Connector & Ports
Display Port (s) 1x Display Port
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2
HDMI 1x HDMI
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Supported Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
Audio HD Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
Warranty Information
Manufacturing Warranty 03 Years Warranty

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

The MSI MAG B650M MORTAR WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650M MORTAR WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

Quick Compare

Product Details
Product MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard MSI MAG B660 TOMAHAWK WIFI DDR5 12th Gen ATX Motherboard ASRock Z690 Steel Legend 12th Gen ATX Motherboard
Image MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard MSI MAG B660 TOMAHAWK WIFI DDR5 12th Gen ATX Motherboard ASRock Z690 Steel Legend 12th Gen ATX Motherboard
Price 29,480৳ 27,500৳ 29,100৳ 27,500৳ 28,700৳ 27,100৳ 29,100৳ 27,900৳
Model MAG B650M MORTAR WIFI PRO Z690-A WiFi DDR4 MAG B660 TOMAHAWK WI-FI DDR5 Z690 Steel Legend
Brand MSI MSI MSI ASRock
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX MotherboardThe MSI MAG B650M MORTAR WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650M MORTAR WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C... MSI PRO Z690-A WIFI DDR4 MotherboardStreamline performance of your business rig with the PRO Z690-A WIFI DDR4 LGA 1700 ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking.Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This board also supports AMD CrossFireX for multi-GPU setups. Connect accessories via a USB 3.2 Gen 2x2 Type-C port, plus one USB 3.2 Gen 2, two USB 3.2 Gen 1, and four USB 2.0 Type-A ports on the rear I/O panel. Or, use Bluetooth 5.2 and Wi-Fi 6E to pair to wireless peripherals and go online. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections.Connect to monitors via the HDMI or DisplayPort outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, and more. Relying on the Realtek ALC897 Audio Codec, the MSI PRO Z690-A WIFI DDR4 LGA 1700 ATX Motherboard supports 8-channel audio... MSI MAG B660 TOMAHAWK WIFI DDR5 12th Gen ATX MotherboardMSI MAG B660 TOMAHAWK WIFI DDR5 12th Gen ATX Motherboard is another motherboard from MSI. This 12th Gen ATX Motherboard Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR5, up to 6200+(OC) MHz. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards. Here, Utilizing 12th Gen Intel processors. This motherboard has Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works. With the 2.5G LAN and Intel Wi-Fi Solution, it helps to Upgraded the network solutions for professional and multimedia use. Delivers a secure, stable, and fast network connection. This motherboard also comes with Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. Here, Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards. let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. It has M.2 SHIELD FROZR which is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance... ASRock Z690 Steel Legend 12th Gen ATX MotherboardThe ASRock Z690 Steel Legend Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 13 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC) RAM. It offers a max capacity of system memory up to 128GB. It supports Intel Extreme Memory Profile (XMP) 2.0. It is ready to unleash the full potential of future high-end graphic cards. It has a blazing fast data transfer interface with a reversible USB Type-C design that fits the connector either way. USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as the previous generation.PCIe 5.0 and High-Speed M.2 SolutionThe ASRock Z690 Steel Legend motherboard supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps. It is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3).Nahimic AudioThe ASRock Z690 Steel Legend is featured with Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI. It is also equipped with Realtek ALC897 7.1 CH HD Audio Codec.Polychrome RGB Sync-certifiedASRock Z690 Steel Legend is equipped with onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on...
