- MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
- Stock: In Stock
- Model: MAG B550 TOMAHAWK MAX WIFI
- Supported CPU: Ryzen 5000, 5000 G, 4000G, and 3000 Series for Socket AM4
- Supported RAM: 4x DDR4, up to 5100+(OC) MHz
- Graphics Output: 1x HDM, 1x DisplayPort
- Features: 2x M.2, 2.5G LAN and AMD Wi-Fi 6E
| General | |
| Type | DDR4 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Memory Size | 128GB |
| Slots | 4 |
| Supported Memory Type | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

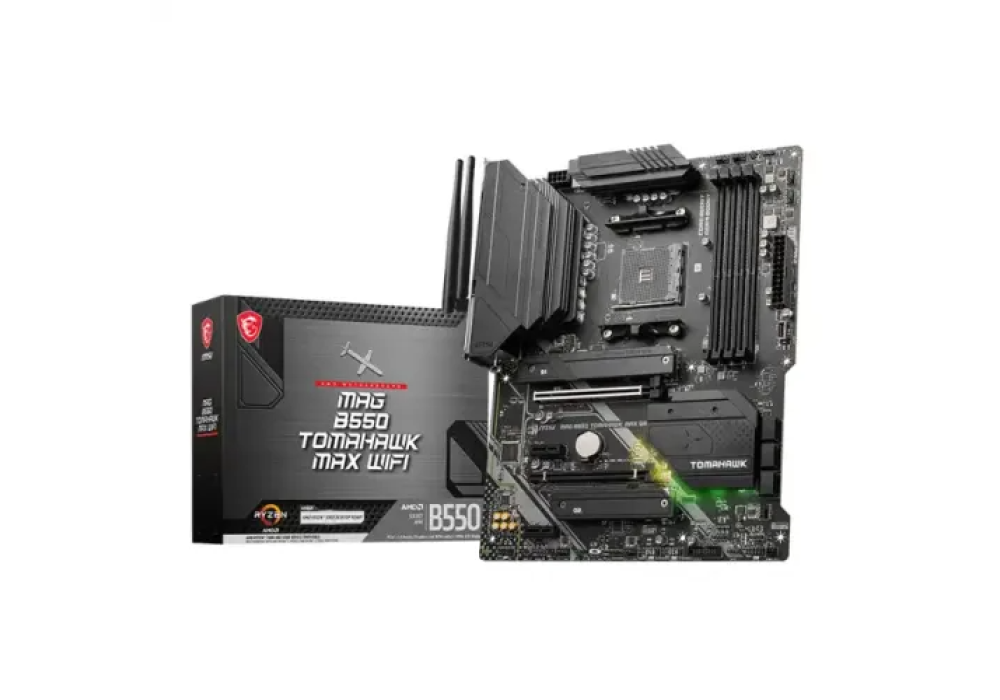

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
MSI MAG B550 TOMAHAWK MAX WIFI Motherboard is a powerhouse built to elevate your gaming and computing experience. Designed to support AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors, it offers impressive versatility. With support for DDR4 Memory up to 5100+(OC) MHz, it delivers rapid and efficient performance. Featuring PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and AMD Turbo USB 3.2 Gen 2, it ensures lightning-fast game experiences. The MSI MAG B550 TOMAHAWK MAX WIFI Motherboard's Premium Thermal Solution comprises an Extended Heatsink Design, a choke thermal pad rated for 7W/mk, and a PCB with 2oz thickened copper, perfect for high-performance systems and uninterrupted gaming sessions. The Enhanced Power Design includes a 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, and DDR4 Boost, enhancing overall performance. Its 2.5G LAN and AMD Wi-Fi 6E Solution provide an upgraded network solution for professional and multimedia use, delivering a secure, stable, and fast network connection. The motherboard's pre-installed I/O Shield ensures better EMI protection and easier installation. Audio Boost provides studio-grade sound quality for an immersive gaming experience, while Multi-GPU support with Steel Armor PCI-E slots allows for AMD Crossfire configurations. The MSI MAG B550 TOMAHAWK MAX WIFI Motherboard is a robust and feature-rich choice for discerning gamers and power users.
