MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
-10 %
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
  • Stock: In Stock
  • Model: B650M PROJECT ZERO
24,699৳
27,500৳
Key Features
    • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, up to 7600+(OC) MHz
    • Graphics Output: 1x HDMI, 1x Display Port
    • Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
General
Type DDR5
Basic Information
Supported CPU Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5
Chipset AMD X670
Form Factor ATX, 243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI 1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Memory Size 128GB
Slots 4 DIMMs
Supported Memory Type 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

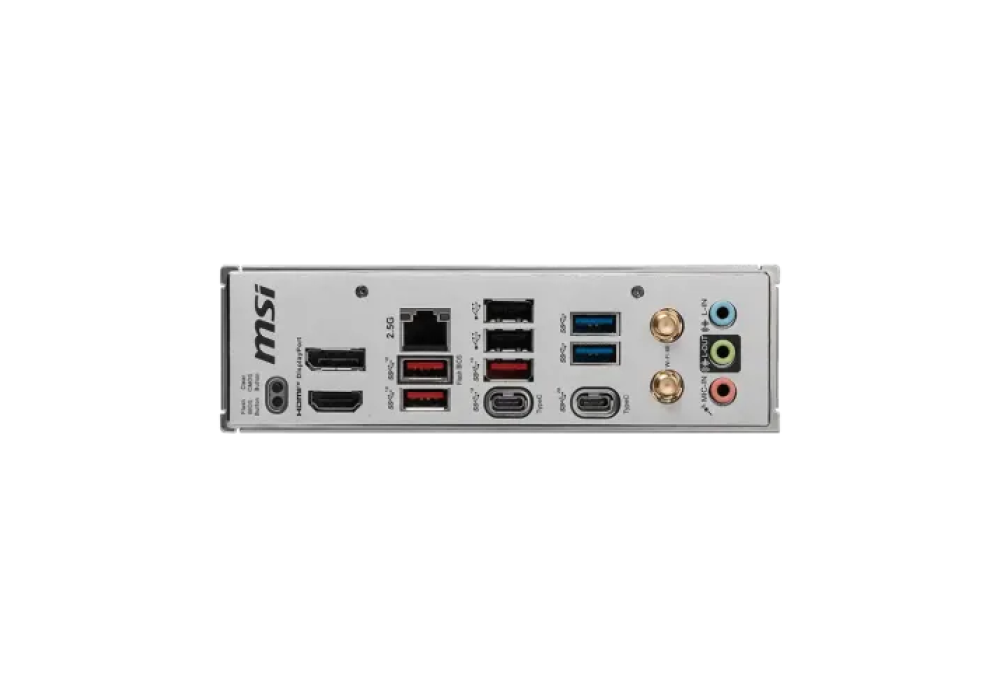

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort, 1x Type-C DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Audio 3 x audio jacks
Internal I/O Ports INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics 1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Others Information
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

MSI B650M PROJECT ZERO AM5 is a micro-ATX motherboard intended to fulfill the needs of professional and multimedia users. It is designed specifically for AMD Ryzen 8000/7000 Series Desktop Processors and supports DDR5 memory with a maximum overclocking frequency of 7600+ MHz, providing effective multitasking and data processing. Its superior thermal technology, which includes Extended Heatsink Design and M.2 Shield Frozr, avoids thermal throttling and ensures peak performance under demanding workloads. The motherboard enhances the network experience with 2.5G LAN and AMD Wi-Fi 6E, providing safe, stable, and fast connectivity for professional jobs and multimedia applications. Lightning M.2 technology for PCIe Gen 4 SSD performance, Lightning USB 20G with a 3.2 Gen 2x2 connector for 20Gbps data transfer speeds, and Audio Boost for studio-quality sound. The back-connect style improves aesthetics while simplifying wire management. Memory Boost technology assures pure data signals for peak performance, stability, and compatibility, while the Lightning Gen4 Solution provides up to 64GB/s of bandwidth for maximum transfer speed. The M.2 Shield Frozr thermal device protects M.2 SSDs from throttling and improves storage performance. The motherboard has Wi-Fi 6E, which supports the 6GHz band, MU-MIMO, and BSS color technology, allowing wireless speeds of up to 2400Mbps. With a premium 2.5G LAN, it provides an excellent network experience. In summary, the MSI B650M PROJECT ZERO AM5 is a feature-rich platform that combines sophisticated technology and luxury materials to provide a high-performance computing experience customized to the demands of demanding users, whether they are doing professional activities or enjoying entertainment.
