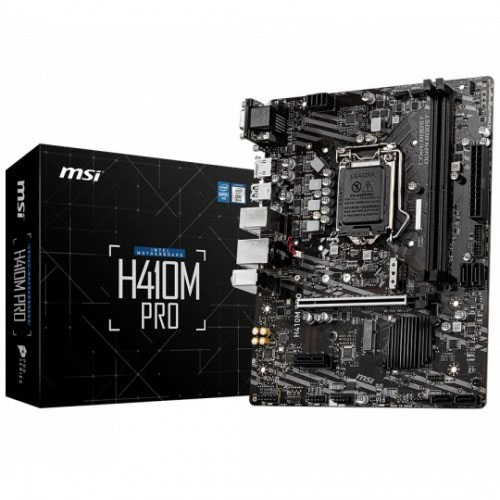

MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard

MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
Up Coming
MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
  • Stock: Up Coming
  • Brand: MSI
  • Model: MSI H410M Pro
  • Product ID: 4430
0৳

Key Features

    • Supports 10th Gen Intel Core Pentium Gold and Celeron processors for LGA 1200 socket
    • Supports DDR4 Memory up to 2933Max MHz
    • Core Boost DDR4 Boost Turbo M.2
    • 4x SATA 6Gb s ports 1x M.2 slot
অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356
Basic Information
Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset Intel H410
Form Factor Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Expansion Slots
PCI 1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket 1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
1x M.2 slot with E key for WiFi module only
Memory Specifications
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Intel Core i7/ i9
-Supports up to DDR4 2933 MHz
Intel Core i5 and below
-Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Max. Memory 64GB
Connector & Ports
HDMI 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz
USB (s) Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V Gigabit LAN controller
Supported Storage Intel H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
TPM (Trusted Platform Module ) 1 x TPM module connector
DVI-D (s) 1x DVI-D port, maximum resolution of 1920x1200 @60Hz
Graphics
Graphics 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory 1GB
Others Information
Special Features LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years

MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
