- Stock: In Stock
- Model: B650 GAMING PLUS WIFI
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5 6000+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution
| General | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Socket AM5 |
| Chipset | AMD X670 |
| Form Factor | ATX, 243.84mmx304.8m |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset |
| Memory Specifications | |
| Memory Size | 192GB |
| Slots | 4 DIMMs |
| Supported Memory Type | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz > Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

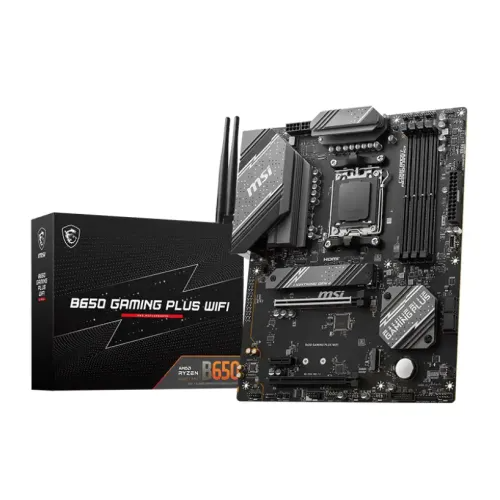

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard supports AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 memory, allowing for dual-channel DDR5 operation at speeds of 6000+MHz (OC). The motherboard features an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. It also incorporates a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems. The MSI B650 GAMING PLUS WIFI Motherboard provides lightning-fast gaming experiences with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. It also includes a 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities, delivering a secure, stable, and fast network connection. The MSI B650 GAMING PLUS WIFI motherboard is built with a high-quality PCB, featuring a 6-layer design made with 2oz thickened copper for durability and reliability. It supports Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience.
Quick Compare
Comparison of B650 GAMING PLUS WIFI vs B850M FORCE WIFI6E vs B650 UD AX vs B850M D3HP which are most simmiler.
| Product | MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard | Gigabyte B850M FORCE WIFI6E AMD Motherboard | GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard | GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | B650 GAMING PLUS WIFI | B850M FORCE WIFI6E | B650 UD AX | B850M D3HP |
| Brand | MSI | Gigabyte | Gigabyte | Gigabyte |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 1 reviews. |
Based on 1 reviews. |
| Summary | MSI B650 GAMING PLUS WIFI AMD AM5 MotherboardMSI B650 GAMING PLUS WIFI AMD AM5 Motherboard supports AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 memory, allowing for dual-channel DDR5 operation at speeds of 6000+MHz (OC). The motherboard features an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. It also incorporates a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems. The MSI B650 GAMING PLUS WIFI Motherboard provides lightning-fast gaming experiences with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. It also includes a 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities, delivering a secure, stable, and fast network connection. The MSI B650 GAMING PLUS WIFI motherboard is built with a high-quality PCB, featuring a 6-layer design made with 2oz thickened copper for durability and reliability. It supports Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience... | Gigabyte B850M FORCE WIFI6E AMD MotherboardGigabyte B850M FORCE WIFI6E is a high-performance Micro ATX motherboard designed for AMD Socket AM5 processors, supporting the latest Ryzen 9000, 8000, and 7000 series CPUs. Built on the AMD B850 chipset, this board offers robust memory, storage, and connectivity options to create a versatile and future-ready PC. It supports DDR5 memory up to 9600(OC) MT/s across 2 DIMM slots, accommodating up to 128GB of system memory with dual-channel architecture and AMD EXPO and XMP overclocking profiles for optimized performance. Graphics capabilities include integrated AMD Radeon graphics with HDMI 2.1 and DisplayPort 1.4 support, delivering up to 4K resolution at 60Hz on HDMI and 4K at 144Hz on DisplayPort, ideal for gaming and content creation. Storage options are comprehensive, with three M.2 slots supporting PCIe 4.0/5.0 SSDs and four SATA 6Gb/s connectors, along with RAID 0, 1, 5, and 10 configurations for maximum flexibility. The motherboard integrates MediaTek Wi-Fi 6E and Bluetooth 5.3 for ultra-fast wireless connectivity, complemented by a 2.5GbE LAN port for stable wired networking. The rear panel offers multiple ports, including USB Type-C, USB 3.2 Gen 2, HDMI, DisplayPort, and audio jacks, while internal headers support additional USB and RGB connectivity. Advanced features like Q-Flash Plus, Smart Backup, and GIGABYTE Control Center enhance system management and ease of use. With a sturdy Micro ATX form factor, premium audio via Realtek HD CODEC, and a 3-year warranty, the Gigabyte B850M FORCE WIFI6E is an excellent choice for gamers, professionals, and PC enthusiasts seeking a reliable, high-speed, and feature-rich motherboard for modern AMD systems.FeaturesSupports DDR5 memory up to 9600(OC) MT/s, max 128GB.Compatible with AMD Socket AM5 Ryzen 9000/8000/7000 series CPUs.AMD B850 chipset for stable performance.Integrated AMD Radeon graphics with HDMI 2.1 & DisplayPort 1.4.3 x M.2 slots and 4 x SATA 6Gb/s ports for storage expansion.Supports RAID 0, 1, 5, and 10.Wi-Fi 6E (MediaTek MT7902) and Bluetooth 5.3.2.5GbE LAN for high-speed wired networking.Multiple USB ports including Type-C, USB 3.2 Gen 1 & Gen 2, and USB 2.0.Realtek HD Audio CODEC, supports 2/4/5.1/7.1-channel output.PCIe x16 & x4 slots for graphics cards or NVMe SSDs.Advanced features: Q-Flash Plus, Smart Backup, and GIGABYTE Control Center.Micro ATX form factor, easy to fit in compact cases.3-year warranty for reliable usage... | GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard Price in BD The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard is a high-performance and future-ready motherboard designed to support next-generation AMD Ryzen processors with AM5 socket compatibility—all at a competitive Price in BD. Built for gamers, creators, and PC enthusiasts, this motherboard delivers stable power delivery, lightning-fast memory support with DDR5, and robust connectivity options to handle demanding workloads and high-speed data transfer. Featuring Armor-enhanced PCIe slots, multiple M.2 connectors with thermal guards, and premium audio components, the B650 UD AX offers a solid foundation for high-end gaming rigs and productivity setups alike. With built-in Wi-Fi 6E and 2.5G LAN support, you’ll enjoy fast, reliable network performance for online gaming, streaming, and large file transfers. The ATX form factor provides flexibility for expansion cards, cooling solutions, and custom builds. Whether you’re upgrading your system or building a new high-performance PC, the GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard combines durability, speed, and versatility in one package. If you’re looking for a dependable and feature-rich motherboard with clear Price in BD, this model offers excellent value and future scalability. Features AMD AM5 socket with support for Ryzen 7000 and future processors DDR5 memory support for faster performance and responsiveness Built-in Wi-Fi 6E for ultra-fast wireless networking 2.5G LAN for stable high-speed wired connection Multiple M.2 slots with thermal guards for SSD cooling Armor-enhanced PCIe slots for GPU protection and stability High-Speed Connectivity and Performance The GIGABYTE B650 UD AX delivers fast networking and data transfer thanks to Wi-Fi 6E and 2.5G LAN support. With DDR5 memory support, the motherboard unlocks improved responsiveness and performance for gaming, creative workflows, and multitasking. Reliable Build Quality Designed with premium components and enhanced PCIe slot armor, this motherboard ensures system stability and reliability under heavy usage. The inclusion of thermal guards on M.2 slots also helps maintain optimum SSD performance. Why Choose GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard? The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard stands out with its future-proof AM5 socket, DDR5 memory support, and robust connectivity including Wi-Fi 6E and 2.5G LAN. It is ideal for gamers and creators seeking a balance of performance, stability, and scalability. The motherboard’s multiple M.2 slots and premium build ensure excellent upgrade paths for storage and graphics. For users building or upgrading a high-performance PC at a competitive Price in BD, this motherboard offers durability, advanced features, and versatility. Benefits of the Product Supports next-gen AMD processors for future upgrades Enhances system speed with DDR5 memory support Provides fast and stable networking with Wi-Fi 6E and 2.5G LAN Improves storage performance with multiple M.2 slots Ensures durability with armor-reinforced PCIe slots Excellent value with competitive Price in BD FAQ Q1: Which processors are compatible with this motherboard?A1: It supports AMD AM5 socket processors, including Ryzen 7000 series and future compatible CPUs. Q2: Does it support DDR5 memory?A2: Yes, this motherboard supports DDR5 RAM for faster system performance. Q3: Does it have built-in Wi-Fi?A3: Yes, the GIGABYTE B650 UD AX includes built-in Wi-Fi 6E for fast wireless connectivity... | GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard The GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is a powerful and future-ready platform built to support the latest AMD Ryzen processors, including the Ryzen 9000, 8000, and 7000 series via the AM5 socket. With support for cutting-edge DDR5 memory, this motherboard enables blistering-fast memory speeds of up to 8200 MHz (OC), offering a performance edge for gaming, productivity, and demanding workloads. Built on the AMD B650 chipset, the B850M D3HP brings exceptional I/O flexibility and expandability. It supports dual M.2 PCIe SSDs one up to PCIe 5.0 speeds and another up to PCIe 4.0 alongside four SATA ports, giving users multiple storage configuration options. RAID support for both NVMe and SATA storage ensures data protection and performance tuning. Graphics are no less impressive, with onboard HDMI 2.1 and dual DisplayPort 1.4 outputs capable of up to triple 4K or high-refresh displays, thanks to integrated AMD Radeon Graphics (depending on CPU). The GIGABYTE B650M D3HP motherboard price in BD starts from approximately20,000৳ to 30,000৳, depending on stock availability and warranty options. Onix Computer offers genuine products, full warranty support, and fast delivery across Bangladesh, making it a reliable source for purchasing this feature-rich and future-ready motherboard. This pricing makes it an excellent choice for gamers, content creators, and professional PC builders seeking a balance between performance and affordability. GIGABYTE B850M D3HP AMD Motherboard Features The GIGABYTE B850M D3HP is a feature-rich motherboard built for AMD Socket AM5, supporting Ryzen 7000, 8000, and 9000 series processors. Designed for gamers, content creators, and professional PC builders, it delivers high-speed performance, advanced connectivity, and future-ready compatibility. Next-Gen AMD AM5 Support: Compatible with AMD Ryzen 7000, 8000, and 9000 series processors, enabling powerful computing performance for gaming, content creation, and professional workloads. DDR5 Memory Support: Offers 4 DIMM slots supporting up to 256GB DDR5 memory, including AMD EXPO and XMP profiles, allowing fast multitasking and high-frequency overclocking. Advanced PCIe Expansion: Features 1 x PCIe 5.0 x16 slot for GPUs and PCIe 4.0/3.0 slots for expansion cards, providing flexibility for graphics, storage, and other peripherals. High-Resolution Graphics: Integrated AMD Radeon graphics support triple-display setups via HDMI 2.1 (4096x2160@60Hz) and DisplayPort 1.4 (3840x2160@144Hz). Comprehensive Connectivity: Multiple USB ports (Type-C, USB 3.2 Gen 1, USB 2.0), RJ-45 LAN, and 3 audio jacks ensure seamless connection with peripherals and network. Storage Options: 2 x M.2 connectors and 4 x SATA 6Gb/s ports support NVMe SSDs and SATA drives for high-speed storage solutions. User-Friendly Features: Includes Q-Flash Plus for easy BIOS updates, GIGABYTE Control Center (GCC), TPM support, Smart Backup, RGB headers, and bundled Norton Internet Security for enhanced usability. With a 3-year warranty, the GIGABYTE B850M D3HP combines performance, reliability, and advanced features for next-generation AMD-based PC builds. Why Should You Buy a GIGABYTE B650M D3HP Motherboard From Onix Computer? If you are planning to purchase a GIGABYTE B650M D3HP, Onix Computer is one of the best places to buy from in Bangladesh. They offer 100% genuine GIGABYTE motherboards with reliable build quality and advanced features suitable for gaming, content creation, and professional PC builds. Every GIGABYTE B650M D3HP from Onix Computer ensures strong performance, next-gen compatibility, smooth multitasking, and upgrade-friendly hardware designed for AM5 processors. Key highlights include DDR5 RAM support, PCIe 4.0 expansion, fast NVMe M.2 storage, efficient power delivery, and enhanced connectivity options. Onix Computer provides high-quality products at competitive prices. They also offer full warranty support, fast delivery across Bangladesh, and a seamless online shopping experience. With expert guidance from their team, you can easily choose the perfect B650M D3HP motherboard for your gaming PC, workstation, or productivity setup. Whether you're looking for latest motherboard price in BD, AM4 motherboard price in BD, or Gigabyte AM4 motherboard price in BD, Onix Computer ensures trusted service and attractive deals. Visit the nearest Onix Computer showroom or browse their online store to explore the latest GIGABYTE motherboards, get the best offers, and enjoy excellent customer support. We also sell Gigabyte B840M DS3H. What is the price of GIGABYTE B650M D3HP in Bangladesh? The GIGABYTE B650M D3HP price in Bangladesh starts from around ৳20,000. Where can I buy the GIGABYTE B650M D3HP in Bangladesh? You can buy it from Onix Computer with genuine products, warranty, and fast delivery. Does it support DDR5 RAM? Yes, it supports DDR5 memory up to 192GB with 4 DIMM slots. Which processors are compatible? Supports AMD AM5 Ryzen 7000 and 8000 series processors. What ports are available? Includes HDMI, 2 DisplayPorts, USB Type-C, USB 3.2/2.0 ports, LAN, and 3 audio jacks... |
