Model: B560M PRO-E
View More Info...
Chat Through
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel B560 chipset |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Form Factor | mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
| Memory Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory Type | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Audio | 1x Front panel audio connector |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| Warranty | 03 years warranty |

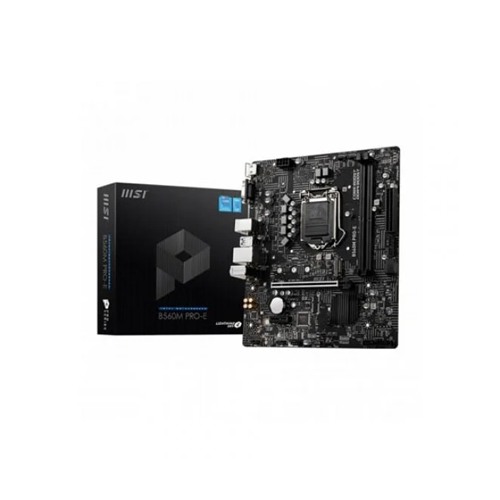

Meet The MSI B560M PRO-E Motherboard! A Part Of The Professional Series By MSI, Users Can Work Smarter By Being Provided An Efficient And Productive Experience. Featuring Stable Functionality And High-Quality Assembly, PRO Series Motherboards Provide Not Only Optimized Professional Workflows But Also Less Troubleshooting And Longevity. Features Include Core Boost, Audio Boost, DDR4 Boost, And Lightning Gen 4 Solution. Lighter Than Most B560 Models On Features, This Is Often Far And Away From The Foremost Basic Of MSI's B560 Stack. Within The Center Of The Board May Be A Single Full-Length PCIe 4.0 X16 Slot, With A Further PCIe 3.0 X1 Slot. Storage Options Include One PCI 4.0 X4 M.2 Slot, With Four SATA Ports With RAID 0, 1, 5, And 10 Support. Within The Top-Right Hand Corner Maybe A Pair Of Memory Slots, With Support For Up To DDR4-4800, And A Maximum Capacity Of 64 GB.
MSI B560M PRO E Motherboard Provides Many Thermal Solutions! Frozr AI Cooling Detects CPU & GPU Temperatures And Automatically Adjusts System Fans To Make Sure Your System Is Kept Cool. Choose Between Performance Mode, Silent Mode, And Manual Mode!
MSI B560M PRO E Motherboards Features Many Options For Your Needs. Stable LAN, Faster Storage And USB Transfer Speeds, And Other Connectors Are Ready For You To Enlarge Your Flexibility. Stay Connected With Intel LAN, Optimized For Stable Internet Throughput Ideal For Championship Level Online Plays.
MSI B560M PRO E Motherboard Designed To Satisfy Any Professional Workflow, MSI Motherboards Allow You To Enjoy Enhancing Tools That Are Easy To Use. MSI Lightning Gen 4 PCI-E Is That The Latest And Therefore The Fastest PCI-E Data Transfer Solution With 64GB/S Of Transfer Bandwidth That Has Doubled Compared To Its Previous Generation. MSI B560M PRO E Motherboard DDR4 Boost Provides Extreme Stability And Compatibility, While Core Boost Combines MSI's Premium Layout And Optimized Power Design Which Allows For Faster And Undistorted Current Delivery To The CPU At Pin-Point Precision.
