-19 %

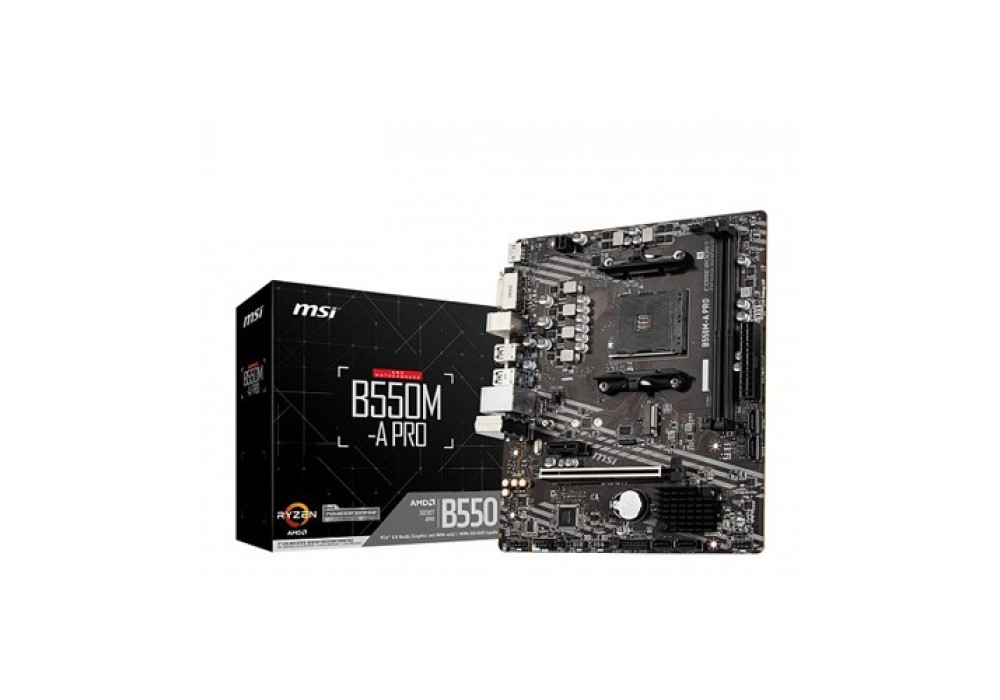

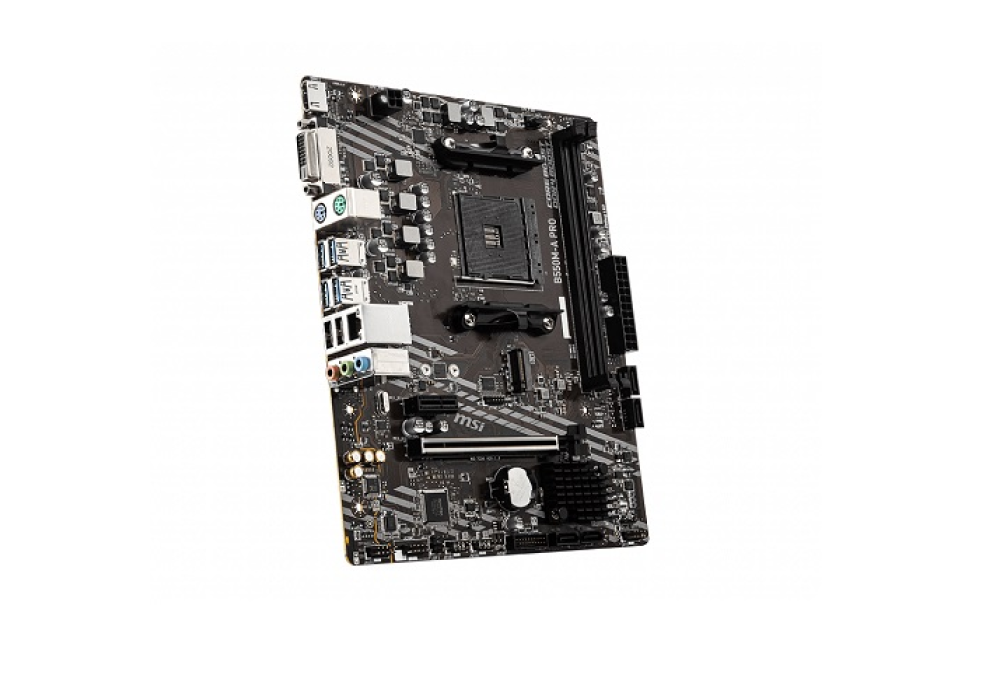

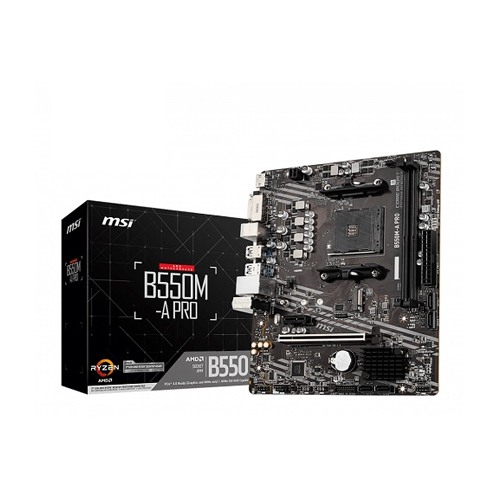

MSI B550M-A PRO AM4 Micro ATX AMD Motherboard
- Stock: In Stock
- Model: B550M-A PRO
10,900৳
13,420৳
Key Features
- Supports AMD Ryzen 5000 & 3000 Series desktop processors
- Supports DDR4 4600(OC)MHz
- PCIe 4.0, Lightning Gen4 x4 M.2
- 2oz Thickened Copper PCB
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
| General | |
| Type | DDR4 |
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Audio | Realtek ALC892/ALC897 Codec |
| Expansion Slots | |
| PCI | PCI-E X16 x 1 PCI-E (Gen4 / Gen3) |
| Memory Specifications | |
| Memory Size | 64GB |
| Slots | 4x DIMM |
| Supported Memory Type | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort, 1x Type-C DisplayPort |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Graphics | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
MSI B550M-A PRO AM4 Micro ATX AMD Motherboard
MSI B550M A PRO AM4 Micro ATX AMD Motherboard Supports AMD Ryzen 5000 3000 Series desktop processors not compatible with AMD Ryzen 5 3400G Ryzen 3 3200G and AMD Ryzen 4000 G Series desktop processors Supports DDR4 Memory up to 4600 OC MHz It has a premium layout and digital power design to support more cores and provide better performance Made with 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability For the superior sound quality it has studio-grade sound quality All new dragon center software which integrates all MSI exclusive tools with the user-friendly user interface.
Quick Compare
Quick Compare
Comparison of B550M-A PRO vs PRIME A520M-A II vs PRO A620M-E vs BATTLE-AX B550M-D PRO V14 which are most simmiler.
| Product | MSI B550M-A PRO AM4 Micro ATX AMD Motherboard | Asus PRIME A520M-A II AM4 micro ATX Motherboard | MSI PRO A620M-E DDR5 AMD AM5 mATX Motherboard | Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | B550M-A PRO | PRIME A520M-A II | PRO A620M-E | BATTLE-AX B550M-D PRO V14 |
| Brand | MSI | Asus | MSI | Colorful |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 1 reviews. |
| Summary | MSI B550M-A PRO AM4 Micro ATX AMD MotherboardMSI B550M A PRO AM4 Micro ATX AMD Motherboard Supports AMD Ryzen 5000 3000 Series desktop processors not compatible with AMD Ryzen 5 3400G Ryzen 3 3200G and AMD Ryzen 4000 G Series desktop processors Supports DDR4 Memory up to 4600 OC MHz It has a premium layout and digital power design to support more cores and provide better performance Made with 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability For the superior sound quality it has studio-grade sound quality All new dragon center software which integrates all MSI exclusive tools with the user-friendly user interface... | Asus PRIME A520M-A II AM4 micro ATX MotherboardAsus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience... | MSI PRO A620M-E DDR5 AMD AM5 mATX MotherboardMSI PRO A620M-E AMD AM5 mATX motherboard is compatible with the latest AMD Ryzen 7000 Series desktop processors. With support for DDR5 Memory and Dual Channel DDR5 6000+MHz (OC), the motherboard offers lightning-fast memory speeds and enhanced performance. The Core Boost technology, combined with premium layout and digital power design, ensures optimal power delivery to support more cores and provide better overall performance. The Memory Boost feature delivers pure data signals using cutting-edge technology to ensure the best performance, stability, and compatibility. The Lightning Gen 4 x4 M.2 support and PCIe 4.0 slot, which enable quicker data transfer and shorter loading times, will delight gamers with a lightning-fast gaming experience. The MSI PRO A620M-E Motherboard has Audio Boost, which provides studio-quality sound for a realistic gaming experience. The MSI PRO A620M-E provides better performance, stability, and strength thanks to Steel Armor, which shields VGA cards from bending and EMI interference. This makes it a great option for putting together a powerful gaming setup... | Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard – Stable Ryzen DDR4 Performance for Everyday Builds The Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard is a dependable and versatile platform for AMD Ryzen desktop systems. Featuring the AM4 socket with support for Ryzen 3000/4000/5000 series processors, this board offers solid performance for gaming, productivity, and daily computing. Its B550 chipset enables PCIe 4.0 support for faster storage and graphics card performance, while the DDR4 memory support provides cost-effective and reliable performance. The mATX form factor makes it ideal for compact and efficient PC builds, offering multiple expansion options and essential connectivity when space is at a premium. With quality build components and a balanced feature set, the BATTLE-AX B550M-D PRO V14 is excellent for users seeking a reliable AMD motherboard without unnecessary complexity. Features of Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard Supports AMD Ryzen 3000/4000/5000 series processors DDR4 memory compatibility for efficient performance AM4 socket with B550 chipset support mATX form factor for compact system builds PCIe 4.0 slot for graphics and high-speed storage M.2 NVMe SSD support for ultra-fast storage USB 3.x ports for modern connectivity Reliable DDR4 Performance for Everyday Use This motherboard supports high-speed DDR4 memory which helps deliver smooth multitasking, gaming, and general productivity without needing the more expensive DDR5 memory. Compact Form Factor with Expandability The mATX layout ensures you can build efficient, smaller PCs without compromising on essential performance and expansion capabilities. Why Choose Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard? Choose this motherboard for a balanced and cost-efficient AMD system that supports a wide range of Ryzen CPUs and DDR4 memory. Its modern features, including PCIe 4.0 support and versatile connectivity options, make it a great choice for mainstream users and gamers in Bangladesh. Benefits of Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard Broad Ryzen CPU compatibility Cost-effective DDR4 memory platform High-speed PCIe 4.0 support Compact mATX design Flexible storage and connectivity options Frequently Asked Questions (FAQ) Q1: Does this motherboard support Ryzen 5000 series CPUs?A1:Yes, it supports AMD Ryzen 3000/4000/5000 series processors.Q2: What type of memory does this board use?A2:It uses DDR4 memory modules.Q3: Can I install NVMe SSDs on this motherboard?A3:Yes, it includes M.2 slots that support NVMe SSDs... |
