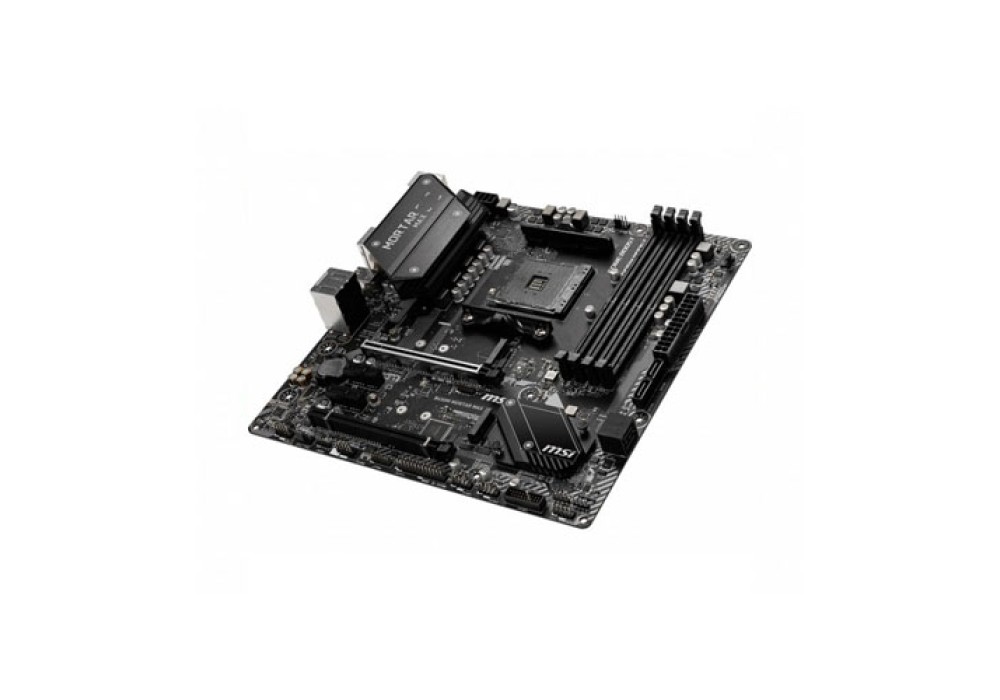

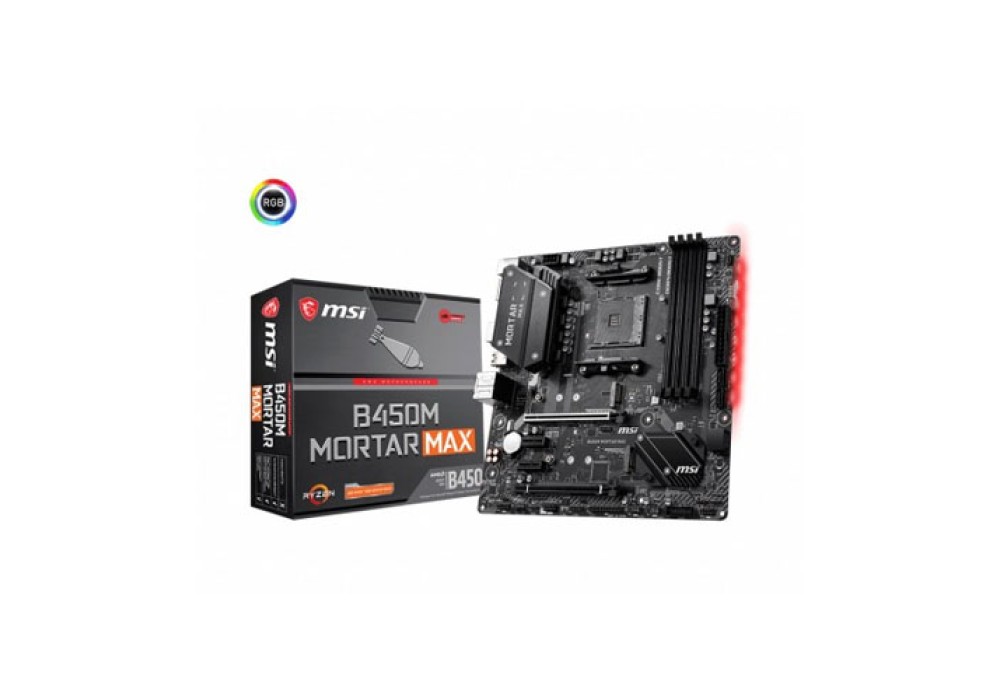

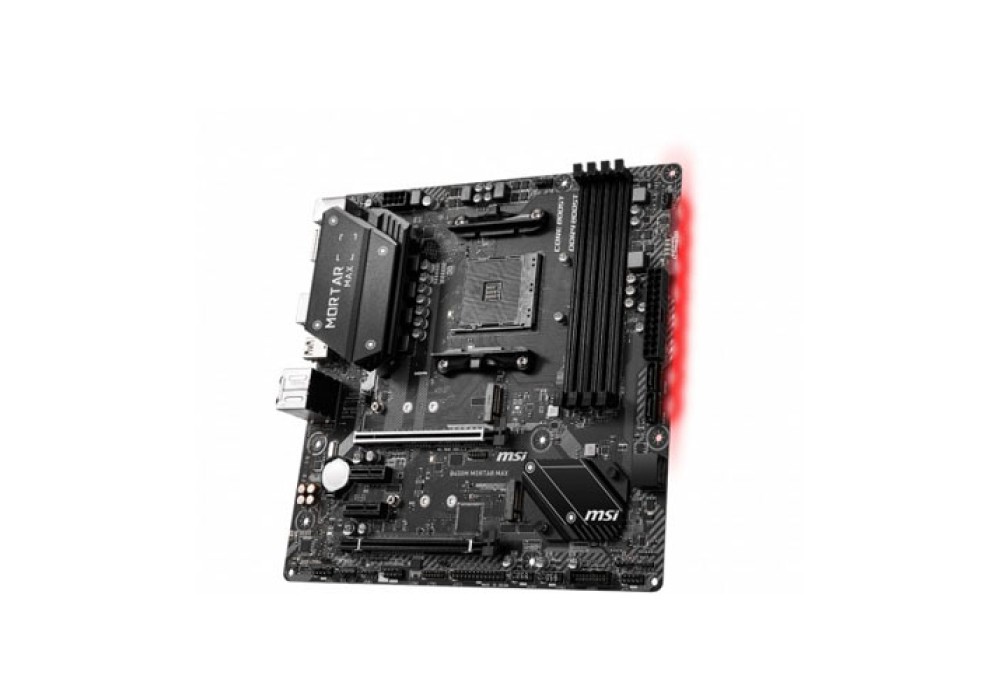

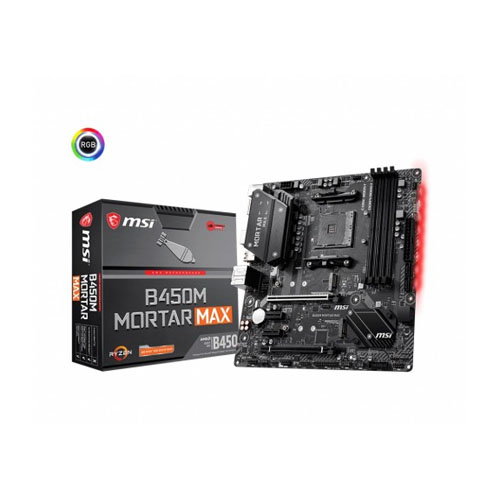

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard

Basic Information
Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD
Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors
for Socket AM4
Chipset AMD B450 Chipset
BIOS Flash BIOS Button
Form Factor M-ATX Form Factor
Audio Realtek ALC892 Code:
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
Graphics
Graphics Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with
Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
Max Shared Memory Maximum shared memory of 2048 MB
Memory
Type DDR4
Slots - 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
- Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with
Radeon Graphics processors
- Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
- 2 x PCIe 2.0 x1 slots
Supported Memory - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
Maximum Memory - support up to 64GB
Expansion Slots
PCI - 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
- Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with
Radeon
Graphics processors
- Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
- 2 x PCIe 2.0 x1 slots2
M.2 Socket AMD B450 Chipset:
- 1 x M.2 slots (M2_2, Key M)1
- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD CPU:
- 1x M.2 slot (M2_1, Key M)1
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics
and 2nd Gen (AMD
Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA
6Gb/s 2242/
2260 /2280 storage devices
Connector & Ports
HDMI 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
DVI-D (s) Yes
USB (s) AMD B450 Chipset:
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available
through the internal USB 2.0 connectors) AMD CPU
AMD Processor:
- 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s) 1 x Realtek RTL8111H-CG Gigabit LAN controller
Supported Storage AMD B450 Chipset:
- 4 x SATA 6Gb/s ports1
- 1 x M.2 slots (M2_2, Key M)1
- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD CPU:
- 1x M.2 slot (M2_1, Key M)1
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics
and 2nd Gen AMD
Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and
SATA 6Gb/s 2242/
2260 /2280 storage devices
Audio - 7.1-Channel High Definition Audio
- Supports S/PDIF output
Internal I/O Ports 1 x 24-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
3 x 4-pin system fan connectors
2 x 5050 RGB LED strip 12V connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Serial Port connector
1 x Parallel Port connector
Others
Special Features RAID: AMD B450 Chipset
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe RAID
Warranty Information
Manufacturing Warranty 03 Years Warranty

FEATURES:

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard

This MSI B450M MORTAR MAX Military Style Gaming Motherboard is comes with Flash BIOS Button, PS/2 Combo Port, USB 3.2 Gen1, USB 3.2 Gen2 (Type A+C), Golden audio jacks with S/PDIF, Arsenal Sticker Area which is Free for customization with personal style, Extended Heatsinks Design which is Leading heatsink design and extended for maximum cooling and performance, Heavy plated gaming heatsinks which Military style designed for maximum cooling, DDR4 Boost which can Optimized traces and isolated memory circuitry, Turbo M.2 which Delivering speeds up to 32 Gb/s using Gen3 x4, PCI-E Steel Armor that protecting VGA cards against bending and Audio Boost that optimized gaming audio using best compon. This MSI B450M MORTAR MAX Military Style gaming motherboard designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. This MSI B450M MORTAR MAX Military Style motherboards feature with tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are disposal to push your system to new heights and satisfy even the most demanding tweaker.
