Model: B450 TOMAHAWK MAX II
View More Info...
Chat Through
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x1 slots |
| Memory Type | DDR4 |
| Slots | 4 x DDR4 memory slots |
| Supported Memory Type | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Max. Memory | 128GB |
| HDMI | 1 x HDMI 2.1 port |
| USB (s) | AMD B450 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD B450 4 x SATA 6Gb/s ports |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
| DVI-D (s) | 1 x DVI-D port |
| Graphics | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz |
| Max Shared Memory | 16GB |
| Manufacturing Warranty | 03 years warranty |

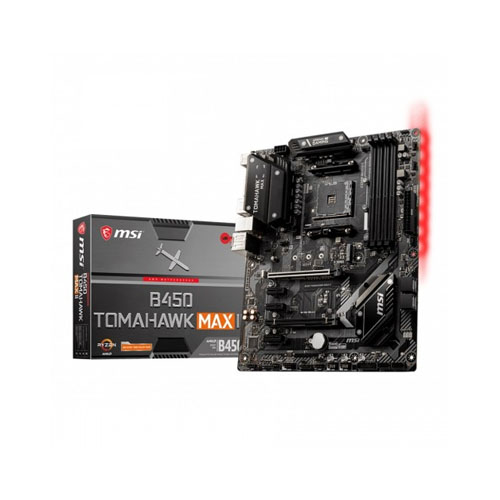

MSI B450 TOMAHAWK MAX Motherboard Supports 1st, 2nd And 3rd Gen AMD Ryzen / Ryzen With Radeon Vega Graphics And 2nd Gen AMD Ryzen™ With Radeon™ Graphics / Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4, Supports DDR4 Memory, Up To 4133(OC) MHz. Extended Heatsink Design: MSI Extended PWM Heatsink And Enhanced Circuit Design Ensures Even High-End Processors To Run In Full Speed. Lightning Fast Game Experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI Technology. Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance. DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Gaming Performance And Stability. MULTI-GPU: Supports 2-Way AMD Crossfire™. By STEEL ARMOR PCI-E Slot & STEEL PCI-E Slot. Audio Boost: Reward Your Ears With Studio Grade Sound Quality For The Most Immersive Audio Experience. Flash BIOS Button: Simply Use A USB Key To Flash Any BIOS Within Seconds, Without Installing A CPU, Memory Or Graphics Card.
With More Cores’ Processors, Thermal And Power Design Is More Important To Make Sure The Temperature Keeps Lower. MSI Extended PWM Heatsink And Enhanced Circuit Design Ensures Even High-End CPU To Run In Full Speed With MSI Motherboards
MSI B450 TOMAHAWK MAX Motherboards Support All The Latest Storage Standards, Which Allows Users To Connect Any Ultra-Fast Storage Device. Higher Efficiency Makes Your Work Easier.
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
