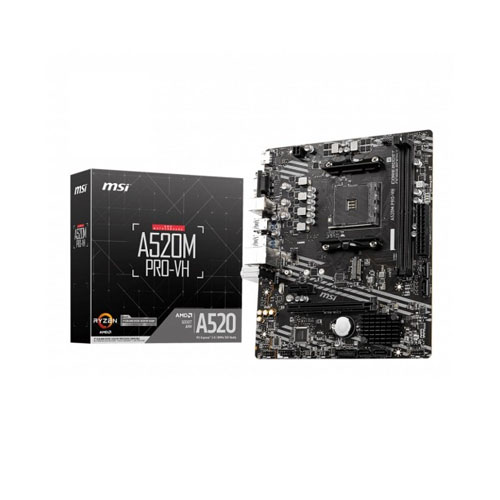

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

Out of Stock

Model: A520M PRO-VH

Key Features

Supports Ryzen 5000 and 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 4600(OC) MHz
Core Boost and DDR4 Boost
2oz Thickened Copper PCB

View More Info...

(0 reviews)

0৳

Chat Through

Specification

Basic Information

Supported CPU	AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD A520 Chipset
Form Factor	mATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio	Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCIe 3.0 x1 slot 1x PCIe 3.0 x16 slot
M.2 Socket	1x M.2 slot (Key M) (from AMD Processor)

Memory Specifications

Memory Type	Dual-channel memory architecture
Slots	2x DDR4 memory slots
Supported Memory Type	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Max. Memory	64GB

Connector & Ports

HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H LAN controller
Supported Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper

Graphics

Graphics	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Max Shared Memory	16GB

Warranty Information

Manufacturing Warranty

03 Years Warranty

Description

FEATURES:

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processorss
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
