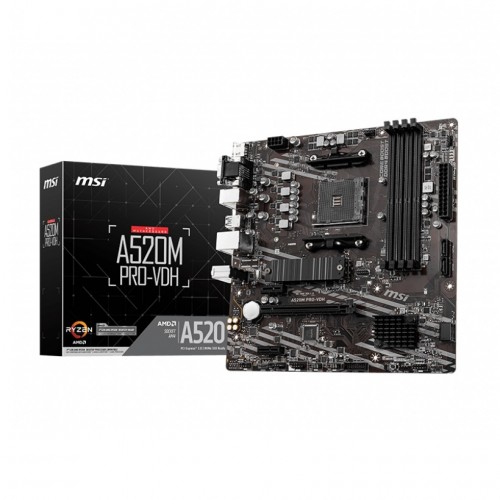

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
Up Coming
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
  • Stock: Up Coming
  • Model: A520M PRO-VDH
MSI MSI
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supports Ryzen 5000 and 3000 Series and Ryzen 4000 G-Series processors
    • Supports DDR4, up to 4400(OC) MHz
    • M.2 Shield Frozr and Turbo M.2
View more info...
Specification
Basic Information
Supported CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520 Chipset
Form Factor mATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 2x PCIe 3.0 x16 slots
1x PCIe 3.0 x1 slot
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor)
Memory Specifications
Memory Type Dual-channel memory architecture
Slots 4x DDR4 memory slots
Supported Memory Type Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3866 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Max. Memory 128GB
Connector & Ports
HDMI 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
Display Port (s) 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s) AMD A520 Chipset:
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors
AMD Processor:
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage AMD A520 Chipset:
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.01
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x Serial port connector
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x Clear CMOS jumper
1x Flash BIOS button
TPM (Trusted Platform Module ) 1x TPM module connector
Graphics
Graphics 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
Support for HDMI 1.4 version, HDCP 1.4 & 2.3
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Max Shared Memory 16GB
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4400(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI exclusive tools with a user-friendly user interface.
