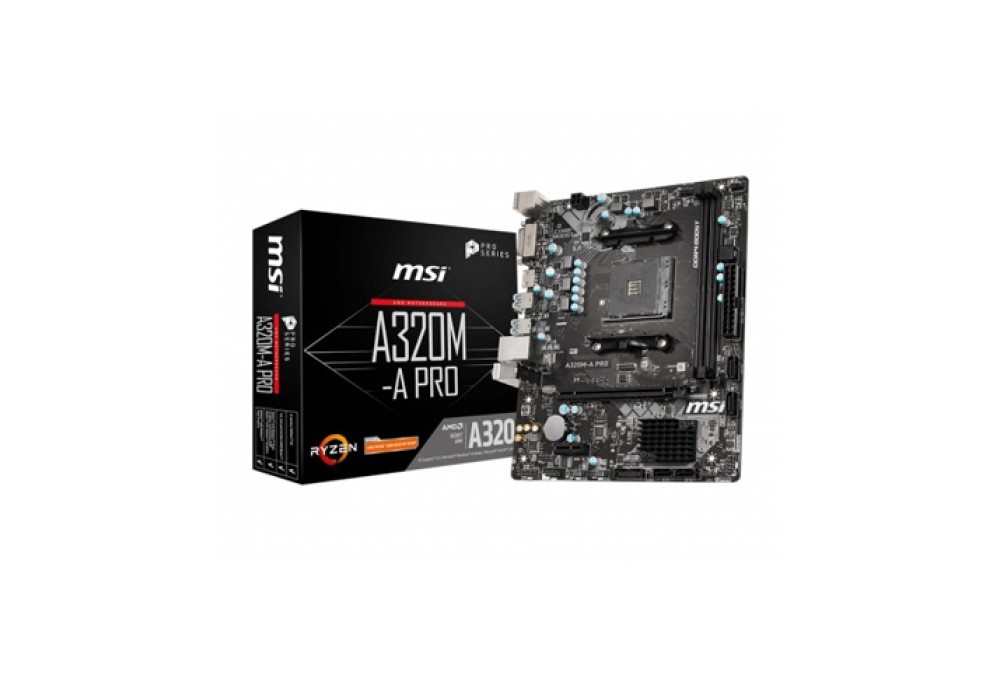

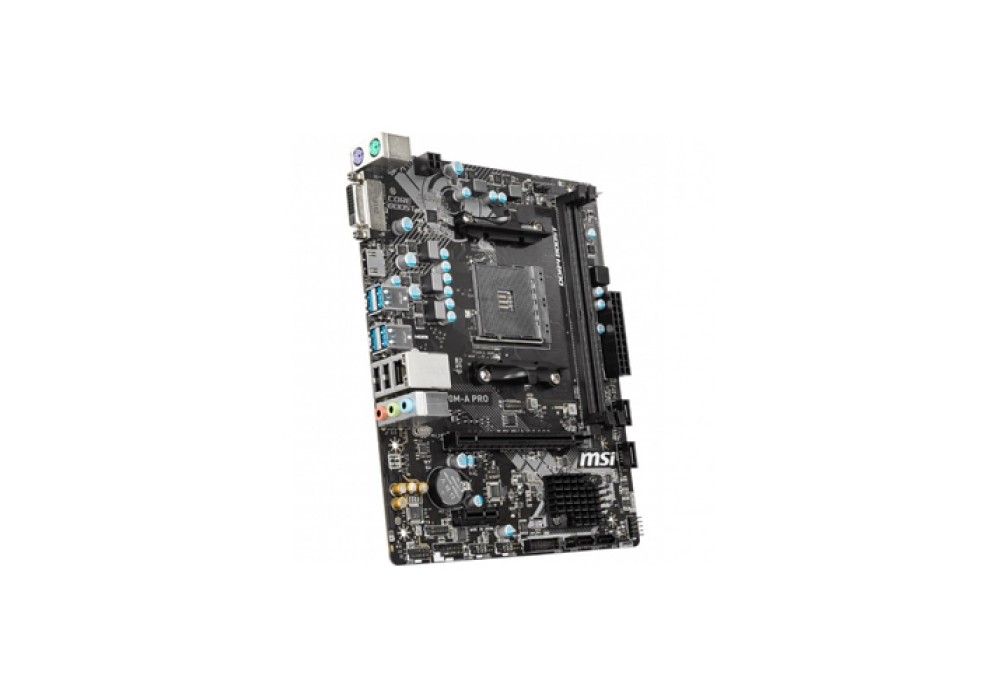

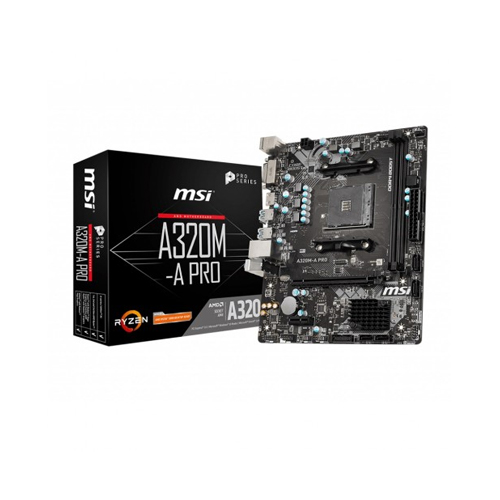

MSI A320M-A Pro AMD Micro-ATX Motherboard

Basic Information
Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset AMD A320 Chipset
Form Factor 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
m-ATX Form Factor
Others PCI: 1 x PCIe 3.0 x16 slot
Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors
Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with
Radeon Graphics processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 2.0 x1 slots
Graphics
Graphics 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
Max Shared Memory GraphicssMaximum shared memory of 2048 MB
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 memory slots
Supported Memory upport 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
Maximum Memory 64GB
Connector & Ports
HDMI 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
DVI-D (s) 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s) AMD A320 Chipset
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available
through the internal connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through
the internal connectors
LAN Port (s) 1 x Realtek 8111H Gigabit LAN controller
Supported Storage AMD A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1 and RAID 10
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

MSI A320M-A Pro Motherboard Price in Bangladesh

MSI motherboards feature tons of accessible and smart design, similar as accessible leg- title keep out zone, friendly SATA & USB position, and so on, so DIY druggies can pick and choose any gaming carriage they want. Cooling is essential for a high- performance PC to sustain violent workloads. PRESTIGE X570 CREATION features a heavy- duty heatsink on the MOSFETs for dependable processor power delivery. Multitudinous addict heads with full addict speed control let builders tune their system cooling the way they like it. MSI motherboards let you manage pets and temperatures for all your system and CPU suckers. Total Fan Control allows you to check your primary system characteristics in a simplified visual interface. You can also set up to 4 temperature targets for CPU and motherboard, which will acclimate the addict pets automatically. Every MSI motherboards are certified by strict handyperson that feature accessible leg- title keep out zone, friendly SATA & USB position for comity with the widest range of factors and bias, so DIY stoner can pick and choose the factors they want. Further than that, we offer a devoted Good Seller List (QVL) for the most critical part- memory. Combining with MSI DDR4 Boost technology, we give the maximum comity, so you confirm and choose any gaming carriage as you want. With times of experience in creating performance enhancing tools that are easy to use, only the loftiest quality operations are at your disposal. Use these tools to get the most out of your motherboard and achieve palm when gaming. Also, we made sure our Memoirs contains all the rearmost options and is easy to use for everyone. The expansive features let you fine- tune your system to deliver dependable maximum performance. MSI motherboards featured all the rearmost result for sucker gamers and prosumers. CPU and memory improvement and fast storehouse and USB transfer speed are ready to be on the battleground. High- quality accoutrements and smart addict optimizations contribute to cooling all essential factors, which is crucial to making sure your system runs stable and delivers the stylish performance at all times. Each MSI motherboard is erected grounded on a specific content in order to match different tastes and favors. Likewise, MSI also adopts the ultramodern style to design the heatsink through huge face and satiny but simple cuts in order to make the heatsink and appearance look ripped and important. Combined with neutral colors, similar as black, slate and tableware, as the main background, MSI motherboard can perfect fit different RGB LED goods and explosively shows the gamers melodies.
