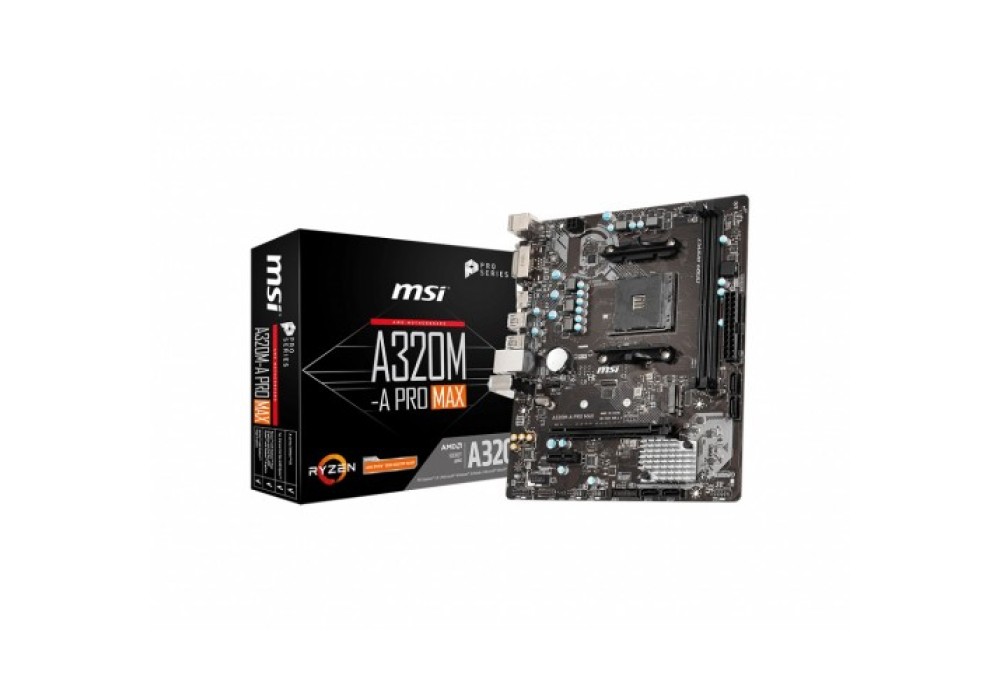

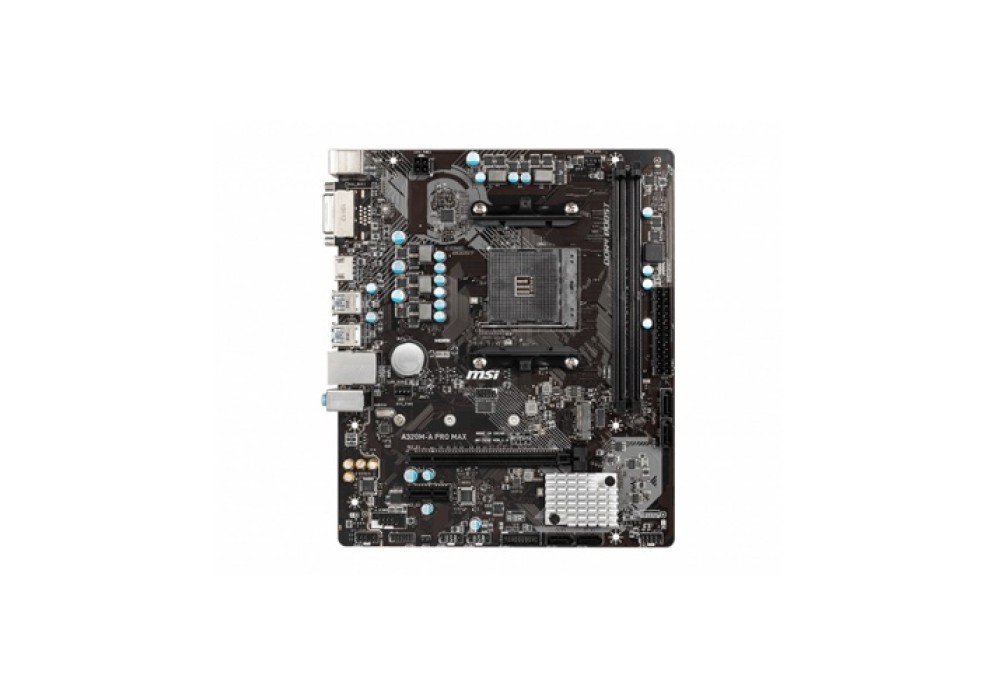

MSI A320M-A Pro Max AMD Motherboard

Basic Information
Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset AMD A320 Chipset
Form Factor m-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
Others PCI: 1 x PCIe 3.0 x16 slot
Supports x16 speed
1st, 2nd and 3rd Gen AMD Ryzen
Supports x8 speed
Ryzen with Radeon Vega Graphics
2nd Gen AMD Ryzen with Radeon Graphics
A-series
Athlon X4
Supports x4 speed
AMD Athlon with Radeon Vega Graphics
PCIe 2.0 x1 slot
M.2 Socket: 1x M.2 slot (Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s
1st, 2nd and 3rd Gen AMD Ryzen
Ryzen with Radeon Vega Graphics
2nd Gen AMD Ryzen with Radeon Graphics
Graphics
Graphics 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with
Max Shared Memory GraphicssMaximum shared memory of 2048 MB
Memory
Maximum Speed 32GB
Type Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Slots 7
Supported Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
Connector & Ports
HDMI 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
DVI-D (s) Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s) AMD A320 Chipset
6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through
the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the
internal USB connectors)
LAN Port (s) 1 x Realtek 8111H Gigabit LAN controller
Supported Storage AMD A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1x M.2 slot (Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s
1st, 2nd and 3rd Gen AMD Ryzen™
Ryzen with Radeon Vega Graphics
2nd Gen AMD Ryzen with Radeon Graphics
Supports PCIe 3.0 x2 and SATA 6Gb/s
AMD Athlon with Radeon™ Vega Graphics
A-series
Athlon X4
Supports 2242/ 2260/ 2280/ 22110 storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
Warranty Information
Manufacturing Warranty 03 Years Warranty

MSI A320M-A Pro Max AMD Motherboard Price in Bangladesh

The MSI A320M-A Pro Max AMD Motherboard MSI motherboards feature tons of accessible and smart design, similar as accessible leg- title keep out zone, friendly SATA & USB position and so on, so DIY druggies can pick and choose any gaming carriage they want. Cooling your PC is essential for dependable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We have made sure to include enough addict heads with full control to allow you to cool your system any way you want. Every MSI motherboards are certified by strict handyperson that feature accessible leg- title keep out zone, friendly SATA & USB position for comity with the widest range of factors and bias, so DIY stoner can pick and choose the factors they want. Further than that, we offer a devoted Good Seller List (QVL) for the most critical part- memory. Combining with MSI DDR4 Boost technology, we give the maximum comity, so you confirm and choose any gaming carriage as you want. With times of experience in creating performance enhancing tools that are easy to use, only the loftiest quality operations are at your disposal. Use these tools to get the most out of your motherboard and achieve palm when gaming. Also, we made sure our Memoirs contains all the rearmost options and is easy to use for everyone. The expansive features let you fine- tune your system to deliver dependable maximum performance. MSI motherboards featured all the rearmost result for sucker gamers and prosumers. CPU and memory improvement and fast storehouse and USB transfer speed are ready to be on the battleground. MSI motherboards featured all the rearmost result for sucker gamers and prosumers. CPU and memory improvement and fast storehouse and USB transfer speed are ready to be on the battleground. MSI motherboards featured all the rearmost result for sucker gamers and prosumers. CPU and memory improvement and fast storehouse and USB transfer speed are ready to be on the battleground. MSI motherboards give the most fascinating in- plant advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and continued online experience. Award your cognizance with plant grade sound quality. MSI Audio Boost delivers the loftiest sound quality through the use of ultraexpensive quality audio factors. This lets you enjoy stirring, plant quality sound to produce the most immersive sound experience. Each MSI motherboard is erected grounded on the specific content in order to match different tastes and favors. Likewise, MSI also adopts the ultramodern style to design the heatsink through huge face and satiny but simple cuts in order to make the heatsink and appearance looks ripped and important. Combined with neutral color, similar as black, slate and tableware, as the main background, MSI motherboard can perfect fit different RGB LED goods and explosively shows the gamers melodies.
