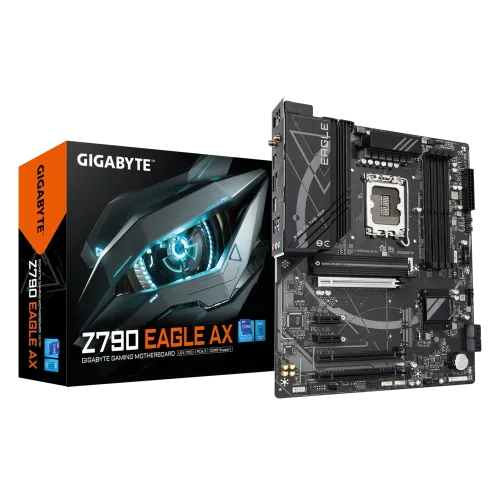

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
Out Of Stock
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
  • Stock: Out Of Stock
  • Model: Z790 EAGLE AX
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E
View more info...
Specification
General
Type DDR5
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Memory Specifications
Memory Size up to 192 GB (48 GB single DIMM capacity) of system memory
Slots 4 x DIMM
Supported Memory Type 14th and 13th Generation Intel Core i9/i7 Pocessors:
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports, available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:

- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Others Information
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 Years
Description

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

GIGABYTE Z790 EAGLE AX motherboard is a high-performance platform ideal for demanding applications like gaming and content production. It is designed to accommodate the latest 14th, 13th, and 12th Gen Intel CPUs using the LGA1700 socket. It provides fast and efficient performance for demanding tasks and multitasking, with four DIMM slots supporting up to 192GB of DDR5 memory and speeds up to 7600 MHz (overclocked). Its display connection options include DisplayPort and HDMI outputs. A strong Twin 12*+1+1 Phases Digital VRM Solution, which offers steady and dependable power delivery and is necessary to sustain performance under high loads, is one of the GIGABYTE Z790 EAGLE AX's key characteristics. Dual-channel DDR5 with XMP 3.0 Memory Modules is supported by the motherboard, enhancing memory performance and stability. With three PCIe 4.0 x4 M.2 connections, there are many storage options and fast data transmission and large storage capacity. In addition to preventing SSD overheating, the M.2 Thermal Guard and sophisticated thermal design guarantee VRM power stability. The quick-release design of the EZ-Latch PCIe 5.0 x16 slot facilitates installation simplicity and makes graphics card upgrades simple. Thanks to Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, networking is dependable and quick. In addition, the motherboard offers a wide range of connectivity choices, such as DisplayPort, HDMI, and a rear USB-C connector that supports 10Gb/s data transmission. With its various temperature sensors and hybrid fan headers with FAN STOP technology, the Smart Fan 6 feature provides sophisticated cooling solutions that are specifically matched to the requirements of the system. The update procedure is made simpler by the Q-Flash Plus function, which enables BIOS upgrades without requiring the installation of the CPU, RAM, or graphics card. For those looking for a reliable and feature-rich motherboard that supports the newest Intel CPUs and cutting-edge technology and offers exceptional performance and dependability for any high-end computing demands, the GIGABYTE Z790 EAGLE AX is a great option.
