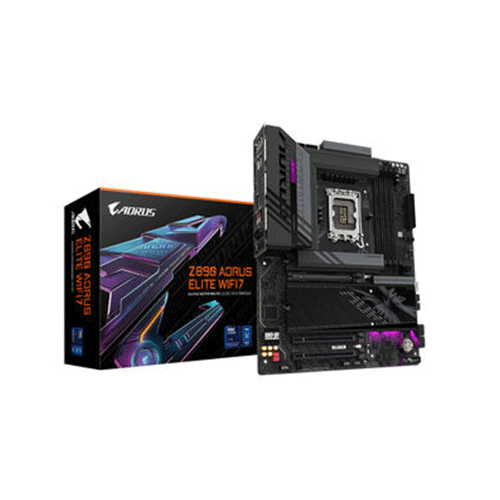

Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard

Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard
-2 %
Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard
  • Stock: In Stock
  • Model: Z890-A-ELITE-WIFI7
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
41,500৳
42,500৳
EMI starts at 14,553৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • CPU Type: Intel Core Ultra (15th Gen)
  • L3/L2 Cache Size: Embedded in CPU
  • Chipset Type: Intel MTP-H (800) / Z890
  • Socket: Intel LGA 1851
View more info...
Specification
Key Features
Storage Spec PCI-E: 5.0 NVMe / PCI-E 4.0 NVMe
Type: 25110 4
General
Color Matte Black
Basic Information
Chipset Intel MTP-H (800) / Z890
Expansion Slots
PCI Yes 1
Processor Basic information
Socket Type Intel LGA 1851
Motherboard
Memory Socket: 4 DIMM
Type: 2-CH DDR5
Frequency: DDR5 5600
Power Specifications
Power Connectors ATX 12 V 2 x 4 Pin 2 / ATX 24 Pin
Connectivity
LAN Controller: Realtek RTL8125
Spec: 2.5 GbE
USB Controller: Integrated in Chipset
Spec: USB 2.0 / USB3.2 Gen1 / USB3.2 Gen2 / USB4
Connector & Ports
Audio CODEC: Realtek ALC1220-VB
S/PDIF Out/In: S/PDIF Out
Channel: 7.1 channel
Graphics
Graphics PCIe Interface: PCI-E 5.0 / x 16 1
Controller: Integrated in CPU
VRAM Size (Optional): Intel DVMT (Dynamic Video Memory Technology)
DirectX Support: DirectX 12
Others Information
Others L3/L2 Cache Size: Embedded in CPU
Phase Architecture: Vcore Phase counts (Twin) 16
MOSFET Type: SmartPowerStage (A)
Flash ROM: 256 Mb (32 MB) SPI
Super I/O: ITE 8696
Layer: 6-layer
2oz Copper PCB: Yes
Controller: Integrated in Chipset
Spec: SATA 6 Gb/s
RAID: RAID 0 / 1 / 5 / 10
Retimer: Hayden Bridge (JHL9040R)
Type: SPI_TPM Pin Header
Front Panel: Yes
Front USB Header: Front USB 3.2 Gen2 Type-C x 1 / Front USB 3.2 Gen1 Header x 1 / Front
USB 2.0 Header x 2
Front Audio Yes
Serial ATA Yes 4
TPM Header SPI Interface
Onboard Buttons Power / Reset / Q-Flash Plus / Flex Key Pin header
Sensor Side Panel Display HDMI
Rear I/O
Thunderbolt Thunderbolt 4
Rear USB Port USB4 Type-C (USB) x 1 / USB3.2 Gen2 Type-A x 1 / USB3.2 Gen1 Type-A x 4 / USB 2.0 x 4
Display Output DisplayPort 1 / Thunderbolt
Audio Line-Out / Mic-In / Optical out (2-jacks + S/PDIF)
LAN (RJ45) 2.5 GbE 1
Other Features Wi-Fi
Thermal
Heatsink/Heatpipe T_MOS Heatsink / R_MOS Heatsink / Heatpipe / M.2 Heatsink / Chipset
Heatsink
Platform Power Management
Power Connector ATX 12 V 2 x 4 Pin 2 / ATX 24 Pin
Certification
KCC ID Yes R-R-GBN-Z89EL7
Network & Connectivity
WiFi Module MediaTek Wi-Fi 7 MT7925 (MT7925B22M)
Physical Specification
Size 305 x 244 mm
Form Factor ATX
Description

Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard

The Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard is designed to deliver high-performance computing for enthusiasts and gamers, powered by the Intel LGA 1851 socket and supporting the latest Intel Core Ultra (15th Gen) processors. With a robust 16-phase power architecture using SmartPowerStage MOSFETs, this motherboard ensures stable power delivery for overclocking and intensive workloads. It supports DDR5 memory with up to 5600 MHz frequency, allowing for faster data transfers and multitasking. With four DIMM slots and a dual-channel architecture, users can install up to 256 GB of RAM, providing ample memory capacity for demanding applications and gaming environments. The PCIe 5.0 interface enhances performance for graphics cards and NVMe storage devices, offering superior bandwidth for faster read and write speeds. The Z890 Aorus Elite also comes equipped with Wi-Fi 7 technology through the MediaTek Wi-Fi 7 MT7925 module, delivering ultra-fast wireless connectivity for seamless online gaming and streaming. The Realtek 2.5 GbE LAN ensures high-speed wired network performance, providing flexibility in connectivity options. This motherboard supports multiple M.2 PCIe 5.0 and 4.0 NVMe slots, enabling users to expand storage capabilities with ultra-fast SSDs. Additionally, the inclusion of Thunderbolt 4 and multiple USB ports (USB4, USB 3.2 Gen2, and Gen1) on both the front and rear I/O ensures maximum connectivity for peripherals and high-speed data transfers. Audio performance is enhanced by the Realtek ALC1220-VB codec, delivering immersive 7.1-channel surround sound. The T_MOS heatsink, heatpipes, and multiple heatsinks for key components ensure excellent thermal management, keeping the system cool during intense gaming sessions or heavy workloads. This ATX form factor motherboard offers a robust, future-proof solution for PC builders seeking high performance, advanced connectivity, and expandability.

Gigabyte Z890 Aorus Elite WIFI7 DDR5 Motherboard Features

  • Intel LGA 1851 Socket: Compatible with Intel Core Ultra 15th Gen processors, offering powerful CPU performance for gaming and productivity.
  • DDR5 Memory Support: Supports dual-channel DDR5 RAM with up to 5600 MHz frequency, enabling faster data transfer and improved multitasking.
  • 16-Phase Power Architecture: Equipped with a twin 16-phase SmartPowerStage power design for stable power delivery, ideal for overclocking and high-performance computing.
  • PCIe 5.0 Expansion Slot: Includes PCIe 5.0 x16 slot, providing high bandwidth for next-gen graphics cards and NVMe SSDs, enhancing gaming and productivity performance.
  • Wi-Fi 7 Technology: Integrated MediaTek Wi-Fi 7 module for ultra-fast wireless connectivity, ensuring seamless online gaming, streaming, and data transfer.
  • 2.5 GbE LAN: Realtek RTL8125 2.5 GbE Ethernet controller for high-speed wired network connections, supporting fast and reliable internet performance.
  • Advanced M.2 Storage Support: Comes with four PCIe 5.0 and 4.0 NVMe slots for ultra-fast SSD storage, improving system responsiveness and load times.
  • Comprehensive Connectivity: Features Thunderbolt 4, USB4 Type-C, USB 3.2 Gen 2/Gen 1, and USB 2.0 ports on the rear and front I/O for versatile connectivity options.
  • 7.1 Channel Audio: Equipped with Realtek ALC1220-VB audio codec and S/PDIF Out for immersive sound with support for 7.1-channel surround sound setups.
  • Efficient Cooling: Includes T_MOS and R_MOS heatsinks, heatpipes, and chipset heatsinks to ensure optimal thermal management under heavy workloads.
  • ATX Form Factor: Standard ATX size (305 x 244 mm) with a matte black 6-layer PCB design for durability and sleek aesthetics.
  • Thunderbolt 4 Support: Offers advanced data transfer and display capabilities through Thunderbolt 4, supporting high-speed external devices.
