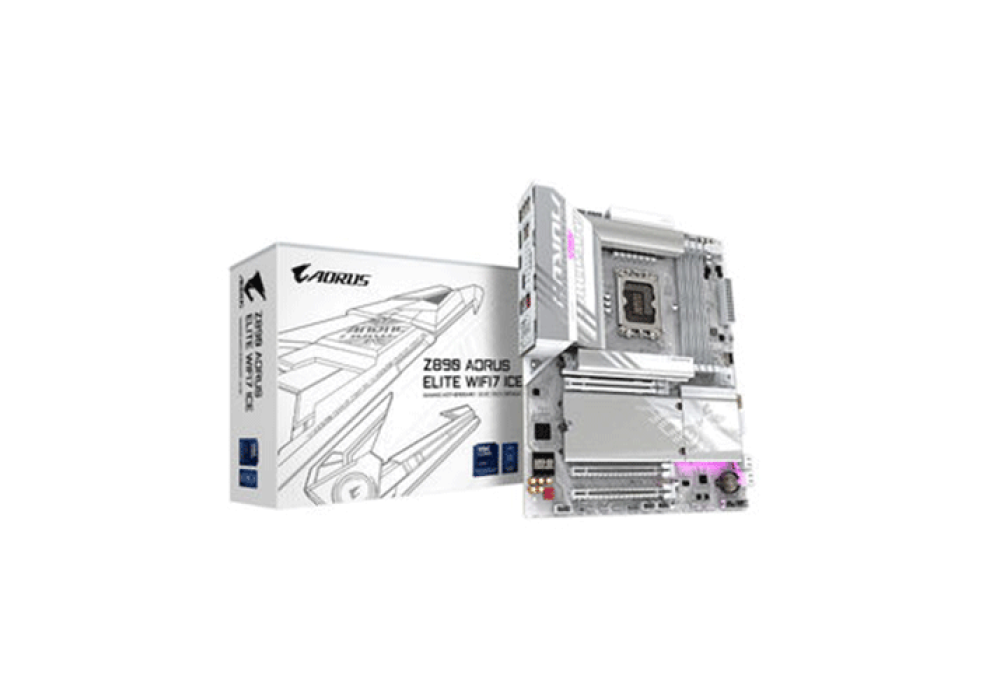

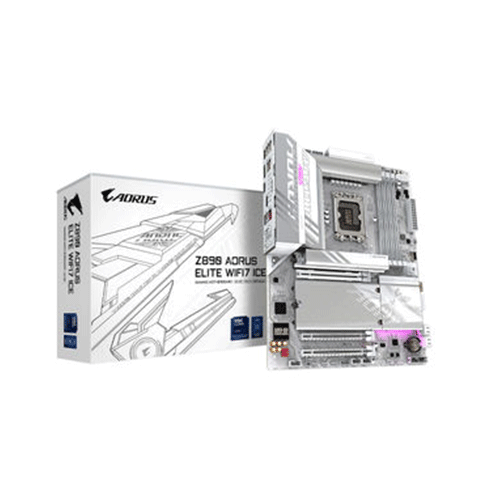

Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard

Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard
-2 %
Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard
  • Stock: In Stock
  • Model: Z890 AORUS ELITE WIFI7 ICE
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
43,500৳
44,500৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
  • Realtek® 2.5 GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
  • Chipset: Intel® Z890 Express Chipset
  • Operating System: Support for Windows 11 64-bit
  • CPU: 1 x USB4® USB Type-C® port on the back panel
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Key Features
Expansion Slots CPU:
1 x PCI Express x 16 slot, supporting PCIe 5.0 and running at x 16 (PCIE x 16)
* The PCIE x 16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIE x 16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x 4 (PCIE x 4_1, PCIE x 4_2)
Storage Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 25110 / 22110 / 2580 / 2280 PCIe 5.0 x 4 / x 2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x 4 / x 2 SSD support) (M2B_CPU) Chipset:
1 x M.2 connector (Socket 3, M key, type 25110 / 22110 / 2580 / 2280 PCIe 4.0 x 4 / x 2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110 / 2280 SATA and PCIe 4.0 x 4 SSD support) (M2M_SB)
4 x SATA 6 Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information
Supported CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset Intel® Z890 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Generel information
Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0 / 1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
(Note) Actual support may vary by CPU.
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
I/O Controller iTE® I/O Controller Chip
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Networking & Connectivity
Wireless Wireless Communication Module:
MediaTek Wi-Fi 7 MT7925 (PCB Rev. 1.0)
802.11a, b, g, n, ac, ax, be, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB Rev. 1.1)
802.11a, b, g, n, ac, ax, be, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Memory Specifications
Supported Memory Type Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /
8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.)
/ 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1R x 8 / 2R x 8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed),
and number of DRAM modules, please refer to "Memory Support List" for more information.)
Connector & Ports
USB (s) 1 x USB4® USB Type-C® port on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek® 2.5 GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Audio Realtek® ALC1220 CODEC
* The front panel line out jack supports DSD audio.
High Definition Audio
2 / 4 / 5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6 Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics Support:
1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120 x 2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840 x 2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
1 x front HDMI port, supporting a maximum resolution of 1920 x 1080@30 Hz * Support for HDMI 1.4 version
1 x DisplayPort, supporting a maximum resolution of 4096 x 2304@60 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Others Information
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Software
Operating System Support for Windows 11 64-bit
Physical Specification
Form Factor ATX Form Factor; 30.5 cm x 24.4 cm
Description

Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard

The Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard is engineered for enthusiasts who demand high performance and advanced features. Equipped with the LGA1851 socket, it supports Intel® Core™ Ultra Processors, making it ideal for handling heavy workloads and gaming. The board utilizes the Intel® Z890 Express Chipset, offering comprehensive support for DDR5 memory, up to 9200 MHz with overclocking, and a massive capacity of 256 GB. This ensures seamless multitasking and enhanced performance for memory-intensive applications. For superior connectivity, the motherboard features Thunderbolt™ 4, USB4® ports, and support for triple-display output through DisplayPort and HDMI. The integrated Intel® Thunderbolt™ 4 connector delivers ultra-fast data transfer and high-resolution display capabilities, making it perfect for creators and gamers alike. Wi-Fi 7 technology powered by MediaTek’s MT7925 and Realtek’s RTL8922AE ensures blazing-fast wireless speeds and broad compatibility, with support for the latest Bluetooth 5.4. Combined with the 2.5 GbE LAN chip, users experience fast and reliable networking across various use cases. Designed for expandability, the motherboard comes with multiple PCIe 5.0 and PCIe 4.0 slots, supporting both graphics cards and NVMe SSDs. It also offers extensive storage options with four M.2 connectors and four SATA 6 Gb/s connectors, supporting RAID configurations. The board integrates Gigabyte’s advanced features, including support for ECC and non-ECC memory, customizable RGB lighting, and Q-Flash for easy BIOS updates. With its ATX form factor and comprehensive I/O options, the Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard is a premium choice for building cutting-edge systems.

Gigabyte Z890 Aorus Elite Ice WIFI7 DDR5 Motherboard Features

  • LGA1851 Socket Support: Compatible with Intel® Core™ Ultra Processors for powerful performance across various applications.
  • DDR5 Memory Support: Supports up to 256 GB of DDR5 memory with speeds up to 9200 MT/s (overclocked), offering high bandwidth for multitasking and memory-intensive tasks.
  • Thunderbolt™ 4 & USB4® Connectivity: Includes an Intel® Thunderbolt™ 4 connector and USB4® Type-C® port, supporting ultra-fast data transfer and high-resolution displays up to 5120 x 2880@60Hz.
  • Triple Display Support: Features DisplayPort and HDMI outputs for up to three displays simultaneously, ideal for multitasking or gaming setups.
  • Wi-Fi 7 & Bluetooth 5.4: Equipped with MediaTek Wi-Fi 7 and Bluetooth 5.4, providing blazing-fast wireless connections and broad compatibility with the latest devices.
  • PCIe 5.0 & PCIe 4.0 Slots: The board features PCIe 5.0 and PCIe 4.0 slots for next-gen graphics cards and NVMe SSDs, enhancing gaming and content creation experiences.
  • Comprehensive Storage Options: Includes four M.2 connectors and four SATA 6 Gb/s connectors, supporting both PCIe and SATA SSDs, with RAID 0, 1, 5, and 10 configurations.
  • High-Definition Audio: Realtek® ALC1220 CODEC ensures rich, high-definition audio output with support for DSD audio and 5.1-channel surround sound.
  • 2.5 GbE LAN: Features a Realtek® 2.5 GbE LAN chip for fast and reliable wired networking, ensuring low latency and high-speed internet.
  • RGB Lighting Support: Comes with multiple RGB and addressable RGB Gen2 LED headers, allowing customizable lighting effects to match your system’s aesthetic.
  • Advanced Cooling Solutions: Multiple fan headers, including support for water cooling pumps and fan speed control, provide enhanced cooling for high-performance systems.
  • Q-Flash Plus: Allows users to update the BIOS without installing a CPU, memory, or graphics card, simplifying system updates.
