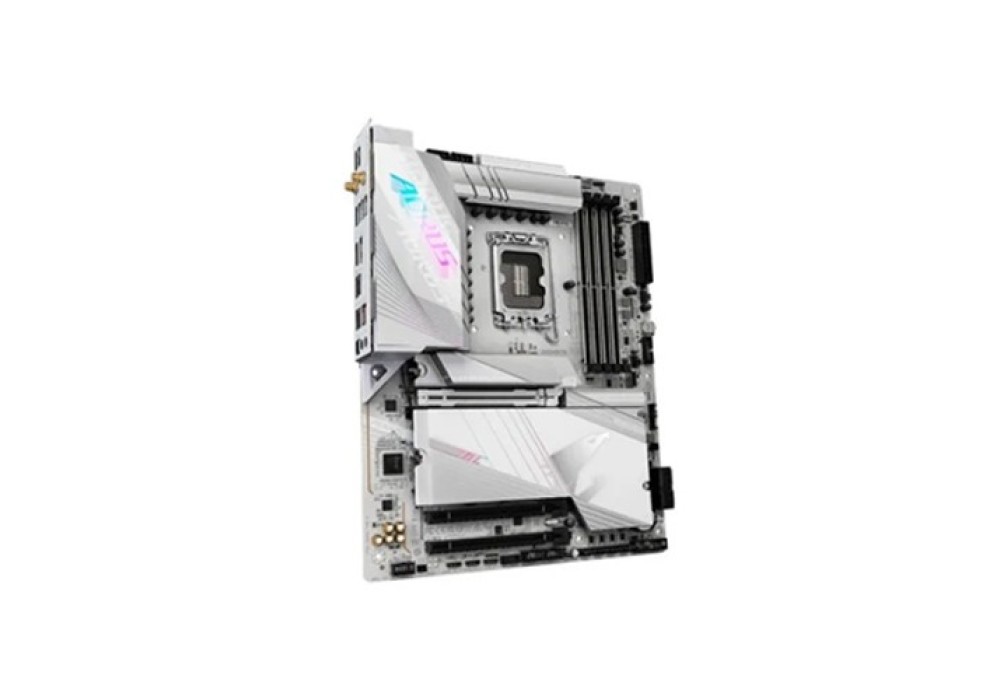

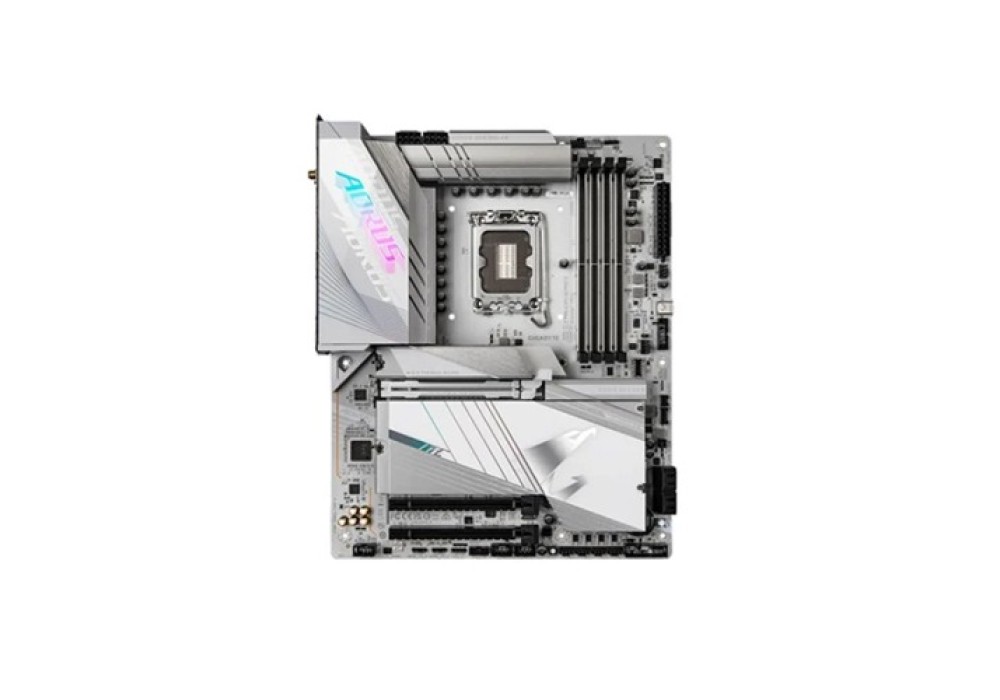

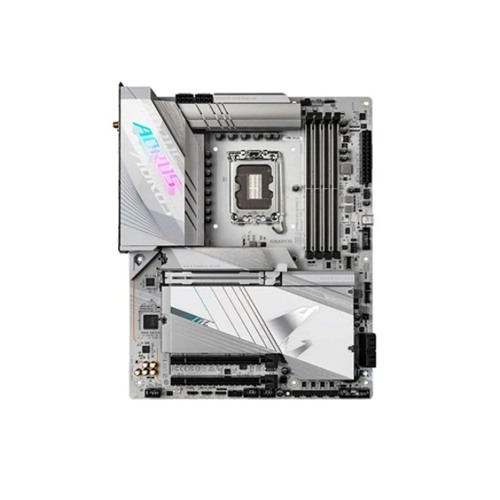

GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard

GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
-10 %
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard
  • Stock: In Stock
  • Model: Z790 AORUS PRO X
Gigabyte Gigabyte
Based on 1 reviews. - Write a review
51,300৳
56,900৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supported CPU: 14th,13th Gen & 12th Gen Processors (LGA1700)
    • Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)
    • Graphics Output: 1 x DisplayPort, 1 x HDMI port
    • Features: Intel Wi-Fi 7 BE200 (For PCB rev. 1.1)
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU LGA1700 socket: Support for the 14th,13th, and 12th Generation
Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® ALC1220-VB CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Memory Specifications
Memory Type DDR5
Slots 4 x DIMM
Supported Memory Type Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) /
7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) /
6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) /
5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

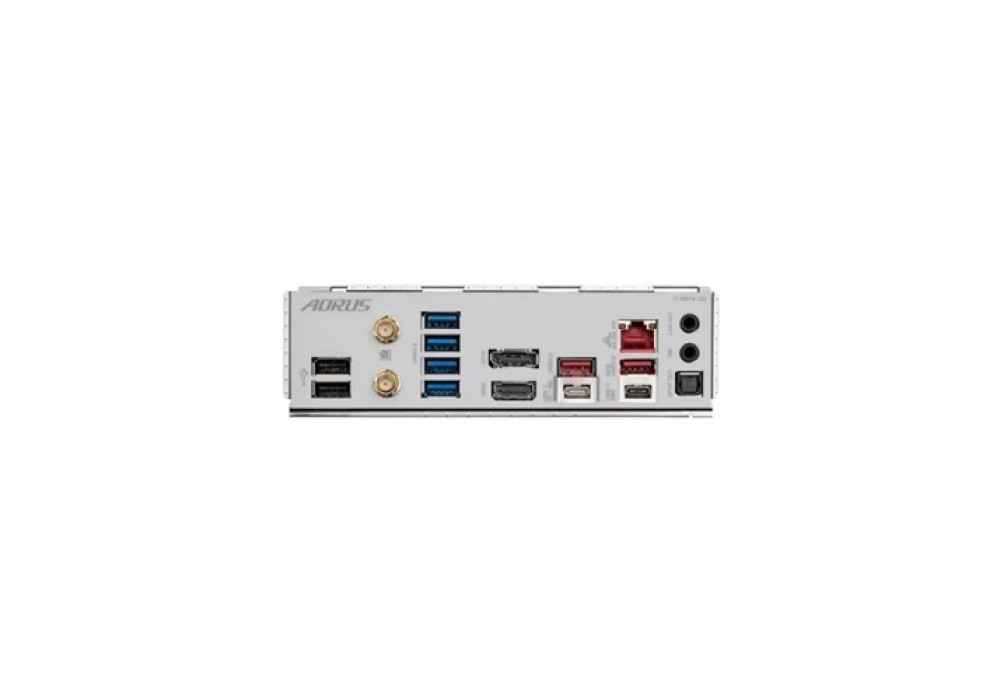

Connector & Ports
USB (s) Chipset:
- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel,
1 port available through the internal USB header)
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C® port onboard, with USB 2.0 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
LAN Port (s) Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port (DisplayPort), with USB 2.0 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort
video outputs and a maximum resolution of 4096x2304@60 Hz
- 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video
outputs and a maximum resolution of 1920x1080@30 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Others Information
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software
Operating System Support for Windows 11 64-bit
Description

GIGABYTE Z790 AORUS PRO X 14th,13th And 12th Gen DDR5 Motherboard

The GIGABYTE Z790 AORUS PRO X 14th,13th and 12th Gen DDR5 motherboard is a high-performance and feature-rich platform designed for enthusiasts, gamers, and professionals who demand cutting-edge technology and exceptional versatility for their computing needs. This motherboard, built around the LGA1700 socket, supports both 14th,13thand 12th Generation Intel Core processors, providing an extensive range of options for users.The heart of this motherboard is the Intel Z790 Express Chipset, which ensures rapid data transfer and seamless operation. It features a 256 Mbit flash BIOS with licensed AMI UEFI BIOS, supporting modern standards like ACPI 5.0, DMI 2.7, and more for an optimal user experience.When it comes to audio, the motherboard is equipped with the Realtek ALC1220-VB CODEC, delivering high-definition audio with support for various audio configurations, including 2/4/5.1/7.1-channel setups. Additionally, S/PDIF Out support provides high-quality digital audio output.The motherboard's DDR5 memory support is impressive, allowing for overclocked memory speeds up to 8266 MHz. With four DIMM slots and a maximum memory capacity of 192 GB, this motherboard caters to users who require substantial memory resources for tasks such as content creation, gaming, and more.In terms of expansion, the motherboard offers multiple PCIe slots, including a PCIe 5.0 x16 slot for high-speed graphics cards and two PCIe 4.0 x4 slots for additional expansion cards. The ATX form factor ensures compatibility with a wide range of PC cases, allowing for diverse build options.Connectivity is a strong point of the Z790 AORUS PRO X. It features a wealth of USB ports, including USB Type-C with USB 3.2 Gen 2x2 support, and 5GbE LAN via the Realtek chip. The motherboard supports RAID configurations for both NVMe SSDs and SATA storage devices, providing data redundancy and performance enhancement options.The motherboard includes numerous internal and external connectors for system expansion, including RGB LED headers, SATA ports, USB headers, and more, offering great flexibility for custom PC builds.Special features such as GIGABYTE Control Center, Q-Flash, Q-Flash Plus, and Smart Backup simplify system management and updates. Furthermore, the motherboard comes bundled with Norton Internet Security for added system security.

In summary, the GIGABYTE Z790 AORUS PRO X motherboard is a powerful and versatile platform tailored for enthusiasts, gamers, and professionals. With support for DDR5 memory, high-quality audio, and a plethora of connectivity options, it provides the foundation for a robust and efficient PC build that meets the demands of modern computing tasks, making it a top choice for those who seek high-end performance and flexibility in their systems.

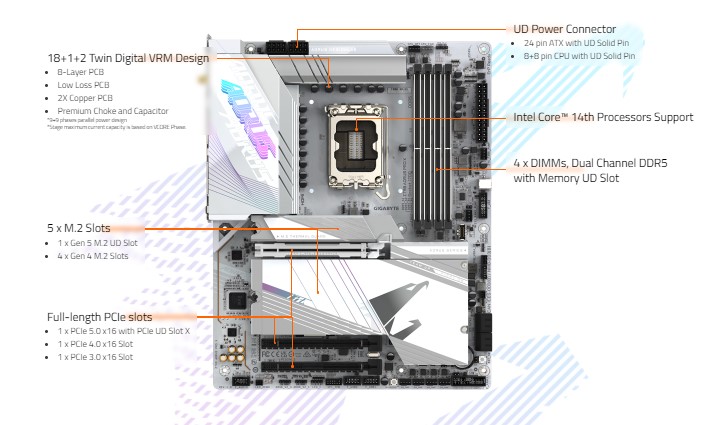

Features:

  • Supports Intel® Core™ 14th,13th and 12th processors
  • Digital twin 18+1+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • EZ-Latch Plus：M.2 slots with quick release design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • UC BIOS：User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • Fast Networking：5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity：HDMI, DP IN, Front & Rear USB-C® 20Gb/s
  • High-Res Audio：ALC1220 & Audiophile Grade Capacitors

GIGABYTE Z790 AORUS PRO X Price in BD

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

GIGABYTE Z790 AORUS PRO X Review:

The GIGABYTE Z790 AORUS PRO X motherboard offers a formidable platform for 1th and 12th Generation Intel Core processors. Its DDR5 memory support, overclockable up to 8266 MHz, and 192 GB maximum capacity cater to power users, while the Intel Z790 Express Chipset ensures high-speed data transfer. The Realtek ALC1220-VB audio and versatile graphics options provide an immersive multimedia experience. An abundance of USB ports, 5GbE LAN, and support for RAID configurations make it a connectivity powerhouse. With a host of special features and bundled Norton Internet Security, this motherboard is a compelling choice for those seeking performance and versatility in their PC builds.
