Model: Z790 AORUS ELITE X AX
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel Z790 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)v |
| Memory Size | up to 192 GB (48 GB single DIMM capacity) of system memory |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| HDMI | 1x HDMI |
| Display Port (s) | 2 x DisplayPorts |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Manufacturing Warranty | 3 Years |

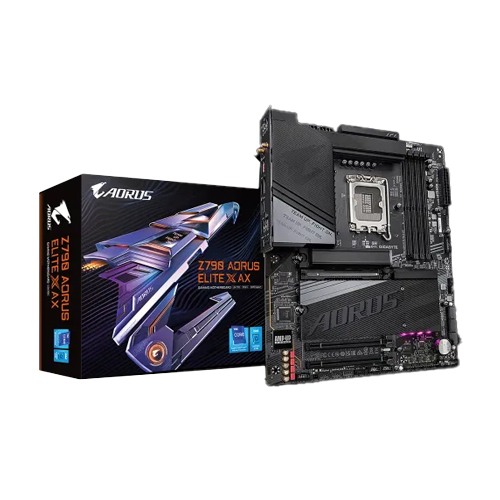

GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard stands out as a high-performance motherboard designed to meet the demands of both gamers and professionals. This motherboard supports a wide range of Intel processors, including the newest 14th-generation CPUs, thanks to its LGA1700 socket. This processor support offers high compatibility and performance for a wide range of computer workloads. Its Digital twin 16+1+2 phases VRM design ensures a steady and efficient power supply, making it an excellent choice for overclocking, where accurate and dependable power delivery is critical. Memory performance is very remarkable, with 4 DIMM slots supporting Dual Channel DDR5 memory. The motherboard also includes XMP 3.0 memory module compatibility, which enables smooth, high-speed memory configurations to boost performance for demanding applications and gaming. Gamers and multimedia makers will love the PCIe UD Slot X's outstanding graphics compatibility, which offers a PCIe 5.0 x16 slot with 10X strength, ideal for fitting high-end GPUs and multi-GPU systems. Four PCIe 4.0 x4 M.2 slots provide ultra-fast storage capabilities, providing speedy data access and overall system responsiveness. All of these high-performance components must be kept cool, which the motherboard accomplishes with VRM Thermal Armor Advanced and M.2 Thermal Guard L, which efficiently dissipate heat and maintain appropriate operating temperatures. The incorporation of 2.5GbE LAN and Wi-Fi 6E, along with an ultra-high gain antenna, ensures fast and robust networking, providing uninterrupted online gaming and flawless multimedia streaming. Furthermore, the motherboard has DisplayPort (DP), HDMI, Front USB-C 10Gb/s, and Rear USB-C 20Gb/s connections, making it simple to connect a broad range of peripherals and devices. Audiophiles will like the ALC1220 audio codec and audiophile-grade capacitors, which give an immersive gaming and entertainment experience with crystal-clear sound. The motherboard includes a user-friendly UC BIOS with a Quick Access option to make system control easier. This streamlines system settings and modifications, offering a smooth and straightforward user experience regardless of whether you're a rookie or a seasoned PC expert.
