Model: Z790 AORUS ELITE DDR4
View More Info...
Chat Through
| Type | DDR4 |
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel Z790 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) |
| Memory Size | 128GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| HDMI | 1x HDMI |
| Display Port (s) | 2 x DisplayPorts |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3. |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Manufacturing Warranty | 3 Years |

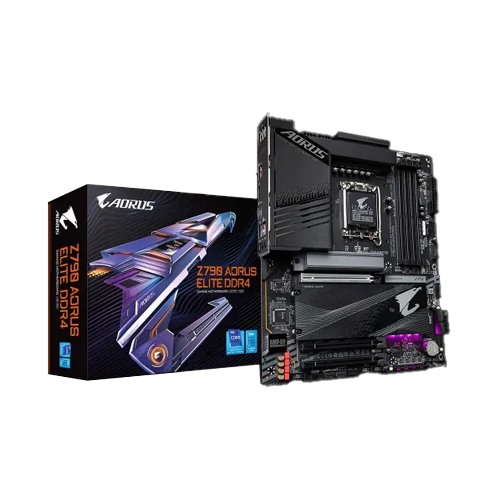

GIGABYTE Z790 AORUS ELITE DDR4 ATX Motherboard is a cutting-edge motherboard designed to support the latest 14th, 13th, and 12th Gen Intel processors utilizing the LGA 1700 socket. Boasting an array of impressive features, this 14th Gen motherboard is a true powerhouse, perfect for gamers and PC enthusiasts alike. With compatibility for both 13th and 12th Gen Intel processors, it ensures you have access to the latest computing power. The Twin 16+1+2 Phases Digital Voltage Regulation Module (VRM) delivers unparalleled power delivery, guaranteeing stable and efficient CPU performance. Supporting Dual-Channel DDR4 memory with four DIMM slots and XMP module support, it maximizes memory performance for gaming and multitasking. With four PCIe 4.0 x4 M.2 connectors, the motherboard provides ultra-fast storage options that leverage the latest storage technologies. Advanced thermal design and M.2 Thermal Guard III keep VRM power stable and optimize M.2 SSD performance. The EZ-Latch Plus design on the M.2 connectors simplifies installation and upgrades. It also features 2.5GbE LAN support for high-speed networking, HDMI, Front USB-C with 10Gb/s, and Rear USB-C with 20Gb/s for extensive connectivity. Smart Fan 6, equipped with multiple temperature sensors and hybrid fan headers with FAN STOP, allows precise cooling control. Lastly, the Q-Flash Plus feature simplifies BIOS updates without needing to install the CPU, memory, or graphics card, making this motherboard an exceptional choice for building a high-performance desktop PC.
