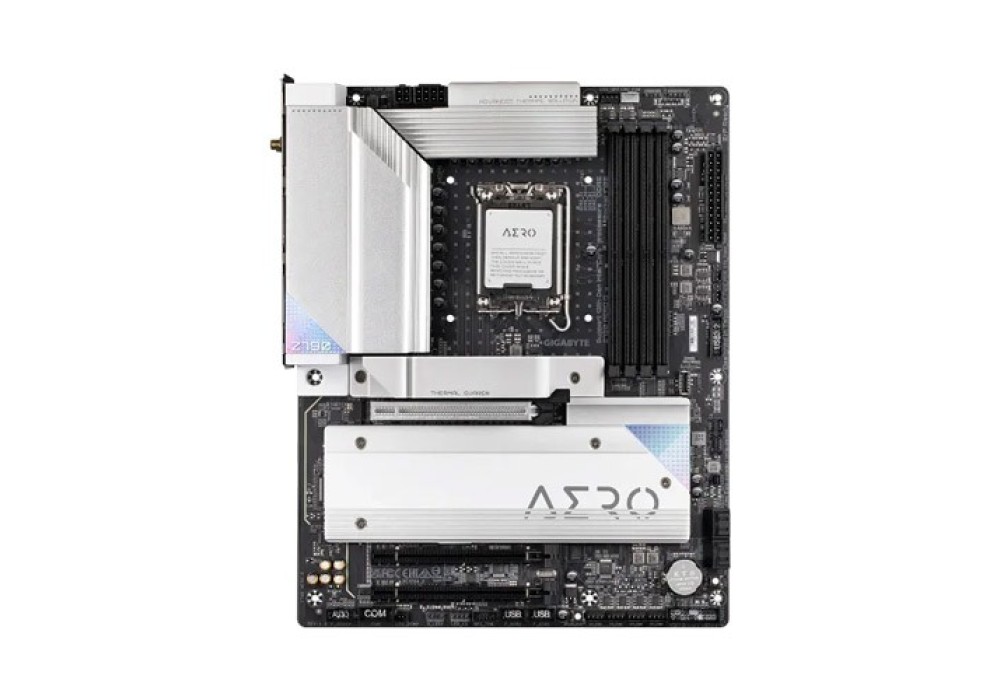

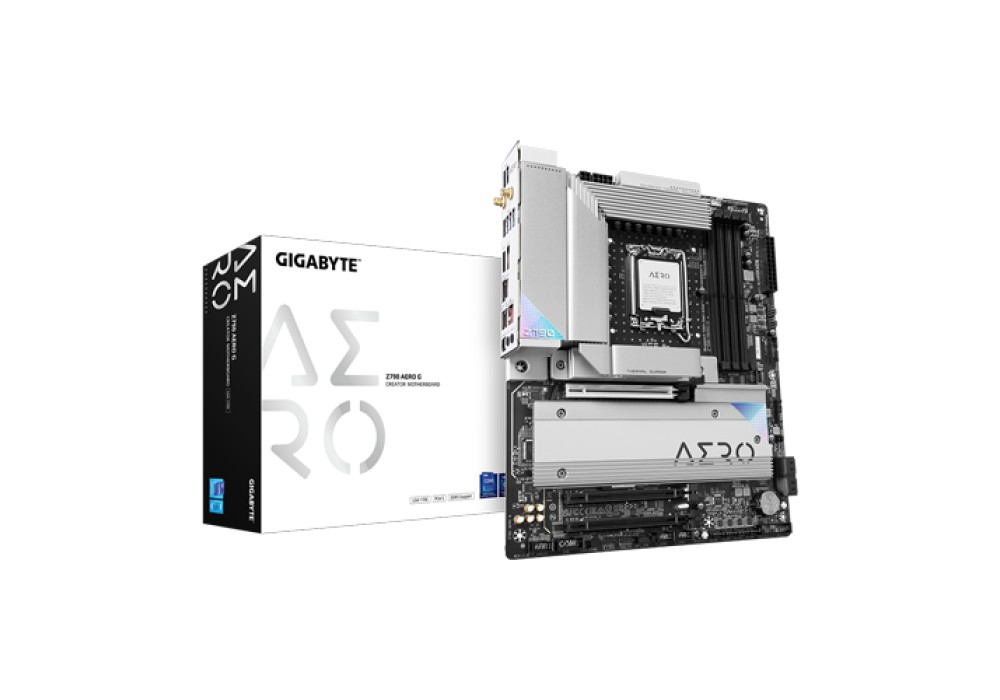

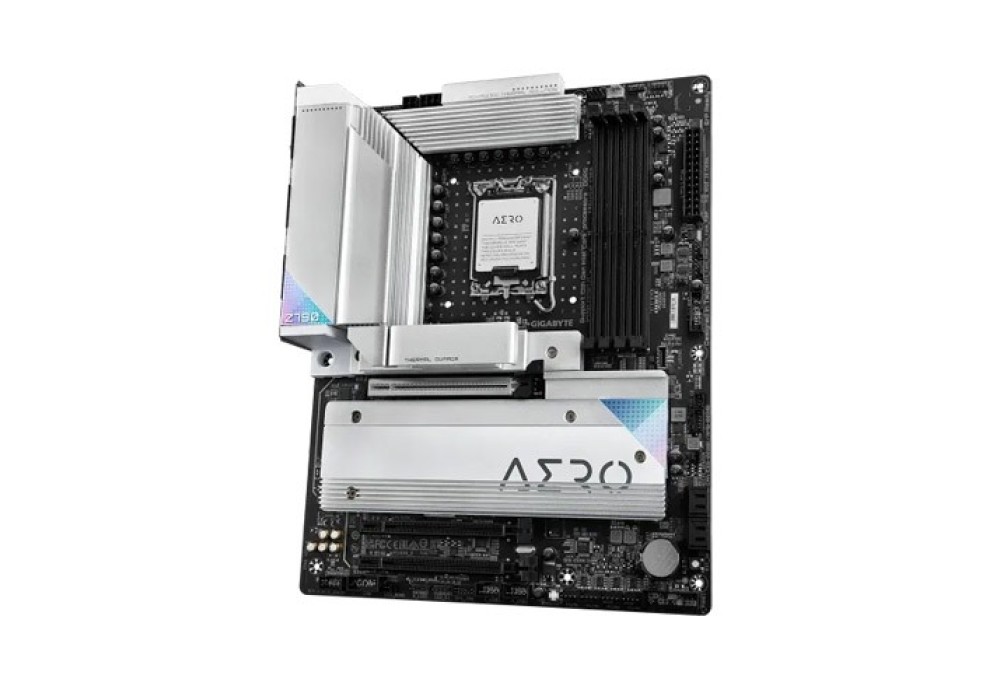

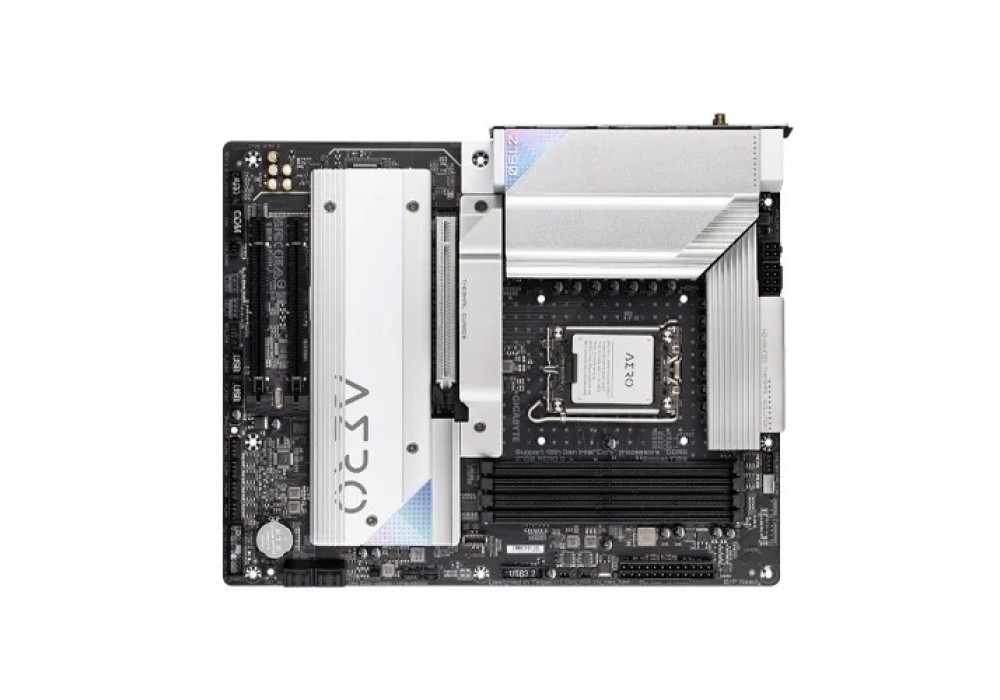

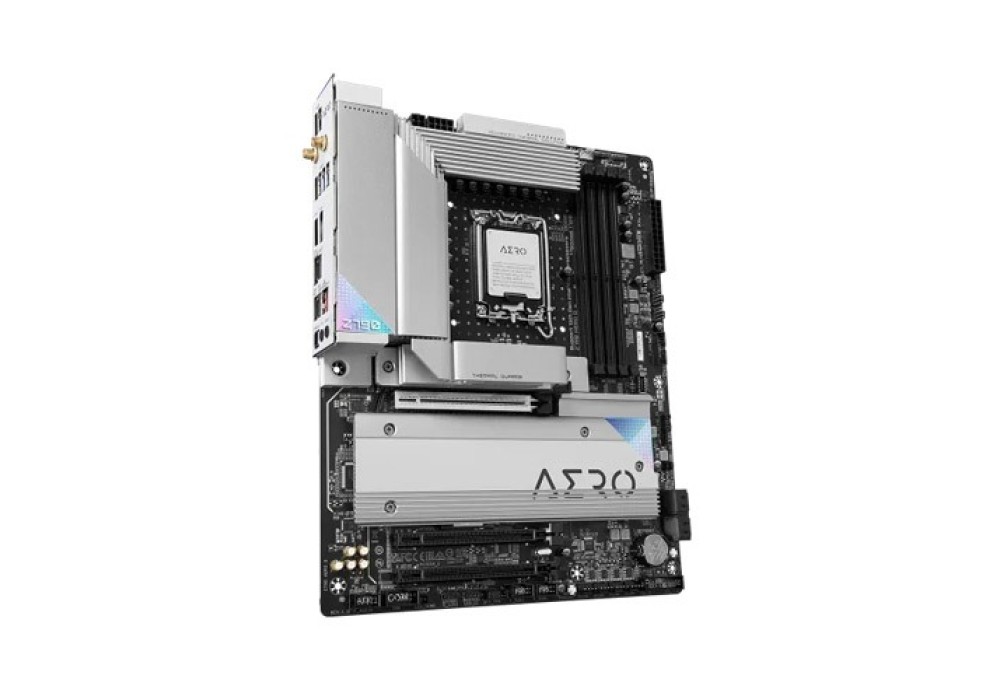

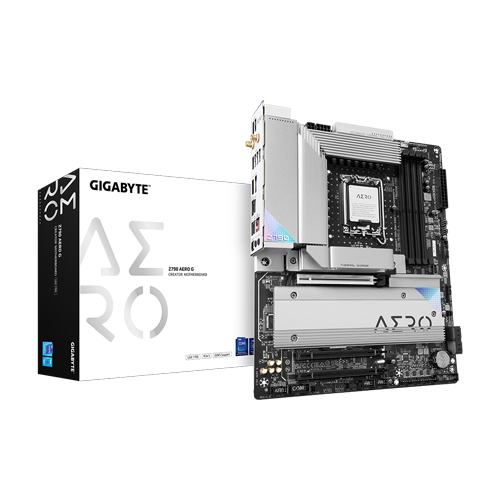

GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD

GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
-6 %
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD
  • Stock: In Stock
  • Model: Z790 AERO G
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
44,500৳
47,500৳
EMI starts at 15,605৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 13th Gen and 12th Gen Processors (LGA1700)
    • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
    • Graphics Output: 1 x USB Type-C, 1 x HDMI
    • Features: Intel 2.5GbE LAN and Wi-Fi 6E 802.11ax
View more info...
Specification
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and
Celeron Processors
L3 cache varies with CPU
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-
channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot
operates
at up to x8 mode when a device is installed in the M2C_CPU connector
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory Specifications
Memory Type DDR5
Slots 4 x DIMM sockets
Supported Memory Type Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /
6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /
4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Motherboard
Max Memory 128GB (32 GB single DIMM capacity)
Other Features
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each
application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

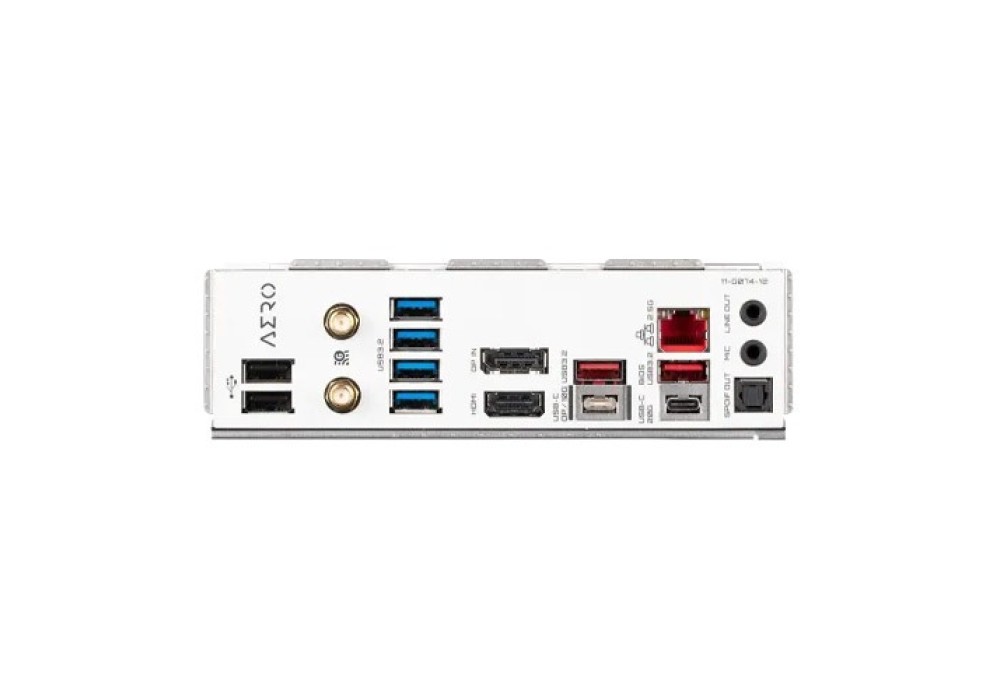

Connector & Ports
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available
through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum
resolution of 4096x2304@60 Hz
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Warranty 3 years
Description

Gigabyte Z790 AERO G 13th and 12th Gen DDR5 ATX Motherboard

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

Simplify Your Connections.

Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable.

DDR5 will satisfy your insatiable need for speed.

Whether you’re editing hundreds of audio samples, working with 4K video, or even multitasking,DDR5 will satisfy your insatiable need for speed.

Performance

Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.

Fast Speed. More Space.

Equipped with a full-speed PCIe 5.0 M.2 slot. A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.

Aesthetic Cooling Design.

GIGABYTE’s advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
