Model: Z690 UD DDR4
View More Info...
Chat Through
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Memory Type | DDR4 |
| Slots | 4 x DDR DIMM sockets |
| Supported Memory Type | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
| Max. Memory | Up to 128 GB (32 GB single DIMM capacity) |
| HDMI | 1 x HDMI port |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| Audio | 1 x front panel audio header |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years |

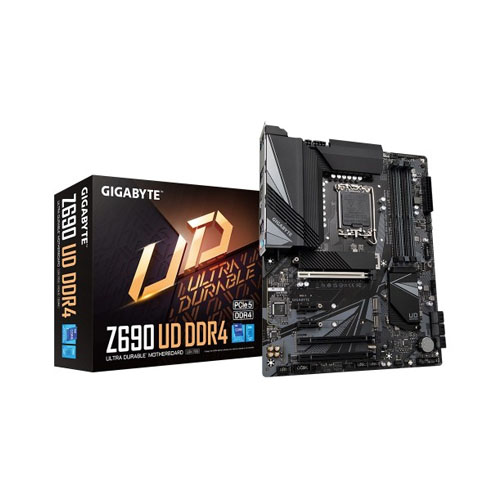

Gigabyte Z690 UD DDR4 Motherboard designed to leverage the power of Intel 12th Gen processors, the Z690 UD provides both durability and reliability suitable for a wide range of components, allowing you to create gaming-, creative-, or business-focused systems. At the heart of this build are the Intel Z690 chipset and the LGA1700 socket allowing you to install a wide range of Intel 12th Gen processors. Quickly access your digital library with six SATA III ports and three M.2 interfaces. Experience enhanced multitasking capabilities with four dual-channel DDR4 slots giving you support for memory modules up to 5333 MHz overclocked. A single PCIe 5.0 x16 slot is available for resource-hungry components such as graphics cards, while an array of PCIe 3.0 slots are available for utility cards. Connect your external drives and other demanding peripherals with USB 3.2 Gen 1 and Gen 2 Type-A ports. A single USB 3.2 Gen 2×2 port provides up to 20 Gb/s data transfer speeds, ideal for high-powered devices such as mass storage arrays and more. Connect to your network and experience immersive sound with a Realtek 2.5 Gigabit Ethernet port and 7.1-channel audio, respectively.
PCIe Expansion Slots
Connect a wide range of graphics and utility cards with an array of PCIe expansion slots. A single PCIe 5.0 x16 slot offers enhanced speeds up to 128 GB/s. Two PCIe x16 slots conform to the 3.0 standard with each slot running at x4 and x1 speeds, respectively. Two PCIe 3.0 x1 slots are also available for additional card support.
Intel 12th Gen Compatible
The LGA1700 socket allows you to pick from a wide range of Intel 12th Gen processors which utilize a hybrid design, ideal for your projects and games.
Electrical Reliance
Direct 16+1+2 Digital VRM design with 60A Power Stage utilizes Tantalum Polymer Capacitors to balance electrical fluctuations and provide ample power to manage your system’s needs. Power stage maximum capacity is based on VCORE phases.
Thermal Design
The enhanced thermal design provides ample cooling with VRM heatsinks and enlarged M.2 thermal guards. Smart Fan 6 application uses multiple temperature sensors and hybrid fan headers with Fan Stop to manage heat and allow you to adjust heat threshold for your system for efficient cooling.
Enhanced Performance Speeds
Gigabyte Z690 UD DDR4 Motherboard includes various features that allow you to experience high-speed performance suitable for work and play. Three PCIe 4.0 M.2 slots allow you to experience faster storage access. Install Thunderbolt-enabled expansion cards with dedicated headers, unlocking daisy-chaining capabilities and data transfer speeds up to 40 Gb/s.
Customization
Personalize your system in a flood of color and effects with RGB FUSION 2.0 software, allowing you to utilize advanced LED and RGB strips to add a sense of personality to your rig.
Q-Flash Plus
Q-Flash Plus allows you to update your BIOS settings without installing the CPU, memory, and GPU, enabling easier management and upgrading.
