Model: Z690 AORUS PRO DDR5
View More Info...
Chat Through
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek ALC4080 CODEC High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| M.2 Socket | 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard |
| Memory Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | Up to 128 GB (32 GB single DIMM capacity) |
| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| Audio | 1 x front panel audio header |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years |

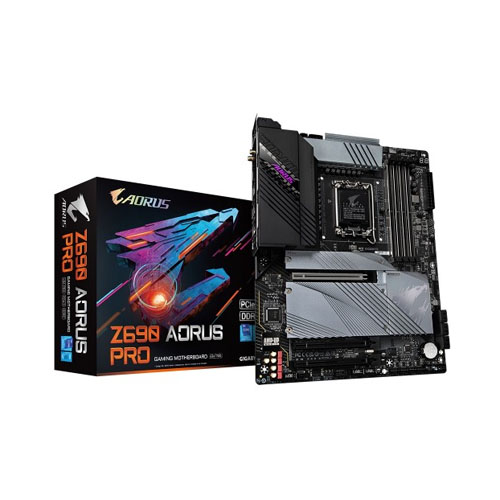

The Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard is a powerhouse designed to unleash the full potential of 12th Generation Intel Core processors. Its LGA1700 socket supports Intel Core i9, i7, and i5 CPUs, offering exceptional performance for gaming, content creation, and more. Featuring the Intel Z690 Express Chipset, this motherboard boasts a robust foundation for high-speed connectivity and advanced features. With support for DDR5 memory running up to 6200MHz (O.C.), along with four DIMM slots allowing a maximum capacity of 128GB, it ensures smooth multitasking and seamless application performance. The board's PCIe 5.0 and PCIe 4.0 M.2 connectors deliver ultra-fast data transfer rates for NVMe SSDs, enhanced further by an enlarged thermal guard for optimal cooling. The AORUS PRO DDR5 motherboard provides an immersive audio experience with the Realtek ALC4080 CODEC and supports various audio configurations, including 7.1-channel digital signals. Its expansion slots cater to multi-GPU setups and feature PCIe 5.0 compatibility for future-proofing. Connectivity options are abundant, including USB 3.2 Gen 2x2 Type-C ports and Intel 2.5GbE LAN for high-speed networking. Designed with enthusiasts in mind, this ATX motherboard offers extensive customization with RGB LED headers, addressable LED strip headers, and Thunderbolt add-in card connectors. With its comprehensive internal I/O ports and advanced BIOS features, the Gigabyte Z690 AORUS PRO DDR5 motherboard is an ideal choice for building a high-performance PC tailored to your needs.
Featuring the most recent Intel Z690 Express Chipset and compatible with 12th Generation Intel Core processors, the Gigabyte Z690 AORUS PRO DDR5 motherboard offers outstanding performance for demanding applications including work, gaming, and content creation.
The Z690 AORUS PRO DDR5 motherboard boasts support for DDR5 memory, offering blazing-fast speeds and enhanced multitasking capabilities. One of the standout features of this motherboard is its support for DDR5 memory. With support for up to 128 GB of DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules, users can harness the power of next-generation memory technology for enhanced performance and efficiency.
Sporting an ATX form factor measuring 30.5cm x 24.4cm, the Gigabyte Z690 AORUS PRO DDR5 motherboard features a sleek and modern design. With attention to detail and premium build quality, this motherboard not only performs exceptionally but also adds aesthetic appeal to any PC build.
When it comes to connectivity, this motherboard leaves no stone unturned. With a comprehensive array of ports including USB Type-C, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 2.0/1.1, and Intel 2.5GbE LAN, users can connect their peripherals and devices with ease, ensuring seamless data transfer and networking capabilities.
With support for LGA1700 socket processors, including 12th Generation Intel Core i9, i7, and i5 processors, this motherboard offers unparalleled compatibility and performance for a wide range of computing tasks.
GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.
Q: What processors are supported by the Gigabyte Z690 AORUS PRO DDR5 motherboard?
A: The motherboard supports 12th Generation Intel Core i9, i7, and i5 processors with LGA1700 socket compatibility.
Q: Does the motherboard support DDR5 memory?
A: Yes, the Gigabyte Z690 AORUS PRO DDR5 motherboard supports DDR5 memory modules for enhanced performance and efficiency.
Q: What form factor does the motherboard come in?
A: The motherboard comes in an ATX form factor, measuring 30.5cm x 24.4cm, offering ample room for expansion and customization.
Q: What connectivity options does the motherboard offer?
A: The motherboard features a comprehensive array of ports including USB Type-C, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 2.0/1.1, and Intel 2.5GbE LAN for seamless connectivity.
Q: Is the motherboard suitable for gaming?
A: Yes, the Gigabyte Z690 AORUS PRO DDR5 motherboard offers enhanced gaming features including support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, ensuring smooth gameplay and immersive experiences.
