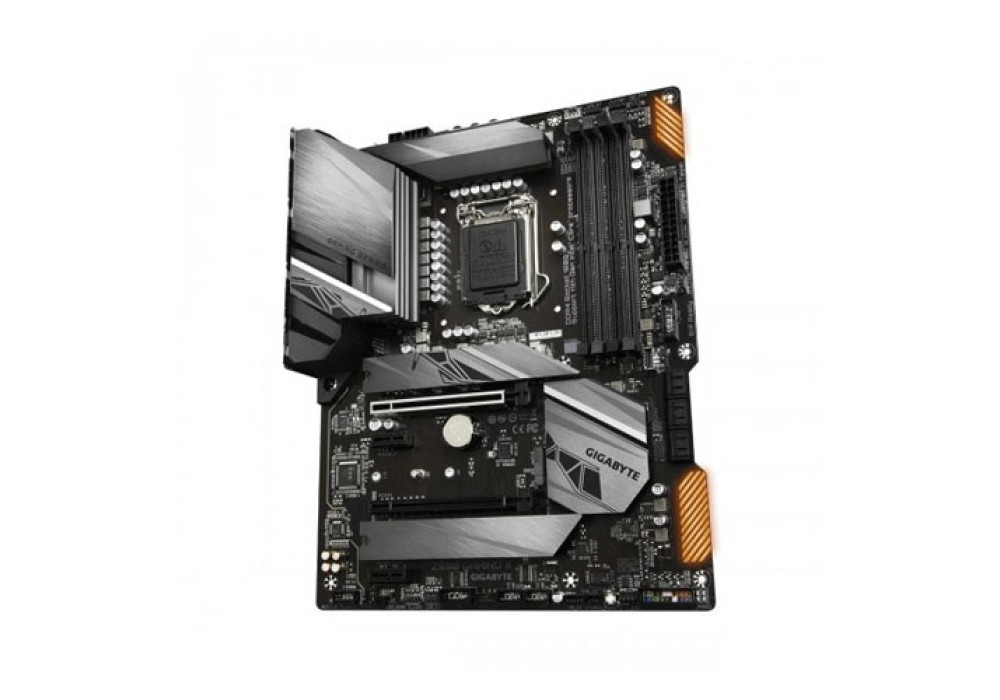

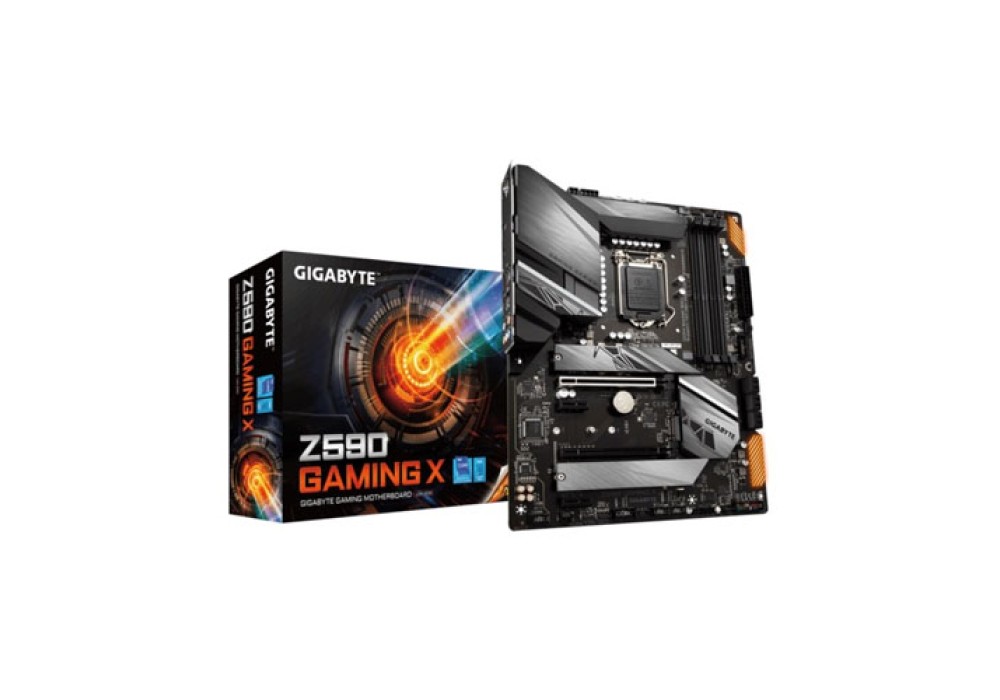

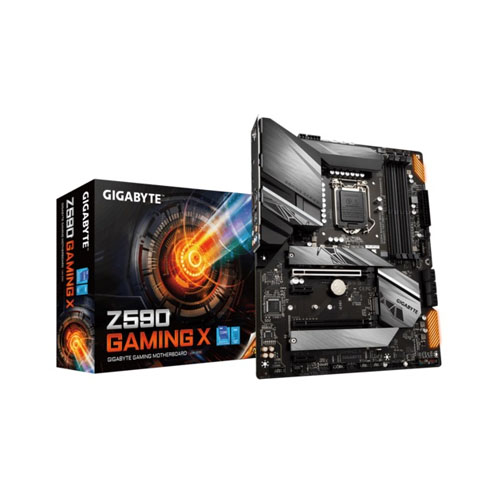

Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard

Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard
Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard
Out Of Stock
Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard
Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard
Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard
  • Stock: Out Of Stock
  • Model: Z590 Gaming X
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supports 11th and 10th Gen Intel Core Processors
    • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
    • Dual-Channel DDR4, 4 DIMMs
    • Fast 2.5GbE LAN
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors /
Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset Intel Z590 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
*Supported by 11th Generation processors only.
2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
(M2A_SB) (M2M_SB)
Memory Specifications
Memory Type Dual-channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory Type 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/
4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 /
2133 MHz
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory 128 GB (32 GB single DIMM capacity)
Connector & Ports
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support
1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
1 x USB 3.2 Gen2 Type-A port (red) on the back panel
7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
Chipset+ 2 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD
support) (M2A_SB) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio 6 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz.
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Others Information
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years
Description

Gigabyte Z590 Gaming X Intel 10th and 11th Gen ATX Motherboard

Gigabyte Z590 Gaming X Motherboard From GIGABYTE. Whether You Are Upgrading Or Starting A Fresh Build, You Will Find A Wide Range Of Capabilities Within The Z590 GAMING X, Making This Ideal For Any Builder Focusing On Gaming-Based Components. The Z590 Chipset Gives You Access To An Intel LGA 1200 Socket, Suitable For A Variety Of Processors. Four Dual-Channel DDR4 RAM Slots Can Handle Memory Modules Up To 5333 MHz (O.C.) For Enhanced Multitasking Capabilities. Six SATA III And Three M.2 Storage Interfaces Allow You To Install Various Storage Drives Including PCIe 3.0 And 4.0 NVMe Solid-State Drives For Enhanced System Performance. You Can Use Various Graphics And Utility Cards With One PCIe 4.0 X16, One PCIe 3.0 X16, And Two PCIe 3.0 X1 Slots. USB 3.2 Gen 1 And Gen 2 Ports Allow You To Experience Enhanced Transfer Speeds For External Storage Devices As Well As Resource-Demanding Peripherals. A 2.5 GbE RJ-45 Port Is Available For Enhanced Network Performance, Essential For Competitive Online Gaming. Various Addressable RGB Headers Allow You To Set Up Custom Lighting Effects For A Truly Unique Style.
