- Stock: Out Of Stock
- Brand: Gigabyte
- Model: Z490 Aorus Pro AX
- Product ID: 1347
Key Features
- Chipset: Intel Z490 Express
- Intel Socket LGA1200 for 10th Gen Processors
- 4 x DIMM, Max. 128GB DDR4
- CrossFire and SLI Supported
Basic Information | |
Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
Chipset | Intel Z490 Express Chipset |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Expansion Slots | |
PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots |
M.2 Socket | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB) |
Memory Specifications | |
Type | Dual channel memory architecture |
Slots | 4 x DDR4 DIMM |
Supported Memory | Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Max. Memory | 128 GB |
Connector & Ports | |
HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
USB (s) | Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Supported Storage | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
Graphics | |
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Max Shared Memory | 512MB |
Others Information | |
Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Warranty Information | |
Manufacturing Warranty | 03 Years |

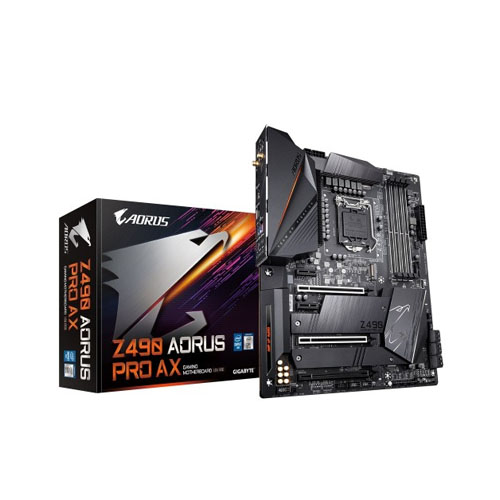

Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard
The Gigabyte Z490 AORUS PRO AX Motherboard. Designed For Gamers, Enthusiasts, And Content Creators, This Motherboard Is Powered By The Intel Z490 Chipset And Supports 10th Generation Intel Processors With The LGA 1200 Socket. It Takes Full Advantage Of The PCIe 3.0 Data Bandwidth To Deliver High Performance For Tasks Such 3D Rendering, Video Editing, And More. Up To 128GB Of Dual-Channel DDR4 RAM, Reaching 5000 MHz When Overclocked, Can Be Installed Across Four Memory Slots. The Gigabyte Z490 AORUS PRO AX Motherboard Also Features Advanced Cooling And Supports Up To Two M.2 SSDs And Six SATA III Storage Drives, Which Can Be Put Into RAID 0, 1, 5, Or 10 Configuration. Its Three PCIe 3.0 X16 Slots Are Designed To Support PCIe 4.0 CPUs And Can Accommodate 2-Way And Quad-GPU NVIDIA SLI And AMD CrossFireX Configurations To Maximize Your System's Graphical Capabilities For High Frame Rates, Connecting 4K And 8K Monitors, And Faster Video Rendering Times. Alternatively, The Built-In HDMI Port Allows You To Take Advantage Of Integrated CPU Graphics. Two PCIe 3.0 X1 Slots Are Available Alongside Two Thunderbolt 3 Headers For Compatible Expansion Cards. The USB 3.2 Gen 2 Type-A And Type-C Ports Allow You To Transfer Data From Compatible Peripherals At Up To 10 Gb/S. Enjoy Fast Network Connections Using The 2.5 Gigabit Ethernet Port And Built-In 802.11ax Wi-Fi, Which Can Wirelessly Transfer Data At Up To 2.4 Gb/S With Compatible Devices. The Gigabyte Z490 AORUS PRO AX Motherboard Also Delivers Vibrant 7.1-Channel Surround Sound Realtek ALC1220-VB Audio Codec. You Can Customize Your Computing Experience Using The Addressable RGB Headers To Connect Light Strips, Which Can Be Synced With Other Gigabyte RGB Fusion 2.0-Compatible Peripherals Such As Mice And Keyboards Using The Desktop Software Or Mobile App. Windows 10 64-Bit Is Required To Take Advantage Of All The Motherboard's Features.
ULTIMATE POWER DESIGN
Gigabyte Z490 AORUS PRO AX Motherboard Uses An 12+1 Phases Digital CPU Power Design Which Includes Both Digital PWM Controller And DrMOS. These 100% Digital Controller And Additional 8+4 Solid-Pin CPU Power Connectors Offer Incredible Precision In Delivering Power To The Motherboard's Most Power-Hungry And Energy-Sensitive Components, Allowing Enthusiasts To Get The Absolute Maximum Performance From The New Intel 10-Core CPU.
Enhanced Cooling
The Gigabyte Z490 AORUS PRO AX Motherboard Fins-Array II Heatsink, Extra-Large Heatpipe, And Thick Thermal Pad Work To Deliver Lower MOSFET Temperatures. Double-Sided Thermal Guards Help To Quickly Dissipate Heat From The M.2 Solid-State Drives To Avoid Speed Throttling. Smart Fan 5 Allows Users To Interchange Fan Headers To Correspond With The Thermal Sensors Located Across The Motherboard So That The System Stays Cool While Maintaining A High Level Of Performance For Games And Other Demanding Applications. Fan Stop Lets You To Take Control Of Your Computer's Noise Level By Allowing Specified Fans To Halt When The System Drops To A Designated Temperature Level. These Settings May Be Customized According To Your Preferences. Hybrid Fan Headers Automatically Detect The Connected Liquid- Or Air-Cooling Systems, Enabling Smart Fan 5 To Monitor Information Such As Flow-Rate.
Storage And Memory
Two M.2 Slots Are Available, Supporting Up To Type 22110 SATA And PCIe NVMe SSDs. Six SATA III Headers Are Available For Hard Drives And 2.5" SSDs. RAID 0, 1, 5, And 10 Configurations Are Supported. Intel Optane Memory Modules Are Supported, Which Enhance Mechanical Disk Drives By Caching Frequently Accessed Data. Up To 128GB Of Dual-Channel DDR4-5000 (OC) Memory Can Be Installed Across Four Slots.
Designed For Durability
A Stainless Steel Shield Reinforces The PCIe Connectors, Providing Extra Strength To Support Heavy Graphics Cards. The Memory Slots Include Stainless-Steel Shielding, Which Is Designed To Prevent Bending, Twisting, And Distortion In Addition To Protecting Against Possible Electrostatic Interference. Solid Plated ATX 24-Pin And 8-Pin Power Connectors Deliver A Stable Power Supply To Key Components. With The Q-Flash Plus Feature, You Can Update The BIOS Without Having To Install A CPU Or Video Card. Simply Copy The New BIOS File To A USB Flash Drive, Insert It Into The Designated Port, Then Press The Q-Flash Button.
Performance Features
The Gigabyte Z490 AORUS PRO AX Motherboard Features A Digital PWM Controller And DrMOS With 12+1 Power Stages That Can Handle Up To 660A Of Current Total. A Double Copper Layer PCB Design Efficiently Delivers Power To Critical Components At Lower Temperatures.
NVIDIA SLI / AMD CrossFireX Support
Installing Multiple Graphics Cards Will Enhance The Computer's Performance For Demanding Tasks Such As CAD, 3D Rendering, Video Editing, And More. This Motherboard Supports Quad-GPU And 2-Way NVIDIA SLI And AMD CrossFireX Configurations.
Immersive Audio
The Realtek ALC1220-VB Audio Codec Provides Vibrant 7.1-Channel Surround Sound To Your Speakers. 120 DB SNR High-Grade Capacitors Are Used For Feedback Signal Processing.
Network Performance
The 2.5 Gigabit Ethernet Port Provides A Fast Network Connection With High-Speed Data Transfers Using Compatible Devices.
Built-In 802.11ax Dual-Band Wi-Fi Transfers Up To 2.4 Gb/S Of Data Over Compatible Wireless Networks.
The CFosSpeed Network Traffic Management Application To Automatically Allocate Bandwidth So That The Highest Network Priority Goes To Games Or Specified Applications.
Bluetooth 5 Offers A Faster Transmission Rate And 4X The Range Of Bluetooth 4.2.
USB 3.2 Gen 2
Doubling The Speed Of Its Predecessor, USB 3.2 Gen 2 Features A Maximum Throughput Of 10 Gb/S When Used With Compatible Devices.
RGB Fusion 2.0 Lighting
With Gigabyte's RGB Fusion 2.0 Technology, You Can Customize Your Computer By Installing RGB Lighting Strips Alongside Compatible Components And Peripherals For Incredible Effects. Lighting Profiles That Cover Your Entire System, Including The Motherboard, Video Card, And CPU Can Be Configured And Controlled Using The Gigabyte RGB Fusion 2.0 Desktop Software Or Mobile App.
