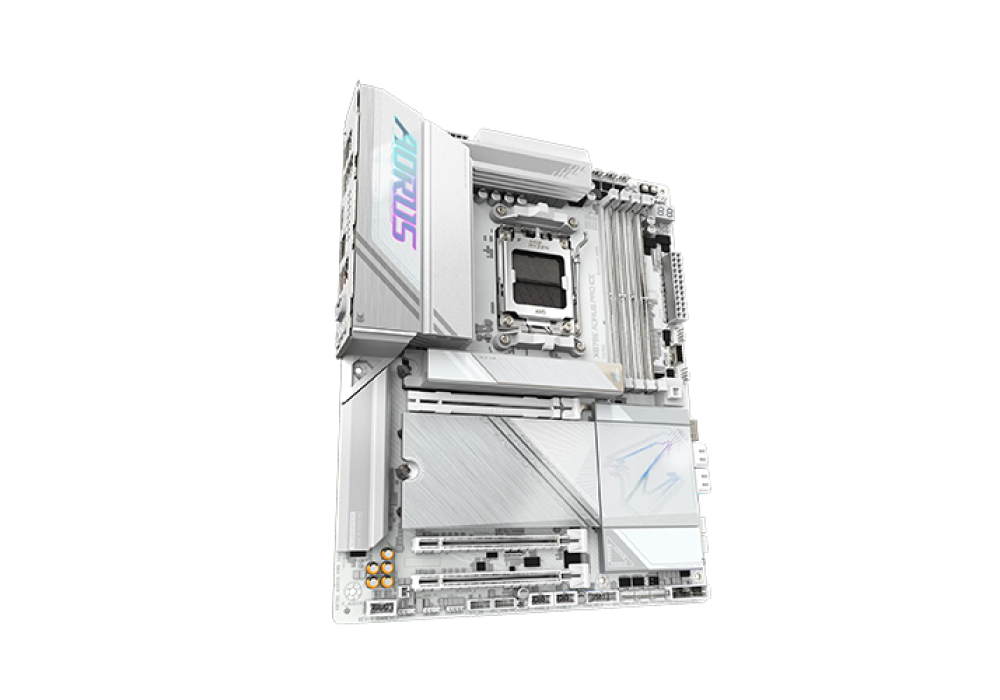

- Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
- Stock: In Stock
- Model: X870E AORUS PRO ICE
- Supported CPU: AMD Ryzen™ 9000 Series Processors
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Memory Max: Up to 256 GB (64 GB per DIMM)
- RAM Type: 4 x DIMMs, Dual Channel DDR5
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD X870E |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Operating System | Support for Windows 11 64-bit |
| Generel information | |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper --------- Back Panel Connectors: 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| External Features | |
| Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Connector & Ports | |
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Warranty Information | |
| Warranty | 03 Years |
Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
Step into the next era of computing with the Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard, a powerhouse designed for gamers, content creators, and performance enthusiasts alike. Built on the advanced AM5 platform and supporting DDR5 memory, this motherboard ensures lightning-fast data transfer, ultra-responsive multitasking, and seamless gaming experiences. Its robust ATX design comes with premium components, enhanced cooling solutions, and superior power delivery, allowing your CPU to perform at its peak under heavy workloads. Featuring the latest connectivity standards, including PCIe 5.0, high-speed USB ports, and next-gen networking capabilities, it provides the ultimate foundation for high-end builds. Whether you’re pushing the limits of gaming, rendering, or streaming, the X870E AORUS PRO ICE delivers unmatched stability, speed, and reliability. Elevate your PC setup with a motherboard engineered for future-ready performance and uncompromising quality.
Key Features of Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard
- AM5 Platform & DDR5 Support: Future-proof motherboard supporting the latest AMD CPUs and ultra-fast DDR5 memory for exceptional performance. Experience lightning-fast data transfer speeds and improved multitasking, making it ideal for gaming, streaming, and content creation.
- Advanced Thermal Design: Equipped with high-quality heatsinks and efficient cooling solutions to maintain stable performance under heavy workloads. The optimized airflow and thermal guards help prevent overheating, ensuring consistent performance during intense gaming or demanding applications.
- PCIe 5.0 & High-Speed Connectivity: Supports next-gen graphics cards and NVMe SSDs for maximum bandwidth and low-latency performance. With multiple high-speed ports, you can connect the latest peripherals and storage devices without compromise.
- Robust Power Delivery: Premium components and enhanced VRM design ensure stable and reliable power for overclocking and demanding tasks. This guarantees your CPU and GPU perform at their peak without instability, even under heavy loads.
- Next-Gen Networking: Integrated high-speed Ethernet and Wi-Fi solutions provide seamless online gaming, streaming, and data transfers. Enjoy low latency connections and consistent network stability for professional or leisure use.
- Customizable RGB & AORUS Software: Fully customizable lighting and performance tuning software allow you to personalize your PC build. Sync RGB with other AORUS components and fine-tune system performance effortlessly for a visually stunning setup.
Build PC with Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard
Looking for a high-performance motherboard? The GIGABYTE AMD X870E AORUS PRO Motherboard from Onix BD delivers unmatched speed, stability, and reliability for modern builds. Perfect for all Motherboard enthusiasts and AMD Ryzen Motherboard users, it supports DDR5 memory, PCIe 5.0 graphics, and advanced cooling for seamless gaming and multitasking. With robust power delivery and customizable RGB lighting, this motherboard ensures your PC performs at its peak. Upgrade your system today with Onix BD’s premium solution designed for gamers and creators alike.
