- Component
- Motherboard
- AMD Ryzen Motherboard
- ASUS
- Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
- Stock: In Stock
- Model: TUF GAMING X870-PLUS WIFI
- Graphics Output: 1 x HDMI, 2 x USB4 (40Gbps)
- Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Processors
- Supported Memory: 4 x DIMM, Max. 192GB, DDR5
| Main Feature | |
| Type | DDR5 |
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback |
| Expansion Slots | |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
| M.2 Socket | Total Supports 4 x M.2 slots |
| Memory Specifications | |
| Slots | 4 x DIMM |
| Supported Memory Type | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Max. Memory | 192GB |
| Connector & Ports | |
| HDMI | 1x HDMI |

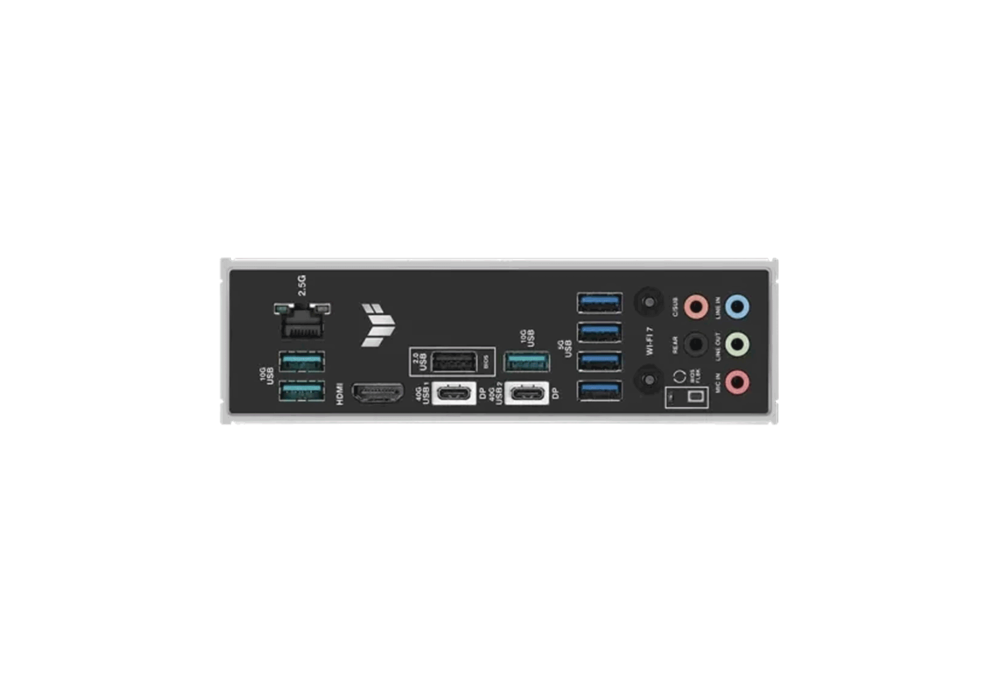

| USB (s) | Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| Supported Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 |
| Graphics | |
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs |
| Features | |
| Other Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0 |
| Others Information | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
The ASUS TUF GAMING X870-PLUS WIFI DDR5 is a cutting-edge ATX motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Powered by the robust AMD X870 chipset, this board delivers exceptional performance, next-gen connectivity, and unmatched durability, making it ideal for gamers, content creators, and PC enthusiasts. With support for DDR5 memory up to 8000+ MT/s (OC) and a max capacity of 192GB, this board ensures high-speed multitasking and future-ready computing. It features four M.2 slots (including PCIe 5.0 x4 for ultra-fast NVMe SSDs) and 2x SATA 6Gb/s ports, offering flexible storage expansion and RAID configurations via AMD RAIDXpert2 Technology. Graphics and display outputs are powered by 1x HDMI port and 2x USB4 Type-C ports, supporting up to 4K displays, perfect for high-definition gaming and productivity. The board also boasts Wi-Fi 7 (802.11be), Bluetooth 5.4, and Intel 2.5Gb Ethernet with TUF LANGuard for top-tier network performance. It includes extensive USB connectivity with 2x USB4 (40Gbps) ports, USB 20Gbps with up to 30W fast charging, and multiple USB 10Gbps/5Gbps/2.0 ports. The premium audio experience is ensured by the Realtek ALC1220P 7.1 codec, featuring studio-grade sound and headphone amplification. ASUS enhances the build experience with Q-Design features like PCIe Q-Release, M.2 Q-Latch, and a pre-mounted I/O shield, while TUF Protection and a comprehensive thermal solution provide long-term reliability. Bundled software includes Armoury Crate, Fan Xpert 4 (AI Cooling II), USB Wattage Watcher, and more. The ASUS TUF GAMING X870-PLUS WIFI DDR5 is the perfect foundation for a powerful, reliable, and future-proof AMD desktop build.
Quick Compare
Comparison of TUF GAMING X870-PLUS WIFI vs X870E AORUS PRO ICE vs X870E Nova WiFi vs ROG STRIX B850-I GAMING WIFI which are most simmiler.
| Product | Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard | Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard | ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard | Asus ROG STRIX B850-I GAMING WIFI AM5 Mini-ITX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | TUF GAMING X870-PLUS WIFI | X870E AORUS PRO ICE | X870E Nova WiFi | ROG STRIX B850-I GAMING WIFI |
| Brand | Asus | Gigabyte | ASRock | Asus |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 1 reviews. |
Based on 0 reviews. |
| Summary | Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX MotherboardThe ASUS TUF GAMING X870-PLUS WIFI DDR5 is a cutting-edge ATX motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Powered by the robust AMD X870 chipset, this board delivers exceptional performance, next-gen connectivity, and unmatched durability, making it ideal for gamers, content creators, and PC enthusiasts. With support for DDR5 memory up to 8000+ MT/s (OC) and a max capacity of 192GB, this board ensures high-speed multitasking and future-ready computing. It features four M.2 slots (including PCIe 5.0 x4 for ultra-fast NVMe SSDs) and 2x SATA 6Gb/s ports, offering flexible storage expansion and RAID configurations via AMD RAIDXpert2 Technology. Graphics and display outputs are powered by 1x HDMI port and 2x USB4 Type-C ports, supporting up to 4K displays, perfect for high-definition gaming and productivity. The board also boasts Wi-Fi 7 (802.11be), Bluetooth 5.4, and Intel 2.5Gb Ethernet with TUF LANGuard for top-tier network performance. It includes extensive USB connectivity with 2x USB4 (40Gbps) ports, USB 20Gbps with up to 30W fast charging, and multiple USB 10Gbps/5Gbps/2.0 ports. The premium audio experience is ensured by the Realtek ALC1220P 7.1 codec, featuring studio-grade sound and headphone amplification. ASUS enhances the build experience with Q-Design features like PCIe Q-Release, M.2 Q-Latch, and a pre-mounted I/O shield, while TUF Protection and a comprehensive thermal solution provide long-term reliability. Bundled software includes Armoury Crate, Fan Xpert 4 (AI Cooling II), USB Wattage Watcher, and more. The ASUS TUF GAMING X870-PLUS WIFI DDR5 is the perfect foundation for a powerful, reliable, and future-proof AMD desktop build... | Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard Step into the next era of computing with the Gigabyte X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard, a powerhouse designed for gamers, content creators, and performance enthusiasts alike. Built on the advanced AM5 platform and supporting DDR5 memory, this motherboard ensures lightning-fast data transfer, ultra-responsive multitasking, and seamless gaming experiences. Its robust ATX design comes with premium components, enhanced cooling solutions, and superior power delivery, allowing your CPU to perform at its peak under heavy workloads. Featuring the latest connectivity standards, including PCIe 5.0, high-speed USB ports, and next-gen networking capabilities, it provides the ultimate foundation for high-end builds. Whether you’re pushing the limits of gaming, rendering, or streaming, the X870E AORUS PRO ICE delivers unmatched stability, speed, and reliability. Elevate your PC setup with a motherboard engineered for future-ready performance and uncompromising quality. Key Features of Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard AM5 Platform & DDR5 Support: Future-proof motherboard supporting the latest AMD CPUs and ultra-fast DDR5 memory for exceptional performance. Experience lightning-fast data transfer speeds and improved multitasking, making it ideal for gaming, streaming, and content creation. Advanced Thermal Design: Equipped with high-quality heatsinks and efficient cooling solutions to maintain stable performance under heavy workloads. The optimized airflow and thermal guards help prevent overheating, ensuring consistent performance during intense gaming or demanding applications. PCIe 5.0 & High-Speed Connectivity: Supports next-gen graphics cards and NVMe SSDs for maximum bandwidth and low-latency performance. With multiple high-speed ports, you can connect the latest peripherals and storage devices without compromise. Robust Power Delivery: Premium components and enhanced VRM design ensure stable and reliable power for overclocking and demanding tasks. This guarantees your CPU and GPU perform at their peak without instability, even under heavy loads. Next-Gen Networking: Integrated high-speed Ethernet and Wi-Fi solutions provide seamless online gaming, streaming, and data transfers. Enjoy low latency connections and consistent network stability for professional or leisure use. Customizable RGB & AORUS Software: Fully customizable lighting and performance tuning software allow you to personalize your PC build. Sync RGB with other AORUS components and fine-tune system performance effortlessly for a visually stunning setup. Build PC with Gigabyte X870E AORUS PRO ICE DDR5 ATX Motherboard Looking for a high-performance motherboard? The GIGABYTE AMD X870E AORUS PRO Motherboard from Onix BD delivers unmatched speed, stability, and reliability for modern builds. Perfect for all Motherboard enthusiasts and AMD Ryzen Motherboard users, it supports DDR5 memory, PCIe 5.0 graphics, and advanced cooling for seamless gaming and multitasking. With robust power delivery and customizable RGB lighting, this motherboard ensures your PC performs at its peak. Upgrade your system today with Onix BD’s premium solution designed for gamers and creators alike... | ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard – Premium Platform for Next-Gen Ryzen Builds The ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard is a top-tier foundation for high-performance AMD Ryzen 7000 and future-generation systems. Built with the AM5 socket and support for DDR5 memory, this motherboard delivers exceptional bandwidth, responsiveness, and stability for demanding gaming, content creation, and productivity workloads. Integrated WiFi ensures fast and reliable wireless connectivity right out of the box, while the ATX form factor provides ample space for expansion and cooling solutions. With advanced power delivery, robust thermal design, and versatile connectivity options including PCIe 5.0, USB 3.2 Gen 2×2, and multiple M.2 slots, the X870E Nova is ideal for enthusiasts and professionals seeking cutting-edge performance and future-proof features. Features of ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard AM5 socket supporting AMD Ryzen 7000 and newer processors DDR5 memory support for high-speed performance Built-in WiFi for seamless wireless networking ATX form factor with strong expandability PCIe 5.0 slots for next-gen graphics and storage Multiple M.2 NVMe SSD slots and USB 3.2 Gen 2×2 ports Next-Gen Performance with DDR5 & PCIe 5.0 The ASRock X870E Nova combines DDR5 memory support with PCIe 5.0 readiness to provide the fastest possible data pathways for memory, graphics, and storage, ensuring high-end performance for gaming, content creation, and professional applications. Built-In WiFi & Modern Connectivity With integrated WiFi, high-speed LAN, and abundant USB connectivity, this motherboard delivers versatile networking and peripheral support without needing additional expansion cards. Multiple M.2 slots also allow lightning-fast NVMe storage configurations. Why Choose ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard? Choose the ASRock X870E Nova for a premium AMD platform that combines future-ready technology, robust build quality, and comprehensive connectivity. It’s an excellent choice for gamers, creators, and power users building high-end AMD PCs. Benefits of ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard Support for the latest Ryzen processors and DDR5 memory Built-in WiFi for fast wireless connectivity Next-gen PCIe 5.0 support for graphics and SSDs Flexible storage and expansion options Excellent build quality and stability Frequently Asked Questions (FAQ) Q1: Does this motherboard support AMD Ryzen 7000 series CPUs?A1:Yes, it supports AMD Ryzen 7000 series and future AM5 processors. Q2: Does it include built-in WiFi?A2:Yes, the ASRock X870E Nova comes with integrated WiFi for wireless networking. Q3: What memory type does this motherboard support?A3:It supports high-speed DDR5 memory modules... | Asus ROG STRIX B850-I GAMING WIFI AM5 Mini-ITX MotherboardThe Asus ROG STRIX B850-I GAMING WIFI AM5 Mini-ITX Motherboard is a high-performance, feature-packed solution for compact gaming builds. Designed with the AMD AM5 socket, it supports Ryzen 9000, 8000, and 7000 series processors, making it future-ready and ideal for modern gamers and creators alike. Despite its small Mini-ITX form factor (6.7 x 6.7 inches), this board doesn’t compromise on power or versatility. It features support for DDR5 memory up to 128GB, with speeds up to 8400+ MT/s (OC), and includes dual M.2 slots (PCIe 5.0 and 4.0 compatible depending on CPU) alongside two SATA 6Gb/s ports for flexible storage options. For graphics, it offers a PCIe 5.0 x16 slot with Q-Release Slim for easy GPU installation. The connectivity suite is cutting-edge, featuring Wi-Fi 7, Bluetooth 5.4, and Intel 2.5Gb Ethernet for ultra-fast networking. It includes 13 USB ports in total, with USB 20Gbps Type-C, multiple 10Gbps, and a Type-C with DisplayPort Alt Mode, supporting 4K@60Hz output alongside an HDMI 2.1 port. Exceptional audio is delivered by the ROG SupremeFX ALC4080 codec, supporting 7.1 surround sound, enhanced by premium components, Savitech AMP, and optical S/PDIF output. The board also features Aura Sync RGB headers, Q-LED diagnostic indicators, BIOS FlashBack™, Clear CMOS, and a pre-mounted I/O shield, making DIY builds easier and cleaner. Optimized for small-form-factor enthusiasts, the ROG STRIX B850-I includes robust thermal solutions like M.2 heatsinks and comprehensive fan headers. Bundled software like Armoury Crate, Fan Xpert 4, and a suite of ROG tools complete the premium experience. With its balance of size, power, and premium features, this motherboard is an ideal choice for high-end Mini-ITX builds. It comes backed by a 3-year warranty for peace of mind... |
