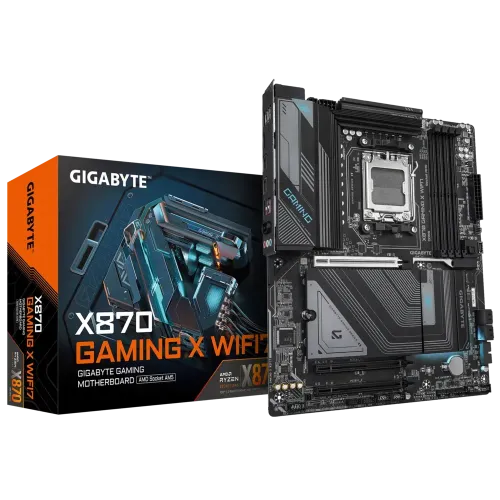

Model: X870 GAMING X WIFI7
View More Info...
Chat Through
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors |
| Chipset | AMD X870 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Memory Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory Type | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Max. Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
| HDMI | 1 x HDMI port |
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Manufacturing Warranty | 3 Years |
Built on the AMD X870 chipset, this motherboard incorporates a robust BIOS featuring a 256 Mbit flash and licensed AMI UEFI BIOS, ensuring a smooth and secure startup experience. Its ATX form factor (30.5cm x 24.4cm) offers ample space for connectivity and expansion, catering to users who require flexibility in their builds.
The memory architecture is particularly impressive, featuring four DDR5 DIMM slots that support memory speeds of up to 8000 MT/s (when overclocked), with a maximum capacity of 256 GB. This dual-channel configuration allows for high data throughput, enhancing overall system performance. Furthermore, the motherboard supports both AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) technologies, providing users with the tools needed for optimal memory tuning.
When it comes to graphics, the integrated AMD Radeon™ Graphics processor supports advanced resolutions and refresh rates. Users can connect displays via an HDMI port that supports 4096x2160@60 Hz, or through two USB4® USB Type-C® ports capable of 3840x2160@240 Hz, ensuring a visually stunning experience for gaming or multimedia consumption.
Connectivity options are abundant, with a comprehensive array of USB ports including USB 3.2 Gen 2 and USB 2.0 connections, along with Realtek 2.5GbE LAN for high-speed wired networking. The onboard AMD Wi-Fi 6E RZ616 module enhances wireless connectivity, supporting various frequency bands (2.4/5/6 GHz) and Bluetooth 5.2 for versatile device pairing.
In terms of storage, the X870 GAMING X offers multiple M.2 slots for NVMe SSDs, supporting both PCIe 4.0 and 5.0 standards, as well as four SATA 6Gb/s connectors. This configuration allows for RAID setups, including RAID 0, 1, 5, and 10, enhancing data security and performance.
For audio, the motherboard is equipped with a Realtek Audio CODEC, supporting high-definition audio configurations up to 7.1 channels. It also includes various headers for fans and RGB lighting, making it easier to customize and manage thermal performance and aesthetics.
Special features like GIGABYTE Control Center, Q-Flash, and Smart Backup utilities enhance the user experience by simplifying system management and updates. With a three-year manufacturing warranty, the GIGABYTE X870 GAMING X WIFI7 motherboard stands out as a top-tier choice for anyone aiming to build a high-performance PC that meets modern computing demands.
