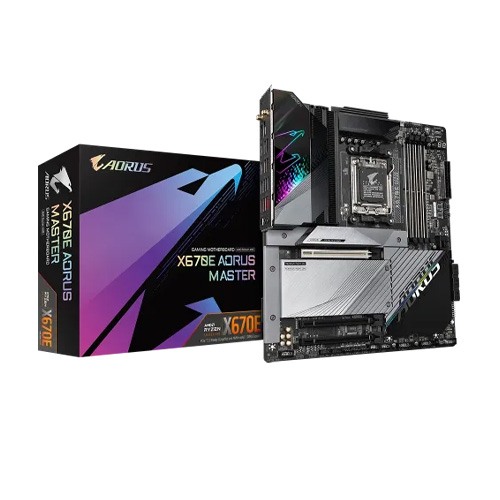

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

Name: GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard
Brand: Gigabyte
Availability: InStock
Rating: 1 (1 reviews)

Out of Stock

Model: X670E AORUS MASTER

Key Features

Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 128GB
Graphics Output: 1 x DisplayPort, 1 x USB Type-C, 1 x HDMI
Features: Intel 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax

View More Info...

(0 reviews)

0৳

Chat Through

Specification

Basic Information

Supported CPU	AMD Socket AM5, support for : AMD Ryzen 8000 & 7000 Series Processors
Chipset	AMD X670
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	E-ATX Form Factor; 30.5cm x 26.9cm
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel output * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI

CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
* The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors
will become unavailable when a device is installed in the PCIEX2 slot.
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Memory Specifications

Memory Type	DDR5
Slots	4 DIMMs
Supported Memory Type	Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

Connector & Ports

HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 6 x SATA 6Gb/s connectors
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Graphics

Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum
resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

Warranty Information

Manufacturing Warranty

3 Years

Description

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard is a high-performance motherboard engineered for gamers, enthusiasts, and power users. Designed to support AMD's Ryzen 8000 and 7000 series processors, this motherboard features the AMD Socket AM5, ensuring compatibility with the latest cutting-edge CPUs. At its core, the X670E AORUS MASTER is powered by the AMD X670 chipset, offering robust performance and advanced features. It includes a 256 Mbit flash BIOS with support for AMI UEFI BIOS, providing a seamless and intuitive user experience. The motherboard's E-ATX form factor, measuring 30.5cm x 26.9cm, allows for a spacious layout with ample room for expansion. Audio enthusiasts will appreciate the Realtek ALC1220-VB CODEC, supporting DTS Ultra and high-definition audio with 2/4/5.1/7.1-channel output, ensuring immersive sound quality. The motherboard also offers flexibility with its three PCI Express slots, supporting PCIe 5.0, 4.0, and 3.0 standards, making it ideal for multi-GPU setups with AMD CrossFire technology. Memory support is equally impressive, with four DIMM slots that accommodate up to 128 GB of DDR5 memory, supporting speeds up to 6600 MT/s with AMD EXPO and XMP profiles. For graphics, the integrated DisplayPort and HDMI ports support resolutions up to 4096x2160@60 Hz, perfect for high-definition displays. Connectivity options are abundant, including multiple USB ports, Intel 2.5GbE LAN, and Intel Wi-Fi 6E AX210 with Bluetooth 5.3. Storage options include four M.2 connectors and six SATA 6Gb/s connectors, with support for RAID configurations. The X670E AORUS MASTER also includes special features like GIGABYTE Control Center, Q-Flash, and Smart Backup, all backed by a 3-year manufacturing warranty, making it a reliable and versatile choice for your next build.

Features

AMD Ryzen 8000 & 7000 Series Support: Compatible with the latest AMD processors using the AMD Socket AM5, offering top-tier performance.
DDR5 Memory Support: Accommodates up to 128 GB of DDR5 RAM across four DIMM slots, with speeds up to 6600 MT/s, supporting both AMD EXPO and XMP profiles for enhanced memory performance.
Advanced Chipset: Powered by the AMD X670 chipset, delivering cutting-edge features and high efficiency for demanding applications.
High-Speed PCIe 5.0 Slots: Includes a PCIe 5.0 x16 slot for the latest GPUs, along with PCIe 4.0 and PCIe 3.0 slots, supporting multi-GPU setups with AMD CrossFire technology.
Integrated Graphics: Features DisplayPort and HDMI ports, supporting resolutions up to 4096x2160@60 Hz, with HDR and high-definition video output.
Versatile Storage Options: Provides four M.2 connectors (with PCIe 5.0 and 4.0 support) and six SATA 6Gb/s connectors, with RAID 0, 1, and 10 support for both NVMe and SATA drives.
Advanced Networking: Equipped with Intel 2.5GbE LAN for fast wired connections, along with Intel Wi-Fi 6E AX210 and Bluetooth 5.3 for high-speed wireless networking.
Premium Audio: Realtek ALC1220-VB CODEC with DTS
Ultra support, delivering high-definition 7.1-channel audio for an immersive experience.
Extensive USB Connectivity: Offers multiple USB 3.2 Gen 2 and Gen 1 ports, including Type-C, for fast data transfer and versatile peripheral connections.
Robust Build: E-ATX form factor, designed for high-end gaming and professional setups, ensuring durability and optimal cooling.
Exclusive Features: Includes GIGABYTE Control Center (GCC) for system management, Q-Flash and Q-Flash Plus for easy BIOS updates, and Smart Backup for data security.
3-Year Warranty: Ensures long-term reliability and peace of mind with a solid warranty.
