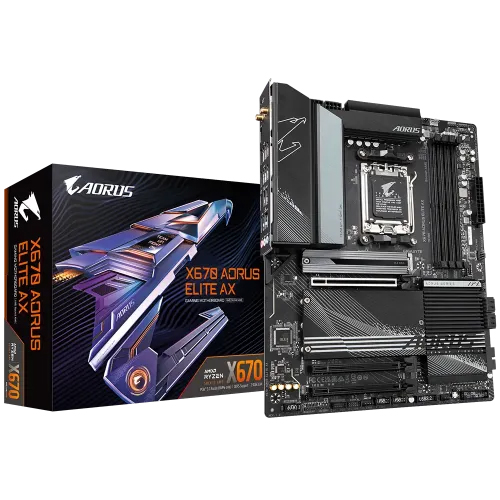

Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
-100 % Out Of Stock
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: X670 AORUS ELITE AX
  • Product ID: 4443
38,800৳
0৳
EMI starts at 13,606৳/month. View all 25 banks EMI plans >

Key Features

    • Supported CPU Ryzen 7000 Series Processors for Socket AM5
    • Supported RAM 4x DDR5 Max 128GB
    • Graphics Output 1 x HDMI
    • Features 2.5GbE LAN Wi-Fi 6E 802.11ax
অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Chipset AMD X670
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Memory Specifications
Type DDR5
Slots 4 DIMMs
Supported Memory Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Max. Memory Up to 128 GB (32 GB single DIMM capacity) of system memory
Connector & Ports
HDMI 1 x HDMI port
USB (s) CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THB_U4 add-in card connector
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Graphics
Graphics Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Warranty Information
Manufacturing Warranty 03 years

Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

The Gigabyte X670 AORUS ELITE AX Motherboard supports AMD Ryzen 7000 Series Processors for AMD socket AM5. It can deliver unparalleled performance with direct 16+2+2 Phases Digital VRM Solution. The Gigabyte X670 AORUS ELITE AX Motherboard comes with 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. It supports DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules. It features 4x PCIe 5.0 x4 M.2 Connectors for next-generation storage. It has a Fins-Array III & M.2 Thermal Guard III to Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance. The new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increases surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full-size ATX motherboard PCBs, therefore it tremendously boosts thermal efficiency and heat exchange performance. It also comes with SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design. M.2 Thermal Guard III is constructed with a 9X optimized heat dissipation surface to prevent throttling and bottleneck that the high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload. The special design of heatsink grooves in the direction of the CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency. The Gigabyte X670 AORUS ELITE AX Motherboard is equipped with the latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission.
