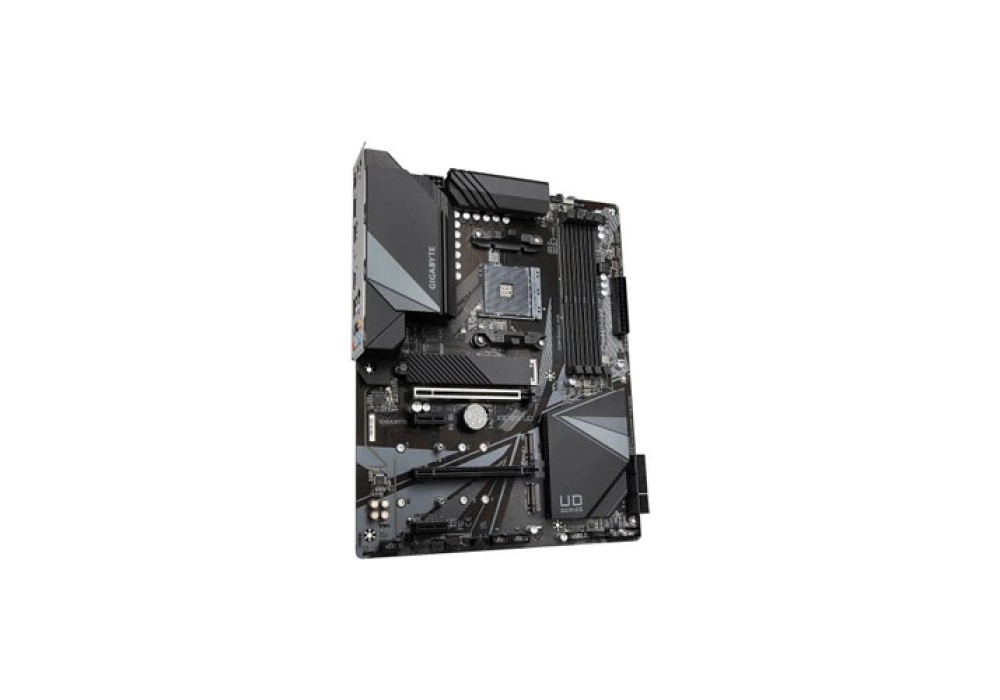

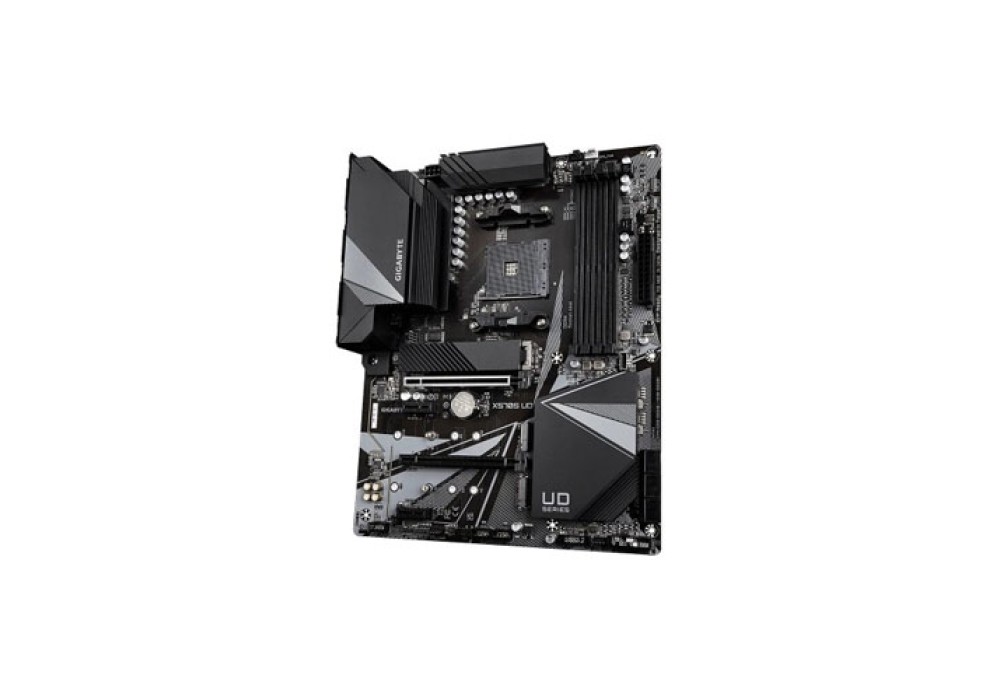

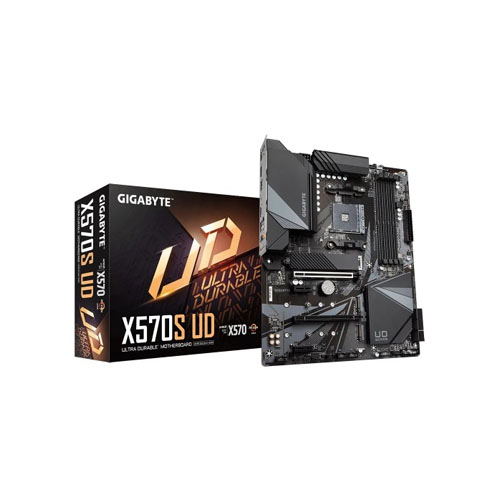

Gigabyte X570S UD AMD Motherboard

Basic Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000
G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD
Ryzen 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset AMD X570
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Graphics Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supported Memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) /
2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Maximum Memory 128GB
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 4.0(Note)/3.0 x2 mode
The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors
will become unavailable when a device is installed in the PCIEX2 slot.
2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset:
Supporting PCIe 4.0(Note)/3.0
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and
PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000
Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
Connector & Ports
HDMI 1 x HDMI port
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available
through the internal USB header)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242
/2260/ 2280/ 22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and
PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000
Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2
SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/
2260/ 2280/ 22110 SSDs:
Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
Audio 1 x front panel audio header
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the
capability of delivering up to 2A/12V @ 24W.

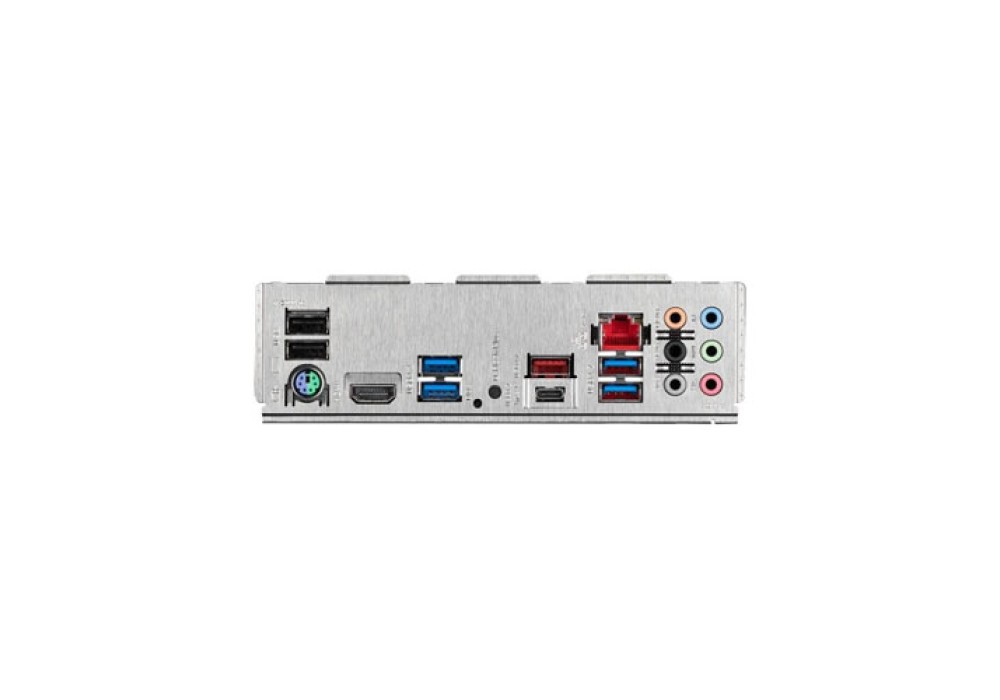

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
6 x audio jacks
I/O Controller:
iTE I/O Controller Chip
Others Information
Special Features Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of
each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years

FEATURES:

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Fast 2.5GbE LAN with Bandwidth Management
  • Rear and Front USB3.2 Type-C for Fast and Versatile Connections
  • High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card

Gigabyte X570S UD AMD Motherboard

Gigabyte X570S UD Motherboard Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard comes with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x 4 M.2 with Thermal Guard, Fast 2.5GbE LAN with Bandwidth Management and Rear and Front USB3.2 Type-C for Fast and Versatile Connections. In this X570S UD motherboard uses an unprecedented and innovative thermal design, that ensures the best CPU, Chipset, SSD stability, and low temperatures under full loading application and gaming. The X570S UD provides all next-generation network, storage, and connectivity to keep you up to speed. This motherboard has High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. In this Gigabyte X570S UD motherboard, the RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the Gigabyte X570S UD motherboard and reinforce every slot to make each of them solid and durable.
