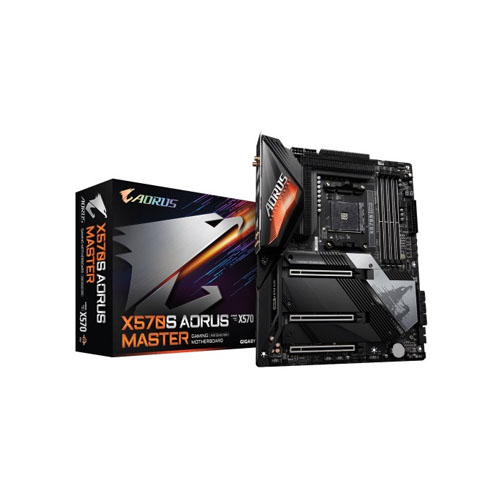

Gigabyte X570S AORUS MASTER AMD ATX Motherboard

Basic Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/
Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/
AMD Ryzen 3000 Series Processors/ AMD Ryzen
3000 G-Series Processors/ AMD Ryzen 2000 Series
Processors/ AMD Ryzen 2000 G-Series Processors
Chipset AMD X570
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB audio CODEC
* The front panel line out jack supports DSD audio.
ESS SABRE9118 DAC chip
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Graphics
Graphics Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies
For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series
Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000
Series Processors only.
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM
capacity) of system memory
Supported Memory AMD Ryzen 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/
4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 /
2400 / 2133 MHz memory modules
AMD Ryzen 4000 G-Series processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) /
4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 /
2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen 3000 Series processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/
4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.)
/ 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 /
2400 / 2133 MHz memory modules
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series
Processors/
AMD Ryzen 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.)
/ 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
memory moduleses
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series
Processors support PCIe 4.0 x16 mode
AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series
Processors support PCIe 3.0 x16 mode
AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series
Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series
Processors support PCIe 4.0 x8 mode
AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series
Processors support PCIe 3.0 x8 mode
AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series
Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When
the PCIEX8 slot is populated, the PCIEX16 slot operates at up
to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector.
The PCIEX4 slot becomes unavailable when a device is
installed in the M2C_SB connector.
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting
Socket 3, M key, type 2242/2280/22110 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset,
supporting Socket 3, M key, type 2242/2280/22110 SSDs
Connector & Ports
USB (s) CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia USB 3.2 Gen 2x2 Controller:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2
support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through
the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports, available through the internal USB
headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available
through the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series
Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen
2000 G-Series Processors support SATA and PCIe 3.0 x4/x2
SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset,
supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
Audio Internal: 1 x front panel audio header
Back Panel: 5 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-
TPM2.0_S module only)
1 x Thunderbolt add-in card connector
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS jumper
Voltage Measurement Points
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each applicationmay also vary
depending onmotherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years

FEATURES:

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
  • Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
  • Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
  • Intel® WiFi 6E 802.11ax & BT 5.2
  • Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Gigabyte X570S AORUS MASTER AMD ATX Motherboard

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.

Direct Power Design

GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.

GIGABYTE Active OC Tuner

With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
