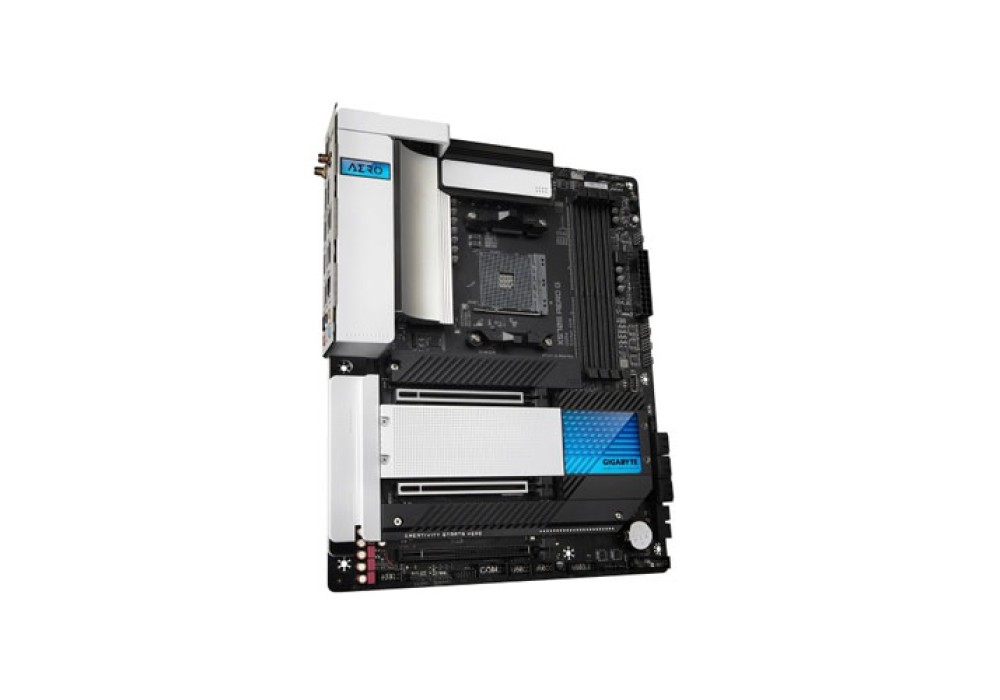

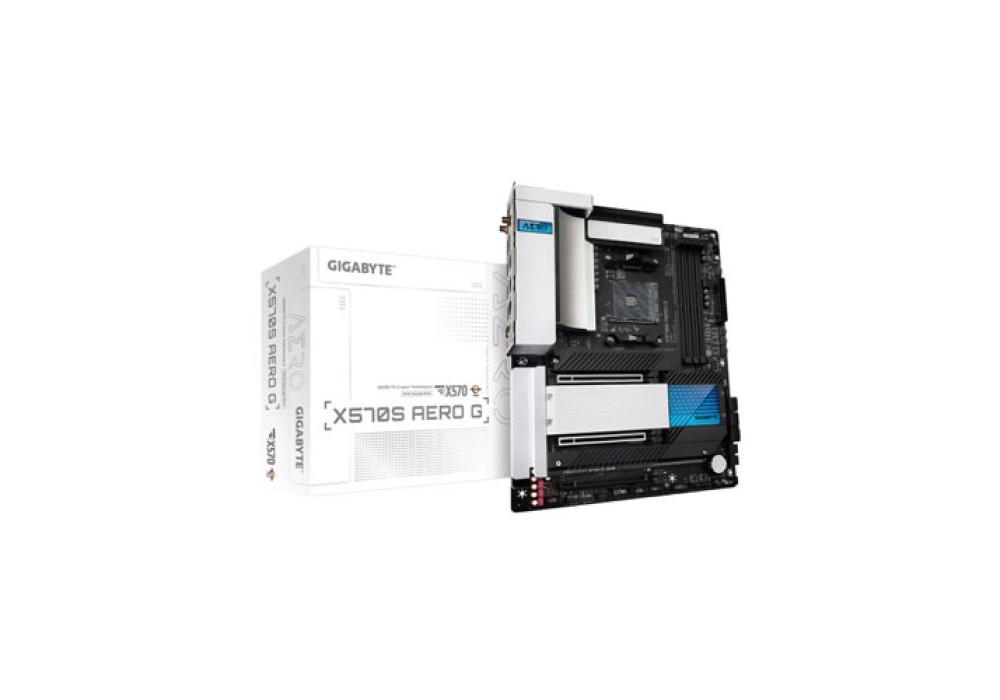

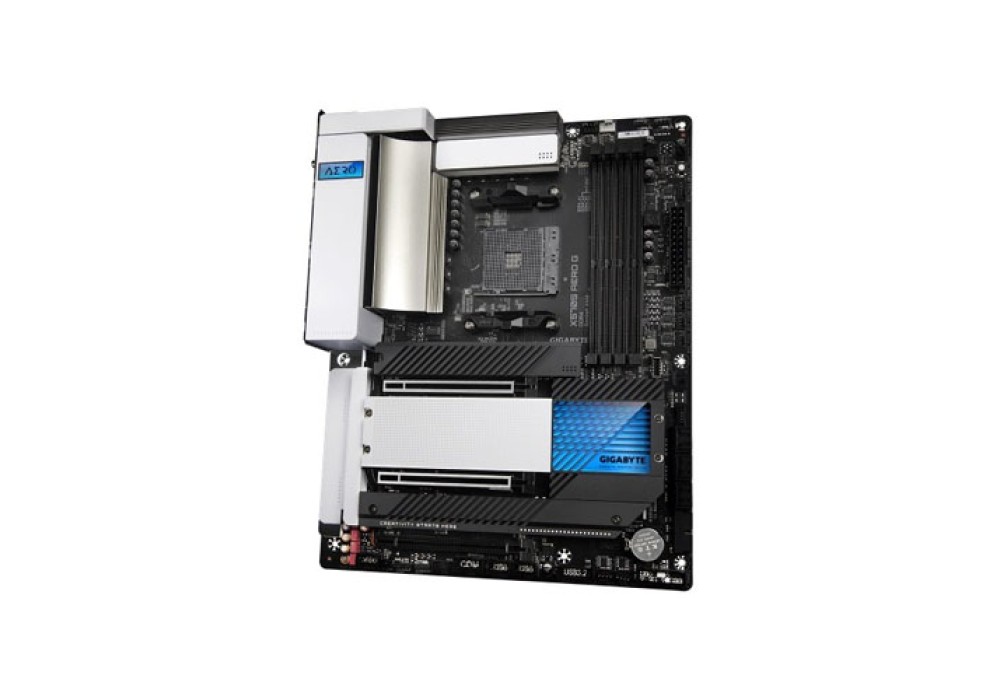

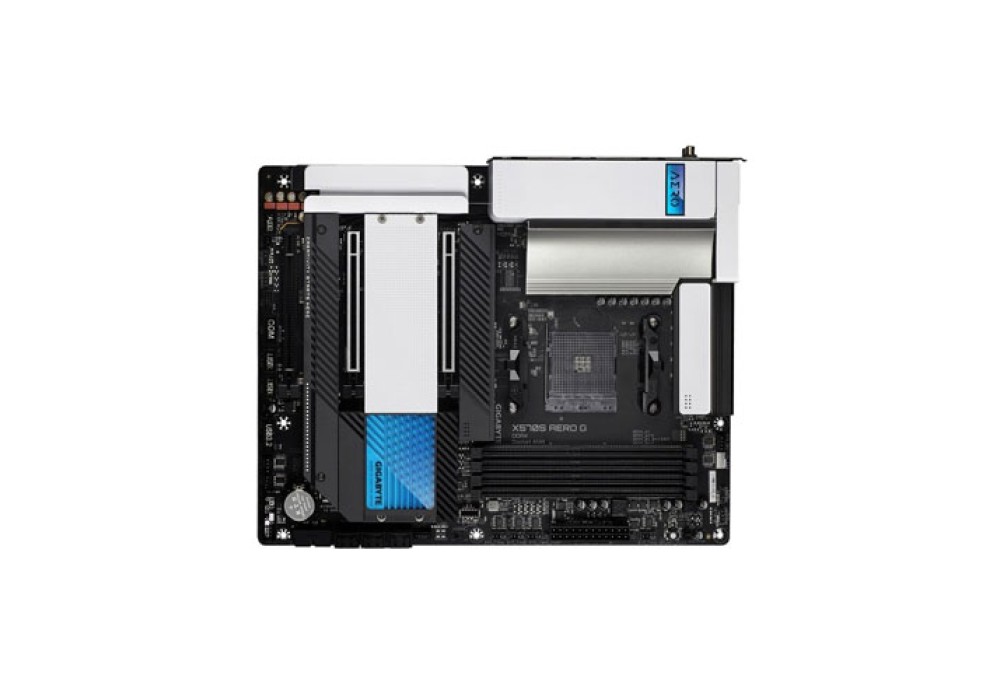

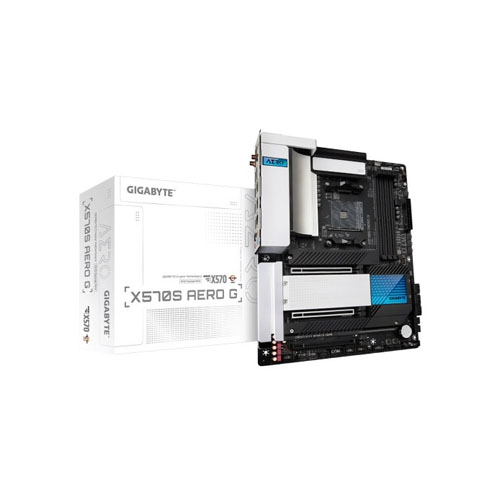

Gigabyte X570S AERO G AMD ATX Motherboard

Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Out Of Stock
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
Gigabyte X570S AERO G AMD ATX Motherboard
  • Stock: Out Of Stock
  • Model: X570S AERO G
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Support Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors
    • Dual-Channel DDR4 memory, 4 DIMMs
    • VisionLINK I/O design and Wi-Fi 6 2x2 802.11ax
    • 4 Ultra-Fast NVMe PCIe x4 M.2 connectors
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/
Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/
AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series
Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen
2000 G-Series Processors
Chipset AMD X570
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors support PCIe 4.0 x16 mode
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series
Processors support PCIe 3.0 x16 mode
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series
Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors support PCIe 4.0 x8 mode
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series
Processors support PCIe 3.0 x8 mode
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series
Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When
the PCIEX8 slot is populated, the PCIEX16 slot operates at up
to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector.
The PCIEX4 slot becomes unavailable when a device is
installed in the M2C_SB connector.
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2280/22110 SSDs:
Memory Specifications
Memory Type Dual channel memory architecture
Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM
capacity) of system memory
Supported Memory Type AMD Ryzen 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/
4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 /
2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen 4000 G-Series processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) /
4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 /
2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen 3000 Series processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/
4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 /
2400 / 2133 MHz memory modules
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series
Processors/ AMD Ryzen 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.)
/ 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
memory moduleses
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory 128 GB

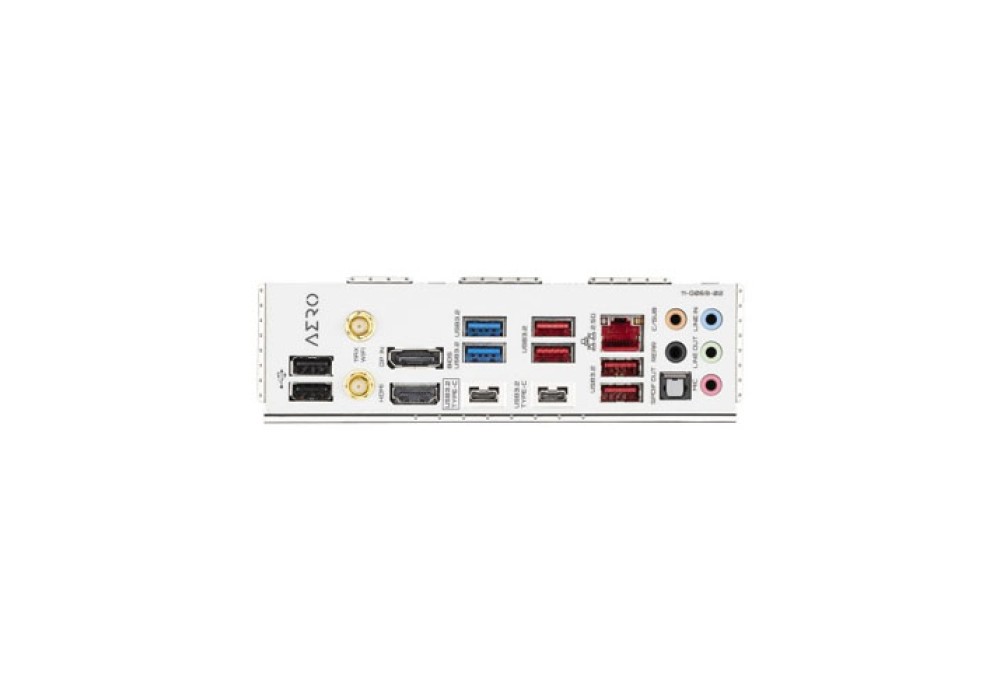

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s) CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1
support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia USB 3.2 Gen 2x2 Controller:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2
support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through
the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB
headers
Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series
Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen
2000 G-Series Processors support SATA and PCIe 3.0 x4/x2
SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting
Socket 3, M key, type 2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series
Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
Audio Internal: 1 x front panel audio header
Back Panel: 5 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the
GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button
Graphics
Graphics Integrated Graphics Processor:
1 x USB Type-C port, supporting USB Type-C and DisplayPort video
outputs and a maximum resolution of 4096x2304@60 Hz
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.4 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of
4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000
G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen
2000 Series Processors only.
Max Shared Memory 16 GB
Others Information
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each application may also vary
depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years
Description

FEATURES:

  • Support AMD Ryzen™ 5000 series / Ryzen™ 5000 G series / Ryzen™ 4000 G series / Ryzen™ 3000 series / Ryzen™ 3000 G series / RYZEN 2000 series / Ryzen™ 2000 G series processors
  • Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
  • Go further without more cables by VisionLINK I/O design
  • High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
  • Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal
  • Comprehensive connectivity by front and rear USB 3.2 Type-C® connectors
  • 4 Ultra-Fast NVMe PCIe® x4 M.2 connectors with unique thermal guards
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Gigabyte X570S AERO G AMD ATX Motherboard

The Gigabyte X570S AERO G Motherboard From Gigabyte. The Gigabyte X570S AERO G Motherboard Are A New Take On The Developing Developer With Streamlined Content Creation Capabilities To Provide Dependable Computing Power, Impressive Connectivity, Expandable Graphics, And Ultra-Fast Storage For Developers To Take Care Of The Load-Length Video Production. VisionLINK Is An Extension Of Your Idea And Your Creation. Transferring Data, Video Output And Charging Over A USB Type-C® Cable Simplifies The User Experience More Than Ever. Work Like A Pro With Seamless Multitasking Between Your PC And Devices Using Intel® 2.5G LAN Provides Network Connectivity Of Up To 2.5GbE With Transfer Speeds That Are At Least 2x Faster Compared To General 1GbE Networks. Multigraph Configurations Provide Better Graphics Performance For Applications That Require The Fastest Frame Rates, Without Compromising On Resolution.Gigabyte X570S AERO G Motherboard Has Multi-Graphics Settings Provide Better Graphics Performance For Applications That Require The Highest Frame Rates Without Compromising Resolution Multi-Graphics Settings Provide Better Graphics Performance For Applications That Require The Highest Frame Rates Without Sacrificing DTS Resolution: X Ultra Is Capable To Bring A True Premium Offering To Consumers High Quality Entertainment Experience By Completely Enclosing The Listener And Expanding The Sound Stage To Create A More Immersive Environment.
