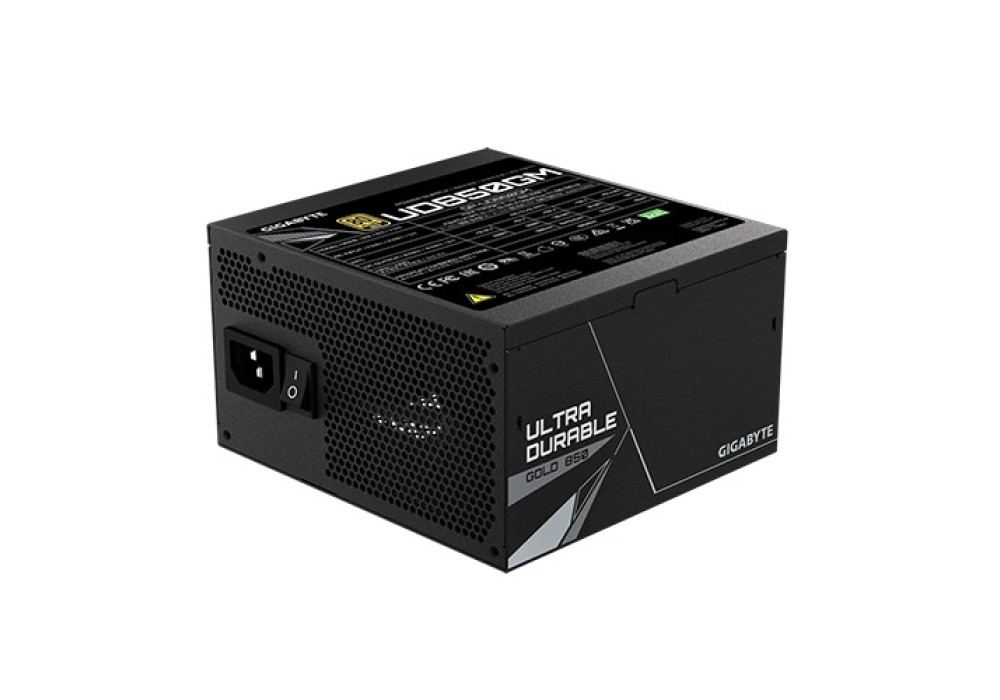

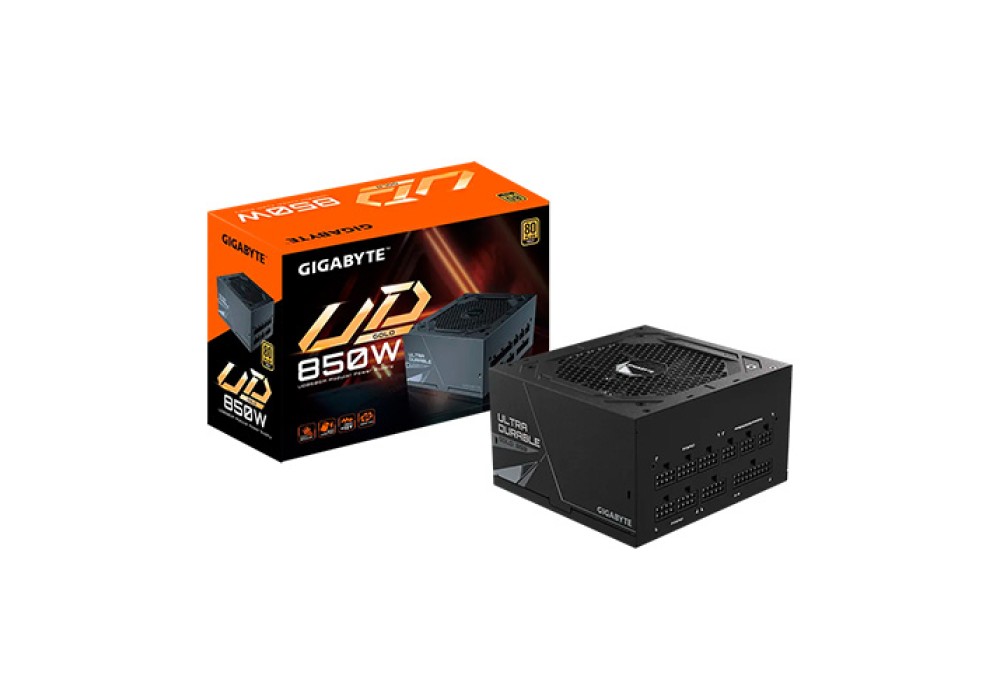

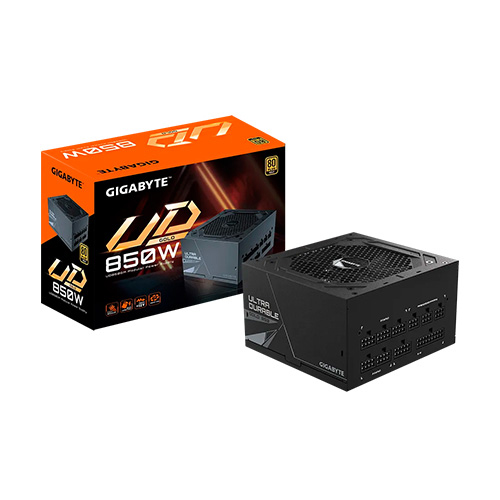

GIGABYTE GP-UD850GM 850W 80 PLUS GOLD FULL MODULAR POWER SUPPLY

Power Supply
Connector ATX Main Connectors : 1
EPS Connectors : 2
PCIe Connectors : 4
SATA Power Connectors : 8
4-Pin Peripheral Connectors : 3
Floppy Connectors : 1
Efficiency 90% at typical load
HOLD UP TIME >16ms
INPUT CURRENT 12-6A
INPUT FREQUENCY RANGE 60-50 Hz
INPUT VOLTAGE 100-240 Vac (full range)
MTBF >100,000 hours
Key Features
Type Intel Form Factor ATX 12V v2.31
Physical Specification
Dimension 150 x 140 x 86 mm
Warranty Information
Warranty 3 year

GIGABYTE GP-UD850GM 850W 80 PLUS GOLD FULL MODULAR POWER SUPPLY

GIGABYTE GP-UD850GM 850W Power Supply combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under a low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life. In order to make sure the entire computer system operates stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP, and SCP but also ensured the stable operation of your system through the safety certification of various countries. 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat, and less fan noise. Single +12V rail provides the best power output, stability, and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
