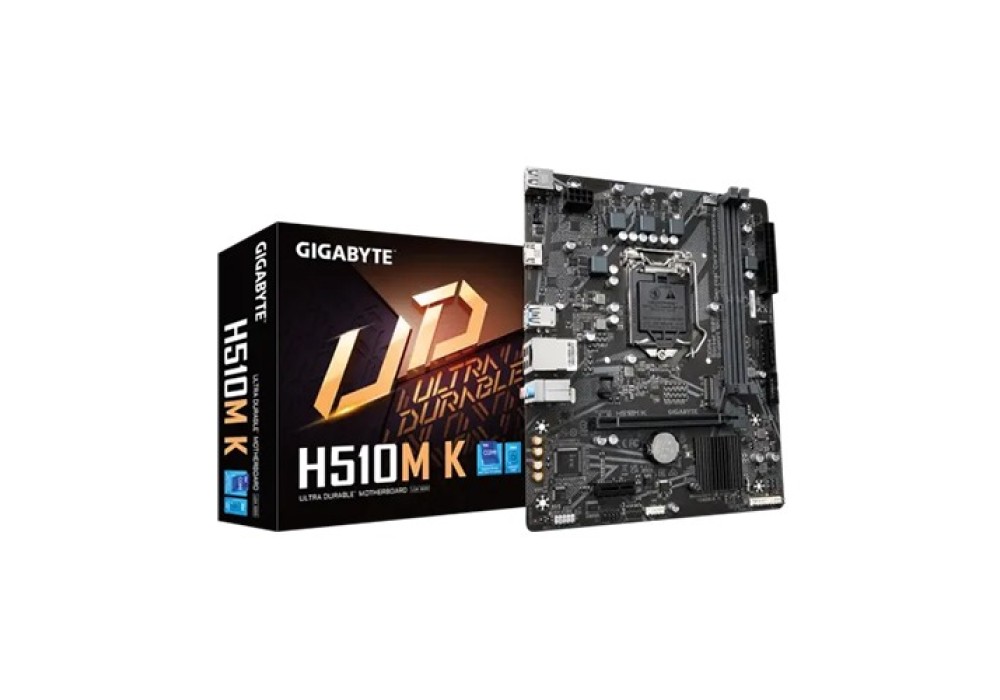

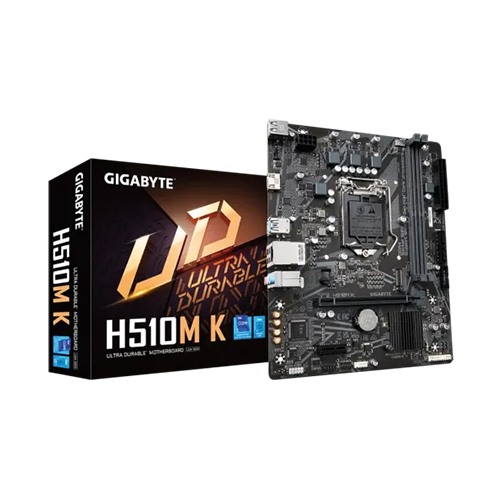

GIGABYTE H510M K Intel Micro ATX Motherboard

GIGABYTE H510M K Intel Micro ATX Motherboard
GIGABYTE H510M K Intel Micro ATX Motherboard
GIGABYTE H510M K Intel Micro ATX Motherboard
-2 %
GIGABYTE H510M K Intel Micro ATX Motherboard
GIGABYTE H510M K Intel Micro ATX Motherboard
GIGABYTE H510M K Intel Micro ATX Motherboard
GIGABYTE H510M K Intel Micro ATX Motherboard
  • Stock: In Stock
  • Model: H510M K
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
9,100৳
9,299৳
EMI starts at 3,191৳/month. View all 25 banks EMI plans >

Available Options

Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Supported CPU: 11th Gen Intel Core Processors (LGA1200)
    • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
    • Graphics Output: 1 x HDMI
    • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
View more info...
Specification
General
Type DDR4
Basic Information
Supported CPU 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory Specifications
Memory Size 64GB (32 GB single DIMM capacity)
Slots 2 DIMMs
Supported Memory Type 1th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i5/i3/Pentium®/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

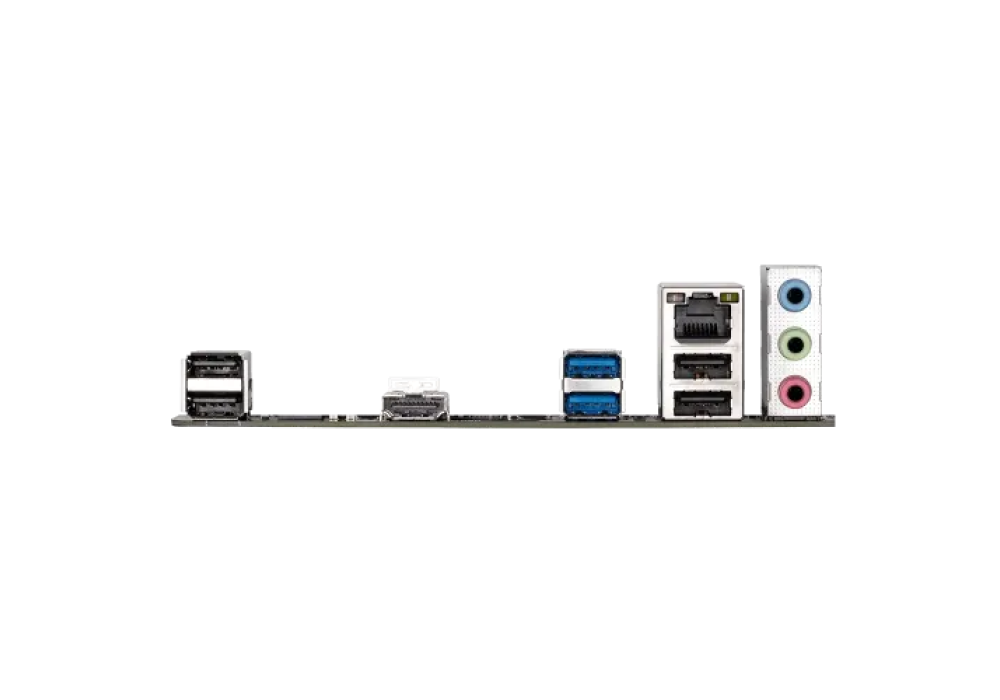

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years
Description

GIGABYTE H510M K Intel Micro ATX Motherboard

GIGABYTE H510M K Intel Micro ATX Motherboard is a reliable and efficient choice for building a compact and versatile desktop system. Designed to support 11th and 10th Gen Intel Core Processors with an LGA1200 socket, this motherboard offers compatibility with a wide range of CPUs. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of up to 64 GB. For graphics output, it features an HDMI port, providing a convenient connection for displays. Equipped with a Realtek GbE LAN chip, the GIGABYTE H510M K offers network speeds of up to 1 Gbps, ensuring fast and stable internet connectivity. The motherboard also delivers high-quality audio through its 8-channel HD Audio with high-quality capacitors, making it suitable for immersive sound experiences. It includes an NVMe PCIe Gen3 x4 2280 M.2 connector, allowing for high-speed storage solutions. The Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers, including a FAN STOP feature, ensures efficient cooling and quiet operation. The GIGABYTE APP Center provides an easy-to-use interface for managing various system utilities, enhancing the user experience. Additionally, the anti-sulfur resistor design helps protect against sulfur corrosion, ensuring durability and longevity. Overall, the GIGABYTE H510M K is a solid foundation for a variety of builds, catering to gaming, productivity, and general use.
