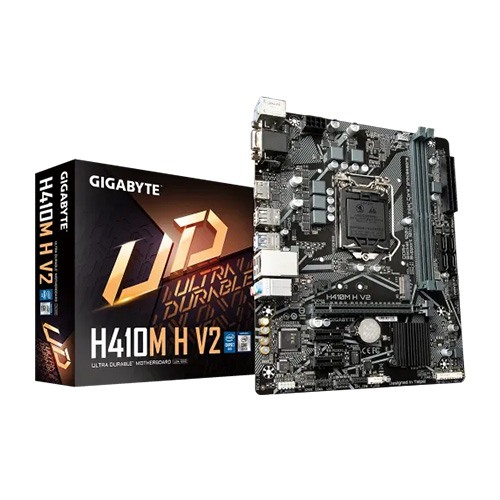

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard is a versatile and robust foundation for building a high-performance PC, supporting a wide range of Intel processors, including the 10th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron CPUs. This motherboard, featuring the Intel H470 Express Chipset, provides excellent performance and reliability for both casual users and enthusiasts. The Micro ATX form factor, measuring 22.6cm x 18.5cm, is compact yet powerful, making it ideal for small to medium-sized builds. The board supports up to 64GB of DDR4 memory across two DIMM slots, with memory speeds varying depending on the processor type. Intel Core i9 and i7 processors support DDR4 2933/2666/2400/2133 MHz, while Intel Core i5, i3, Pentium, and Celeron processors support DDR4 2666/2400/2133 MHz. The dual-channel memory architecture, along with support for ECC and non-ECC un-buffered DIMMs, ensures efficient and stable performance. Expansion capabilities are robust with one PCI Express x16 slot and two PCI Express x1 slots, all conforming to the PCI Express 3.0 standard. These slots support ASPM L1.2 power management protocols, ensuring efficient power usage. For storage, the motherboard includes one M.2 connector supporting both SATA and PCIe x4/x2 SSDs and four SATA 6Gb/s connectors, with RAID support for RAID 0, RAID 1, RAID 5, and RAID 10 configurations. The integrated Intel HD Graphics processor provides graphics support through one D-Sub port (1920x1200@60Hz) and one HDMI port (4096x2160@30Hz). Connectivity options are plentiful with four USB 3.2 Gen 1 ports, six USB 2.0/1.1 ports, and an Intel GbE LAN port for high-speed networking. The Realtek Audio CODEC delivers high-definition audio, supporting up to 7.1-channel sound, enhancing your multimedia experience. Additional features include support for APP Center applications such as @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, and Xpress Install, providing extensive customization and utility options. The GIGABYTE H410M H V2 is designed with reliability in mind, featuring a 256 Mbit flash BIOS with licensed AMI UEFI BIOS. It also includes multiple internal I/O ports, such as a CPU fan header, system fan header, RGB LED strip header, front panel and audio headers, USB headers, and a Clear CMOS jumper. Backed by a 3-year manufacturing warranty, the GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard is a dependable and feature-rich choice for building your next PC, offering a perfect blend of performance, expandability, and value.

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard Featueres

• Supported CPU and Chipset: The motherboard supports 10th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1200 package, offering compatibility with a diverse range of CPUs. It is powered by the Intel H470 Express Chipset, ensuring robust performance and feature support for various computing tasks.
• Memory Support and Expansion Slots: With support for DDR4 memory modules, including DDR4 2933/2666/2400/2133 MHz for Intel Core i9/i7 processors and DDR4 2666/2400/2133 MHz for Intel Core i5/i3/Pentium/Celeron processors, the motherboard provides flexibility in memory configurations. It features 2 DIMM slots supporting up to 64 GB of system memory, utilizing dual-channel memory architecture for enhanced performance. The expansion slots include 1 x PCI Express x16 slot running at x16 and 2 x PCI Express x1 slots, conforming to the PCI Express 3.0 standard.
• Graphics and Connectivity: The integrated Intel HD Graphics support offers versatile display options, including 1 x D-Sub port with a maximum resolution of 1920x1200@60 Hz and 1 x HDMI port with a maximum resolution of 4096x2160@30 Hz, supporting HDMI 1.4 version and HDCP 2.3. The motherboard also features multiple USB ports, including 4 x USB 3.2 Gen 1 ports and 6 x USB 2.0/1.1 ports, providing extensive connectivity options. The Intel GbE LAN chip offers reliable and high-speed network connectivity.
• Storage and RAID Support: The motherboard includes 1 x M.2 connector for SATA and PCIe x4/x2 SSD support, along with 4 x SATA 6Gb/s connectors, providing ample storage options. It is Intel Optane Memory Ready and supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations, offering data redundancy and performance optimization.
• Internal I/O Ports and Special Features: The motherboard features a range of internal I/O ports, including power connectors, fan headers, SATA connectors, and USB headers, ensuring seamless integration with various components. It also offers special features such as support for APP Center, @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, and Xpress Install, enhancing user experience and system management.
• Warranty Information: Backed by a 3-year manufacturing warranty, the motherboard provides users with long-term support and assurance of its quality and reliability.

In summary, the GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard offers a comprehensive set of features, including robust CPU support, versatile memory configurations, extensive connectivity options, storage flexibility, and special features, making it an excellent choice for building reliable and efficient computing systems.
