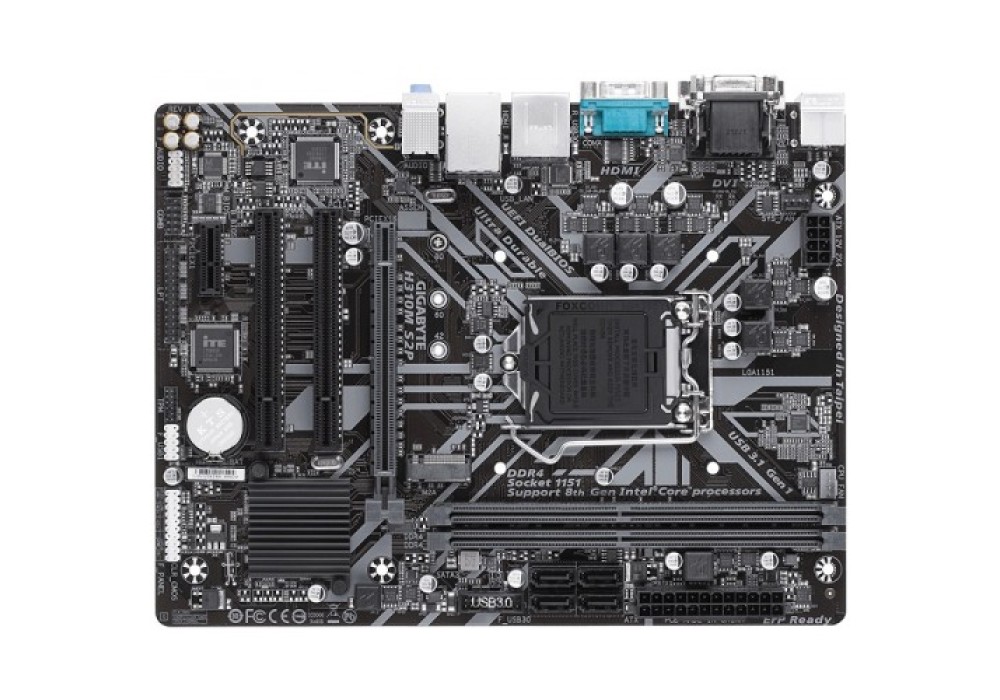

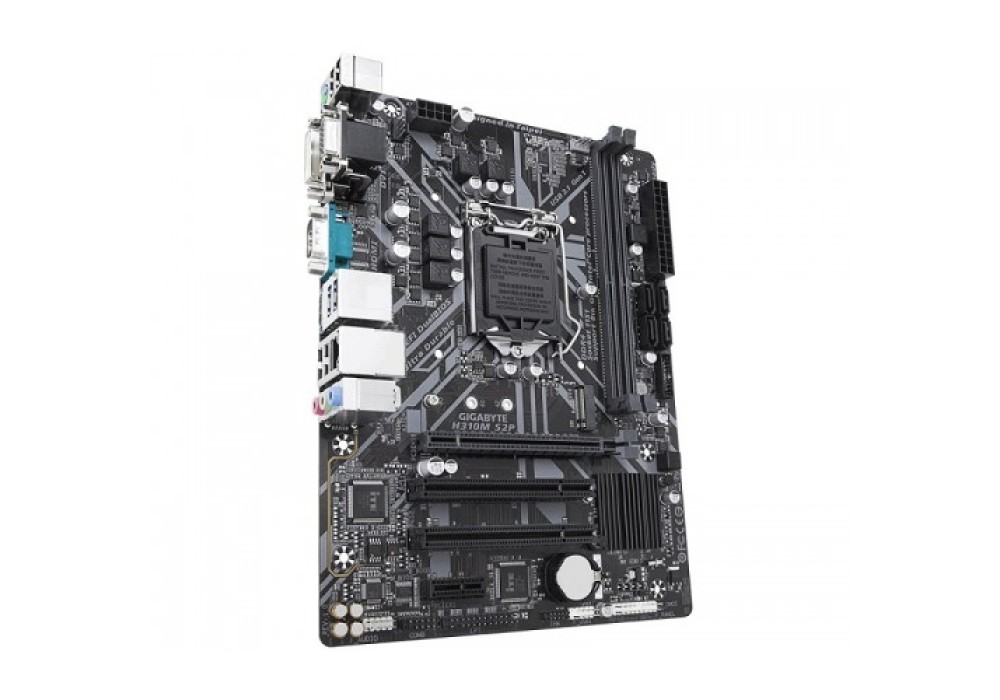

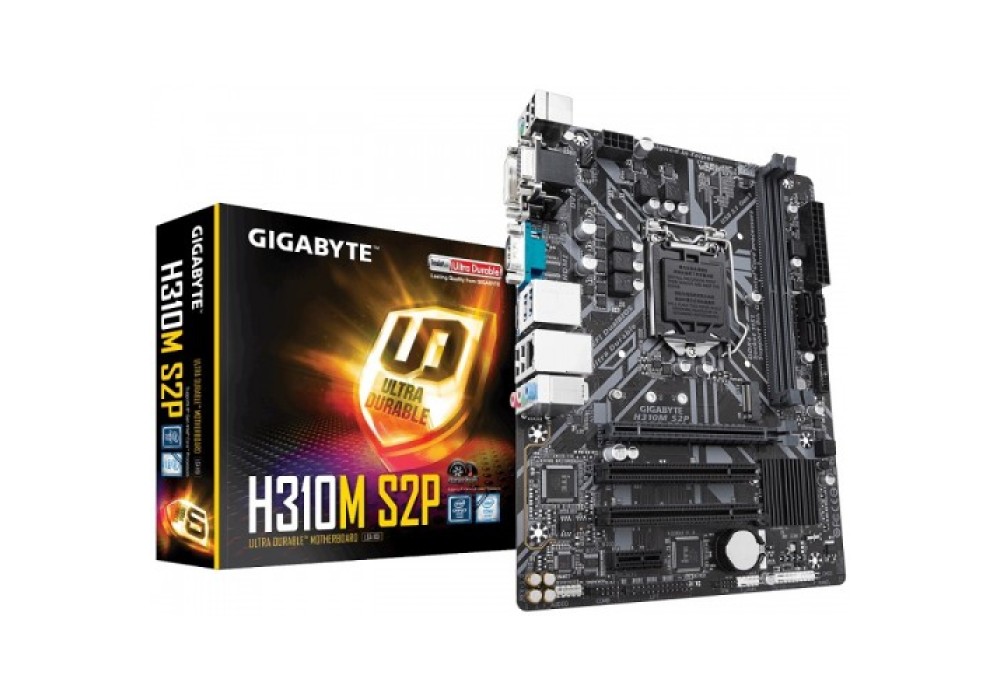

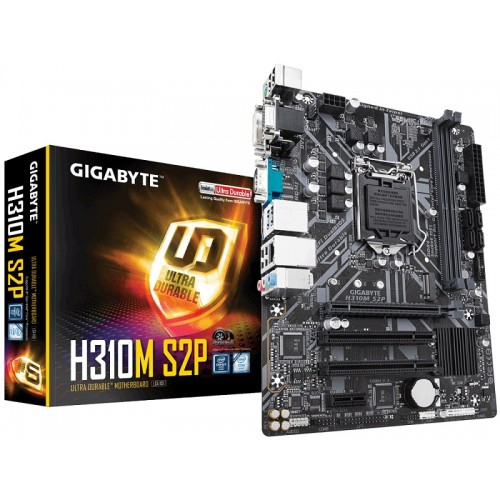

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Out Of Stock
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Model: H310M S2P
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Chipset Intel H310 Express
    • Intel Socket 1151 for 8th Gen Core Processors
    • 2 x DIMM Max 32GB DDR4
    • 2 x PCIe and 2 x PCI slots
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support
L3 cache varies with CPU
Chipset Intel® H310 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory Specifications
Memory Type DDR4
Slots 2 x DIMM sockets
Supported Memory Type Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Max. Memory 32 GB

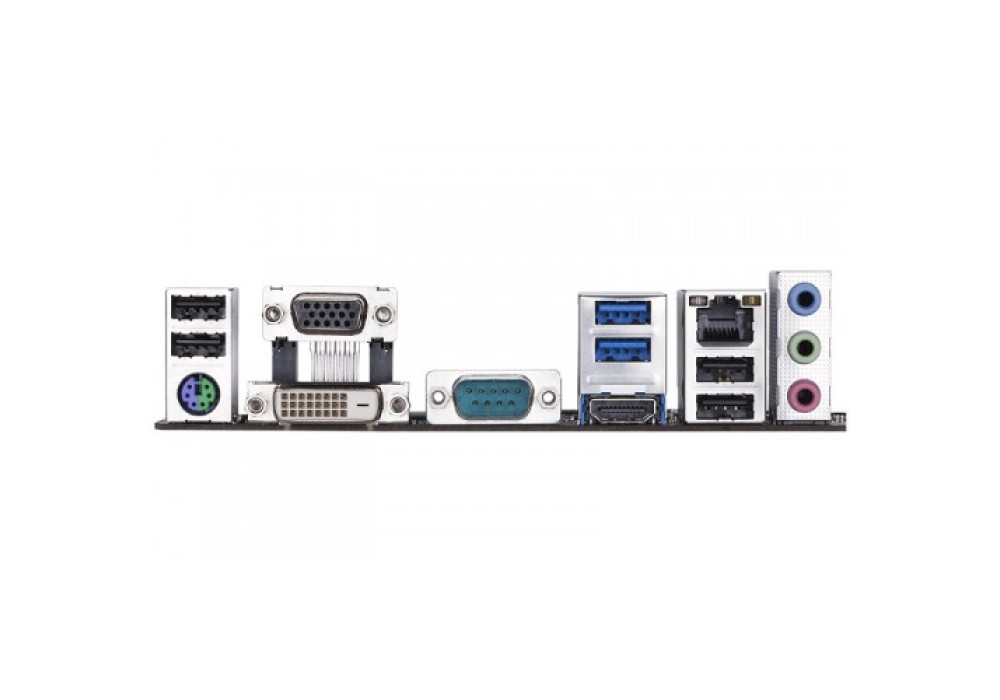

Connector & Ports
HDMI 1 x HDMI port
USB (s) 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable
the multi-channel audio feature through the audio driver.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory 1 GB
Warranty Information
Manufacturing Warranty 03 Years
Description

Features :

  • Supports 9th And 8th Gen IntelCore Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio With High Quality Audio Capacitors
  • Ultra-Fast M.2 With PCIe Gen2 X2 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
  • HDMI 1.4, DVI-D, D-Sub Ports For Multiple Display
  • CEC 2019 Ready, Save Power With A Simple Click
  • Smart Fan 5 Features Multiple Temperature Sensors And Hybrid Fan Headers With FAN STOP
  • All New GIGABYTE™ APP Center, Simple And Easy Use
  • Anti-Sulfur Resistors Design
  • GIGABYTE UEFI DualBIOS

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard Compatible With Intel (Socket LGA1151) I3, I5 & I7 Processor. This 8-Channel HD Audio With High Quality Audio Capacitor Board Has Dual Channel DDR4 Maximum 32GB Memory And It Has The Capability Of Ultra-Fast M.2 With PCIe Gen2 X2 & SATA And USB 3.1 Gen 1 Interface. If We Consider The Graphics Of This Anti-Sulfur Resistors Design Board Supports Intel HD Graphics Having The Maximum Resolution Of 4096x2160@30 Hz For HDMI And 1920x1200@60 Hz For D-Sub & DVI-D Port. This High Quality  Board Has 2 X PCIe & 2 X PCI Slots, GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management, GIGABYTE UEFI DualBIOS™  And CEC 2019 Ready.
