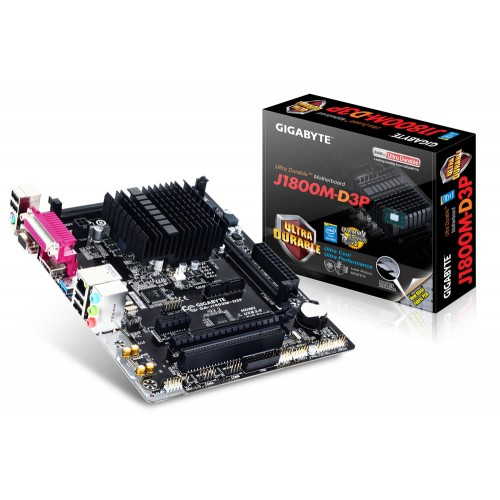

GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor

Motherboard
Audio ●︎ Realtek® ALC887 Codec ●︎ High Definition Audio ●︎ 2/4/5.1/7.1-Channel ●︎ Support For S/PDIF Out
BIOS 1 X 64 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
External I/O Ports 1 X PS/2 Keyboard/Mouse Port 1 X D-Sub Port 1 X HDMI Port 1 X Parallel Port 1 X USB 3.0/2.0 Port 4 X USB 2.0/1.1 Ports 1 X RJ-45 Port 3 X Audio Jacks (Line In, Line Out, Mic In)
Graphics ●︎ 1 X D-Sub Port, Supporting A Maximum Resolution Of 2560x1600 ●︎ 1 X HDMI Port, Supporting A Maximum Resolution Of 1920x1080
Internal I/O Ports 1 X 24-Pin ATX Main Power Connector 1 X 4-Pin ATX 12V Power Connector 2 X SATA 3Gb/S Connectors 1 X CPU Fan Header 1 X System Fan Header 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 2 X USB 2.0/1.1 Headers 2 X Serial Port HeadersŠŠ 1 X Trusted Platform Module (TPM) Header 1 X Clear CMOS Jumper
LAN Realtek® GbE LAN Chip (10/100/1000 Mbit)
Memory ●︎ 2 X DDR3 DIMM Sockets Supporting Up To 8 GB Of System Memory ●︎ Dual Channel Memory Architecture ●︎ Support For DDR3/-L 1333 MHz Memory Modules ●︎ Support For Non-ECC Memory Modules
Slots 1 X PCI Express X16 Slot, Running At X1(PCIEX1_2) 1 X PCI Express X1 Slot 1 X PCI Slot
Supported CPU Built In With An Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) 1 MB Cache
Supported Storage Integrated In The SoC: 2 X SATA 3Gb/S Connectors
USB Port Integrated In The SoC: 1 X USB 3.0/2.0 Port On The Back Panel SoC + GL850 USB 2.0 Hub: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
Warranty Information
Warranty Warranty

Features:

  • Built-In Intel® Celeron™ J1800 (2.41 GHz) Dual-Core Processor
  • GIGABYTE Ultra Durable™ Technology
  • Dual-Channel DDR3/-L UDIMM Slot Support
  • Audio Noise Guard With High-Quality Audio Capacitors
  • All Solid Capacitors With Humidity Protection New Glass Fabric PCB Design
  • LAN With High ESD Protection
  • HDMI, D-SUB Ports On The Rear Panel
  • GIGABYTE On/Off Charge™ For USB Devices
  • PCIe And PCI Interface For Wide-Range Expansion Card Selections

GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor

The GIGABYTE J1800M Micro ATX Motherboard Is A Fully Integrated PC Motherboard Featuring The Intel® Celeron™ J1800 Dual-Core Processor. Designed For Compact, Small Form Factor PC Systems And Devices, The GIGABYTE J1800M Is Entirely Fanless, Making It Ideal For Always-On, Mission Critical Systems, As Well As Noise-Sensitive Digital Entertainment Systems. Connectivity Includes Digital And Analog Display Outputs Via VGA And HDMI Ports, While A PCIe Plus A PCI Slots Provide Wide-Range Expansion Card Selections.

Intel® Celeron™ J1800 Processor

 The Intel® Celeron™ J1800 Dual-Core Processor Is The Latest System On Chip (SoC) From Intel, Combining CPU, Graphics And Memory Controller In One Package. Based On The 22nm Manufacturing Process, The Intel® Celeron™ J1800 Uses The Smallest Package Of Any Desktop Processor Within A Low Thermal Envelope Of On 10 Watts. The Intel® Celeron™ J1800 Boasts Excellent Performance Including DX11 Gaming On Intel® HD Graphics, Plus A Dedicated H.264 Encoder For Smooth HD Video Playback.

Bringing UDIMM Support To Bay Trail

The GIGABYTE Motherboard Is Specifically Designed With Two UDIMM Slots, Making It Compatible With Widely Available Desktop DDR3 Memory. Unlike SO-DIMM Memory, UDIMM Has The Advantage Of Bringing To Users A Wider And More Easily Accessible Range Of RAM.

High Quality Audio Capacitors

GIGABYTE Ultra Durable™ Motherboards Use High Quality Nippon Chemicon ARE Series Audio Capacitors. These Professional Audio Capacitors Deliver The Highest Quality Sound Resolution And Sound Expansion To Create The Most Realistic Sound Effects For User Experience.

Dedicated Audio Hardware Zone

●︎ Separation On The PCB Layer Protects The Board's Sensitive Analog Audio Components.

●︎ Separate Analog And Digital Ground To Protect Against Electromagnetic Interference (EMI).

GIGABYTE Ultra Durable

GIGABYTE Ultra Durable™ Debuts On GIGABYTE Motherboards, With A Range Of Features And Component Choices That Provide Record-Breaking Performance, Cool And Efficient Operation And Extended Motherboard Lifespan.

Ultra Performance

GIGABYTE Uses All Solid Caps (Capacitors) And Low RDS(On) MOSFETs Which Are Rated To Work At Higher Temperatures To Provide A Longer Lifespan.

Humidity Protection

Humidity Can Play Havoc On A Motherboard's Circuitry.GIGABYTE's New Glass Fabric PCB Design Helps Protect Against Electrical Shorts Due To Humidity By Reducing The Gaps In Spacing Between PCB Filaments.

Power Failure Protection

GIGABYTE Also Uses Anti-Surge ICs To Protect The Motherboard Against Power Surges.

Electrostatic Protection

GIGABYTE Motherboards Feature High Resistance ICs Which Help Protect The Motherboard Against Electrostatic Discharge.
