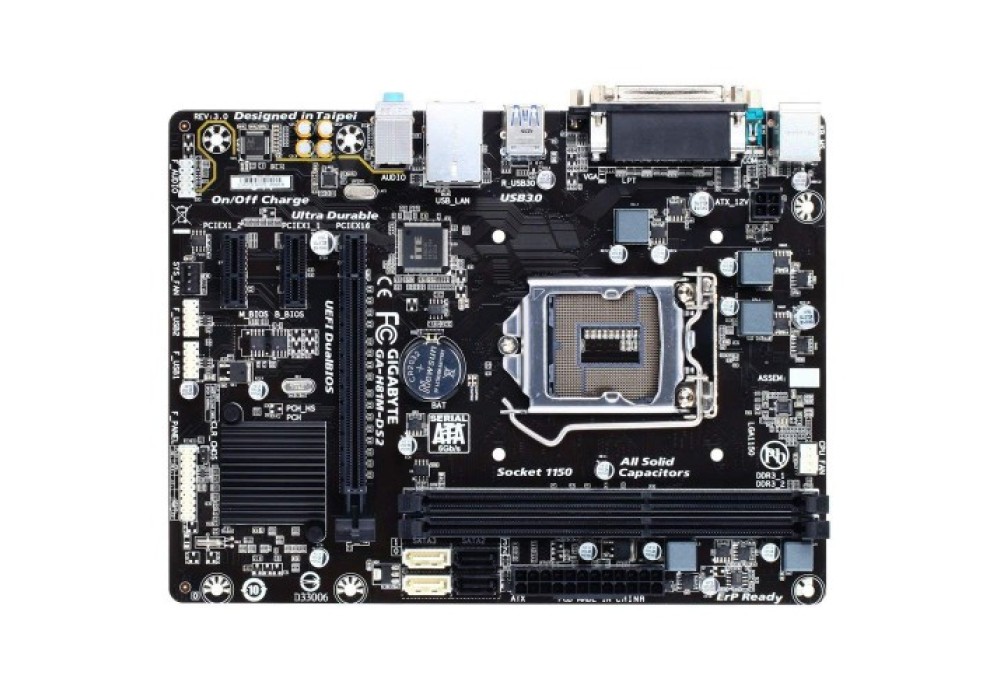

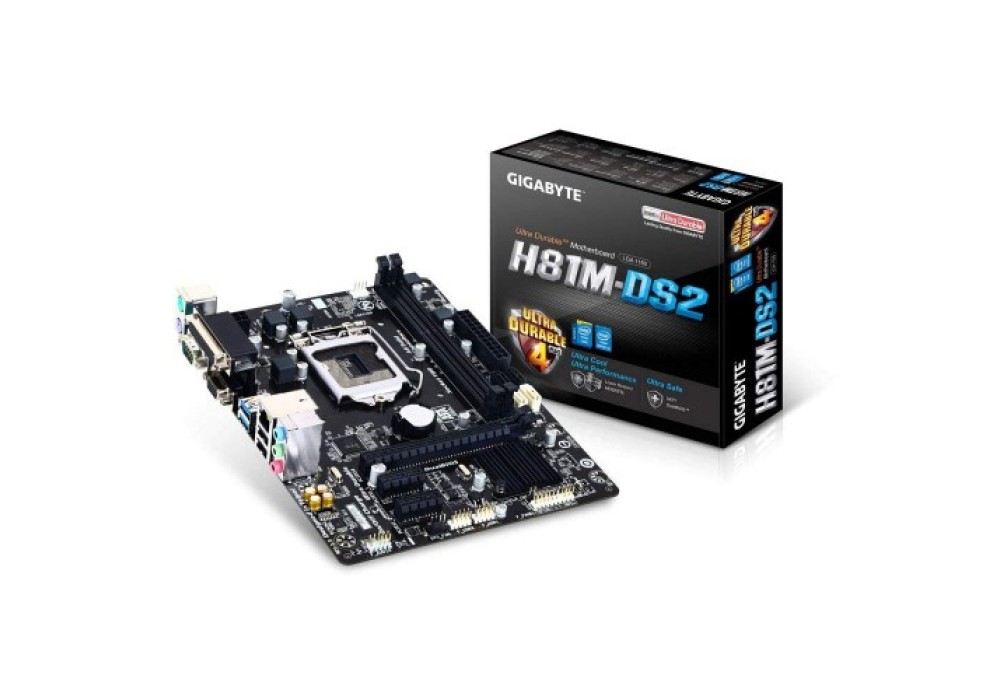

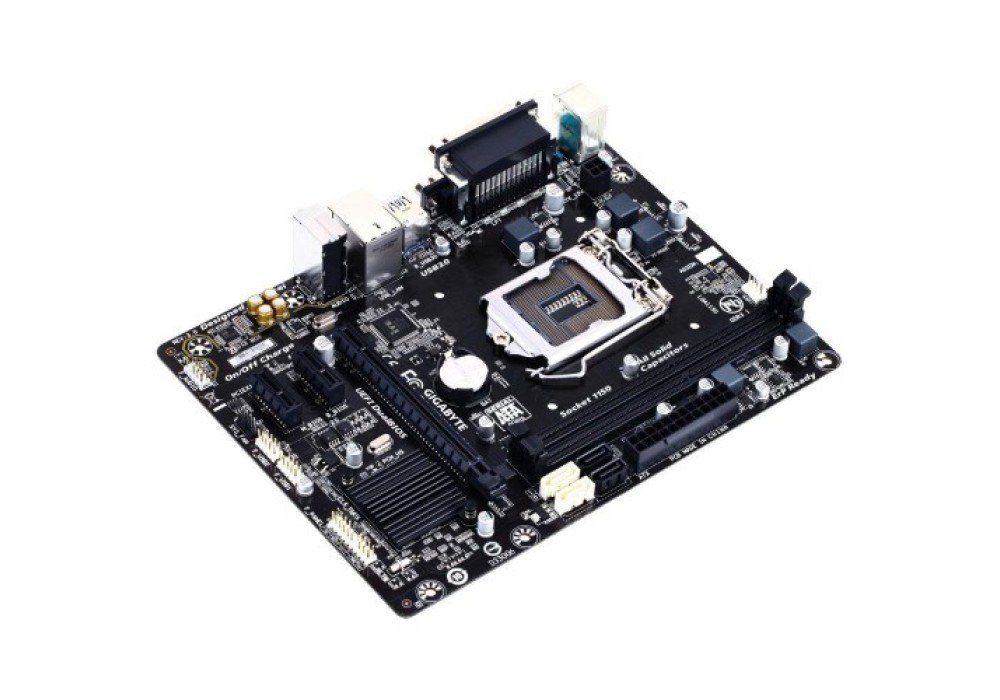

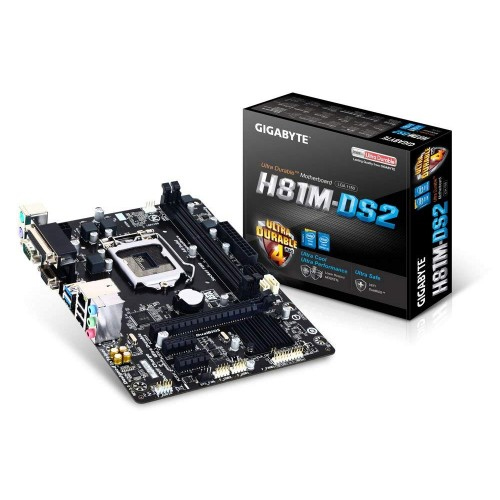

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Name: Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Brand: Gigabyte
Availability: InStock
Rating: 1 (1 reviews)

Out of Stock

Model: GA-H81M-DS2

Key Features

CPU: 4th Generation Intel Processors
Chipset: Intel H81 Express
2 x 1.5V DDR3
3 x PCI Express slot

View More Info...

(0 reviews)

0৳

Chat Through

Specification

Basic Information

Supported CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Chipset	Intel® H81 Express
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm

Expansion Slots

PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.)

Memory Specifications

Memory Type	Dual channel DDR3 memory architecture
Slots	2 x 1.5V DIMM
Supported Memory Type	Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	16 GB

Connector & Ports

USB (s)	Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub

Graphics

Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory	1 GB

Warranty Information

Manufacturing Warranty

03 Years

Description

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

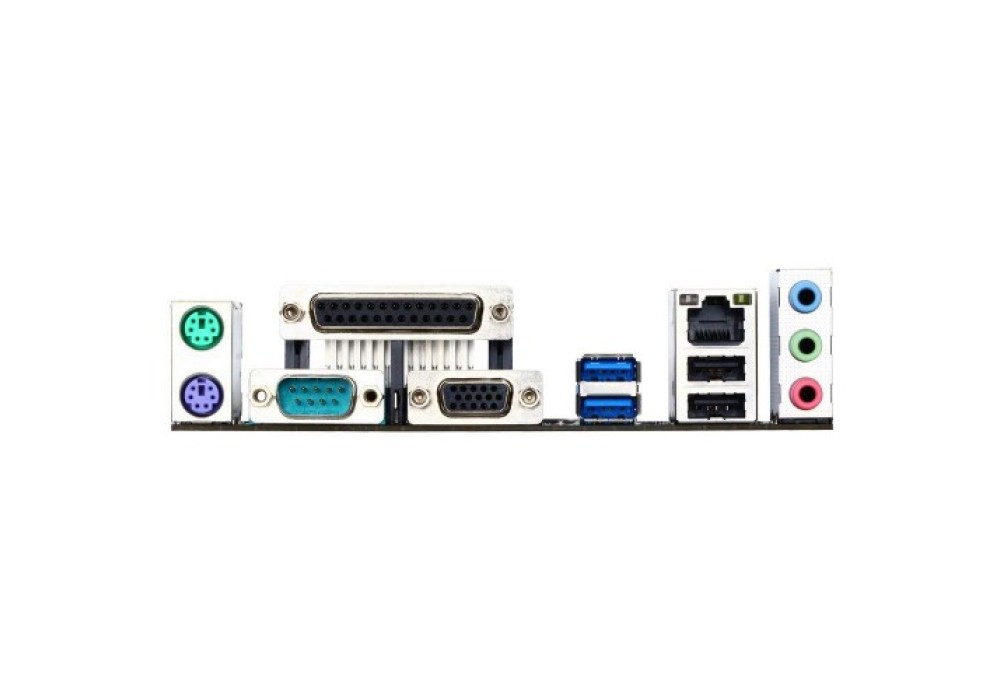

Gigabyte GA-H81M-DS2 Micro ATX ultra durable motherboard has the compatibility with 4th gen Intel processors. This board also supports dual channel DDR3 maximum 16GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200 Hz for D-Sub port. This basic motherboard has the facility of GIGABYTE On/Off Charge for USB devices, LAN with high ESD Protection and USB 3.0 ports with GIGABYTE 3x USB power. This All solid capacitors design board also contain GIGABYTE UEFI DualBIOS Technology and LPT, COM, D-SUB port on rear panel.
