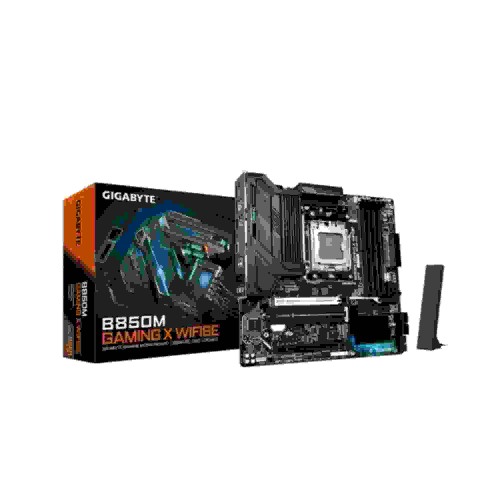

Model: B850M GAMING X WIFI6E
View More Info...
Chat Through
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Wireless | Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Memory Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory Type | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Max. Memory | Up to 256 GB (64 GB single DIMM capacity) of system memory |
| HDMI | 1x HDMI |
| USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Warranty | 3 Years |
The GIGABYTE B850M GAMING X WIFI6E is a high-performance Micro ATX motherboard engineered for the latest generation of AMD processors. Built on the powerful AMD B650 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Processors using the AM5 socket, ensuring future-ready compatibility and impressive processing capabilities. Despite its compact 24.4cm x 24.4cm Micro ATX form factor, this board offers an extensive feature set designed to meet the needs of gamers, creators, and PC enthusiasts. Equipped with 4 DDR5 DIMM slots, this motherboard supports memory speeds up to DDR5 8200 MHz (OC) and a total capacity of 256 GB, allowing for blazing-fast multitasking and system performance. It supports AMD EXPO™ and Intel XMP profiles for easy memory overclocking, giving users a performance edge in intensive tasks and games. For storage, the B850M GAMING X WIFI6E features two M.2 slots (one supporting PCIe 5.0 x4) and four SATA 6Gb/s connectors, enabling high-speed storage setups. RAID 0, 1, 5, and 10 support for NVMe SSDs ensures both speed and data redundancy. Graphics output includes 1 HDMI 2.1 and 2 DisplayPort 1.4 ports, supporting up to triple-display output at 4K resolution, ideal for workstations or immersive setups.
The motherboard boasts next-gen wireless connectivity with Realtek Wi-Fi 6E (supporting 2.4GHz, 5GHz, and 6GHz bands) and Bluetooth 5.3, alongside a high-speed 2.5GbE LAN port for fast and stable wired networking. A variety of USB options are available, including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 2.0/3.2 Gen 1 ports for both rear and front panel access. For audio, it features Realtek® high-definition audio with support for 7.1-channel output, customizable via bundled software. Additional features include ARGB/RGB headers, Q-Flash Plus, Smart Backup, and support for GIGABYTE Control Center (GCC) for system monitoring and control. With a robust power delivery system, PCIe 5.0 support, compact build, and rich connectivity, the GIGABYTE B850M GAMING X WIFI6E is a versatile and reliable choice for users building a modern, high-speed, and space-efficient AMD-powered PC. It comes backed by a 3-year manufacturing warranty for added peace of mind.
