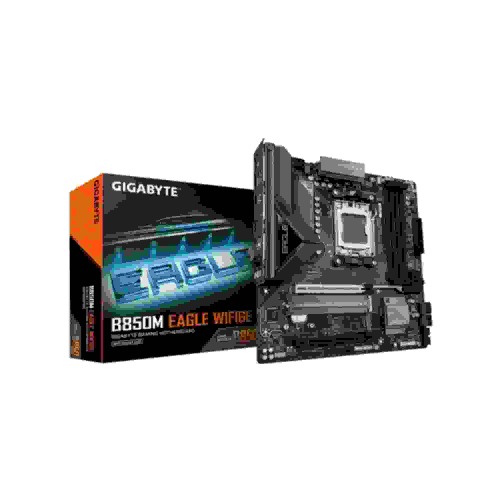

Model: B850M EAGLE WIFI6E
View More Info...
Chat Through
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Wireless | Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Memory Type | |
| Slots | 4 DIMMs |
| Supported Memory Type | DDR5 Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Max. Memory | Up to 256 GB (64 GB single DIMM capacity) of system memory |
| HDMI | 1x HDMI |
| USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Warranty | 3 Years |
The GIGABYTE B850M EAGLE WIFI6E is a high-performance Micro ATX motherboard built on the latest AMD B650 chipset, designed to support the next-generation AMD Ryzen 9000, 8000, and 7000 Series processors via the advanced AM5 socket. Perfect for compact PC builds, this board combines powerful performance with a compact form factor, delivering excellent value for gamers, creators, and professionals alike. This motherboard supports DDR5 memory with speeds up to 8200 MHz (OC) and offers 4 DIMM slots for a maximum capacity of 256 GB, providing lightning-fast and efficient multitasking. It is compatible with AMD EXPO™ and XMP memory profiles, enabling easy memory tuning and overclocking. In terms of expansion, the board includes one PCIe 5.0 x16 slot for graphics cards (on Ryzen 9000/7000 CPUs) and an additional PCIe 3.0 x4 slot, ensuring future-ready support for high-performance GPUs and expansion cards. Storage is equally impressive, with two M.2 slots supporting up to PCIe 5.0 NVMe SSDs, along with four SATA 6Gb/s ports, and RAID 0/1/5/10 support for enhanced data protection and performance.
For connectivity, the B850M EAGLE is equipped with Realtek 2.5GbE LAN and integrated Wi-Fi 6E (Realtek RTL8852CE), supporting tri-band (2.4/5/6 GHz) wireless connectivity and Bluetooth 5.3 for seamless, high-speed network access and device pairing. Graphics output includes 1x HDMI 2.1 and 2x DisplayPorts 1.4, supporting up to 4K @144Hz, making it ideal for creators and high-resolution display setups. The onboard audio is powered by a Realtek high-definition audio codec, supporting 2/4/5.1/7.1 channel output with crystal-clear sound. A rich selection of USB ports includes USB 3.2 Gen 2 Type-A and Type-C, USB 3.2 Gen 1, and USB 2.0, ensuring versatile device connectivity on both the rear I/O and internal headers. RGB enthusiasts will enjoy multiple Gen2 addressable RGB headers for synchronized lighting effects. With exclusive GIGABYTE features like Q-Flash Plus, Smart Backup, and support for GIGABYTE Control Center (GCC), the B850M EAGLE offers top-tier functionality and ease of use. Backed by a 3-year manufacturer warranty, this motherboard delivers reliability, performance, and connectivity in a compact and modern design — perfect for building a powerful AM5-based PC.
