- Stock: In Stock
- Model: B760M K DDR4
- Supported CPU: 12th/13th/14th Gen Intel Core Processors
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory Max.: Up to 128GB
- RAM Type: DDR4
| Basic Information | |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentiu® Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Generel information | |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| I/O Controller | iTE® I/O Controller Chip |
| External Features | |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Connector & Ports | |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |

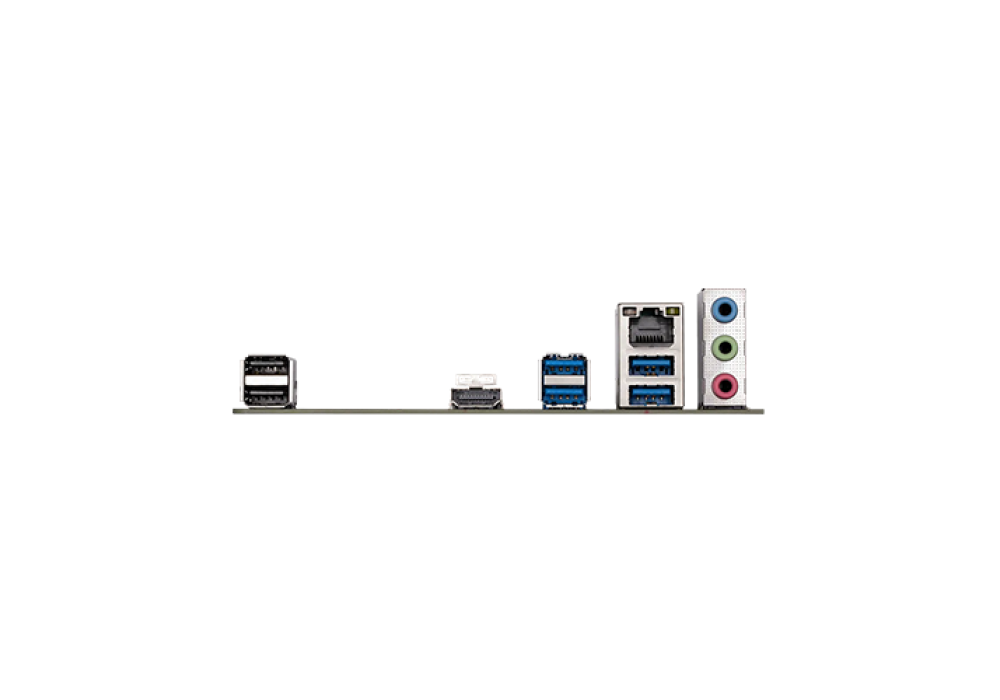

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors: ---- 2 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |

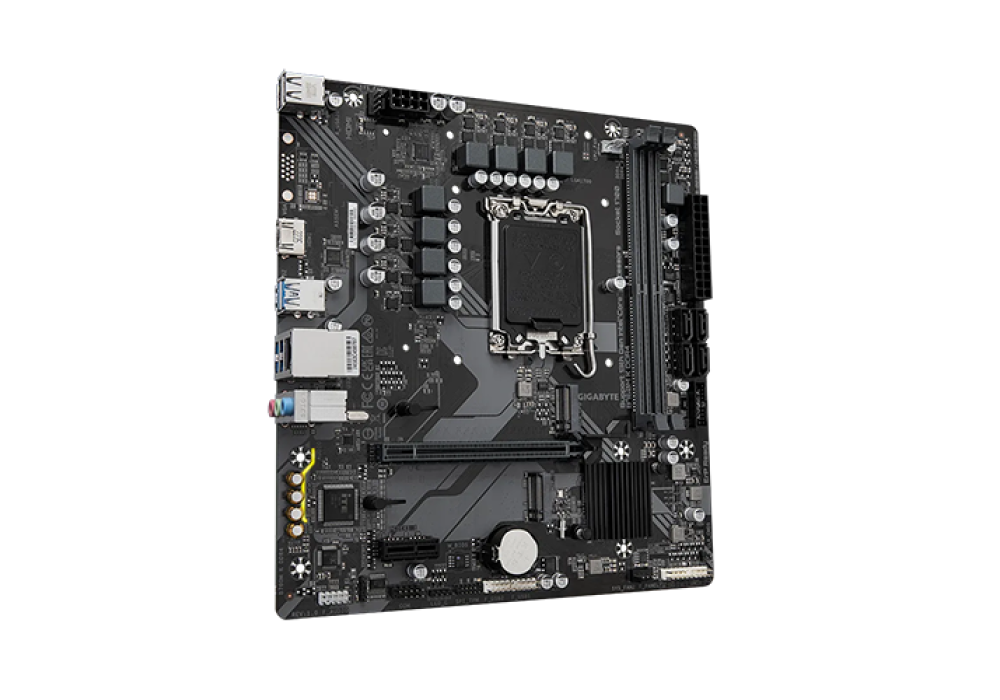

GIGABYTE B760M K DDR4 MOTHERBOARD
When it comes to building a reliable and high-performance PC, the motherboard is the heart of the system. The GIGABYTE B760M K DDR4 Motherboard stands out as an ideal choice for both gamers and productivity-focused users in Bangladesh who demand stability, speed, and modern features without breaking the bank. Designed with precision engineering, this motherboard supports the latest Intel processors, allowing users to unlock the full potential of their system. One of the key highlights of the GIGABYTE B760M K is its robust DDR4 memory support, enabling faster data transfer and smoother multitasking. Whether you are editing videos, streaming content, or running multiple applications simultaneously, this motherboard ensures seamless performance with minimal lag. Its micro-ATX form factor makes it compatible with a wide range of PC cases, offering flexibility for compact builds without compromising on functionality.
Durability is another major strength of this motherboard. Built with premium components and enhanced thermal design, the GIGABYTE B760M K DDR4 ensures stable operation even under heavy workloads or extended gaming sessions. Additionally, the motherboard features multiple expansion slots, high-speed connectivity options, and advanced audio capabilities, making it perfect for users who want to maximize their system’s potential. For those looking to build a gaming rig or a content creation powerhouse, the GIGABYTE B760M K DDR4 Motherboard offers excellent value with top-notch features, reliable performance, and future-ready technology. Investing in this motherboard ensures your system is ready for modern gaming titles, demanding applications, and multitasking needs.
Key Features of GIGABYTE B760M K DDR4 Motherboard
The GIGABYTE B760M K DDR4 Motherboard combines performance, durability, and versatility, making it an excellent choice for gamers, creators, and productivity enthusiasts alike. Here are its standout features:
- DDR4 Memory Support – Supports high-speed DDR4 RAM for smooth multitasking and faster data transfer. This allows gamers and professionals to run multiple applications without slowdown. Large files, heavy software, and gaming sessions become more responsive with efficient memory handling.
- Intel 12th & 13th Gen Processor Compatibility – Optimized for modern Intel CPUs for maximum performance. Users can enjoy cutting-edge processing power with support for the latest Intel technologies. It ensures stability and efficient power delivery even under demanding workloads.
- Enhanced Thermal Design – Keeps your system cool during heavy workloads and long gaming sessions. Advanced heatsinks and optimized airflow design prevent overheating, extending component lifespan. This ensures consistent performance without thermal throttling.
- Multiple Expansion Slots – PCIe slots for graphics cards and additional expansion options for future upgrades. Upgrade your PC easily with graphics cards, SSDs, or other peripherals. The versatile slot arrangement provides flexibility for custom builds and performance enhancement.
- High-Speed Connectivity – Includes USB 3.2 Gen 1 ports and M.2 slots for SSDs for faster data access. Enjoy lightning-fast file transfers, quick system boot times, and seamless peripheral connectivity. Perfect for gamers, content creators, and professional users needing speed.
- Reliable Audio & Networking – Integrated high-quality audio and LAN for immersive gaming and smooth online performance. Experience crisp sound for music, movies, and games, along with stable internet connectivity. Ideal for competitive gaming, streaming, and virtual meetings.
With its compact micro-ATX design and premium build quality, the GIGABYTE B760M K DDR4 Motherboard is perfect for building a modern, high-performance PC. It delivers reliability, speed, and all the essential features you need to handle gaming, content creation, and everyday computing tasks effortlessly.
Build Gaming PC with GIGABYTE B760M K DDR4 Motherboard Form Onix BD
Looking to build a high-performance PC? The GIGABYTE B760M K DDR4 Motherboard available at Onix BD is the perfect choice for gamers and creators. Designed to support Intel’s latest processors, this motherboard ensures smooth multitasking and faster data transfer with DDR4 Memory Support. Its enhanced thermal design keeps your system cool even during long gaming sessions or heavy workloads. Expand your setup effortlessly with multiple PCIe slots and high-speed connectivity options, including USB 3.2 Gen 1 and M.2 SSD slots. Experience immersive audio and reliable networking for uninterrupted gaming and streaming. For those exploring options, consider checking the Gigabyte B760M D3HP DDR5 Intel Motherboard for advanced DDR5 performance. This product fits perfectly within the Intel motherboard and GIGABYTE motherboard categories for a wide range of PC builds. Upgrade your system today with Onix BD and enjoy reliability, speed, and future-ready features all in one motherboard.
Quick Compare
Comparison of B760M K DDR4 vs PRO B760M-P vs B760M D2H DDR4 vs PRIME B760M-K D4 which are most simmiler.
| Product | GIGABYTE B760M K DDR4 MOTHERBOARD | MSI PRO B760M-P DDR5 mATX Motherboard | Gigabyte B760M D2H DDR4 Micro ATX Motherboard | Asus PRIME B760M-K D4 mATX Motherboard |
| Image | |
|
|
|
| Price | 14,900৳ | |
14,400৳ | |
| Model | B760M K DDR4 | PRO B760M-P | B760M D2H DDR4 | PRIME B760M-K D4 |
| Brand | Gigabyte | MSI | Gigabyte | Asus |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 1 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | GIGABYTE B760M K DDR4 MOTHERBOARD When it comes to building a reliable and high-performance PC, the motherboard is the heart of the system. The GIGABYTE B760M K DDR4 Motherboard stands out as an ideal choice for both gamers and productivity-focused users in Bangladesh who demand stability, speed, and modern features without breaking the bank. Designed with precision engineering, this motherboard supports the latest Intel processors, allowing users to unlock the full potential of their system. One of the key highlights of the GIGABYTE B760M K is its robust DDR4 memory support, enabling faster data transfer and smoother multitasking. Whether you are editing videos, streaming content, or running multiple applications simultaneously, this motherboard ensures seamless performance with minimal lag. Its micro-ATX form factor makes it compatible with a wide range of PC cases, offering flexibility for compact builds without compromising on functionality. Durability is another major strength of this motherboard. Built with premium components and enhanced thermal design, the GIGABYTE B760M K DDR4 ensures stable operation even under heavy workloads or extended gaming sessions. Additionally, the motherboard features multiple expansion slots, high-speed connectivity options, and advanced audio capabilities, making it perfect for users who want to maximize their system’s potential. For those looking to build a gaming rig or a content creation powerhouse, the GIGABYTE B760M K DDR4 Motherboard offers excellent value with top-notch features, reliable performance, and future-ready technology. Investing in this motherboard ensures your system is ready for modern gaming titles, demanding applications, and multitasking needs. Key Features of GIGABYTE B760M K DDR4 Motherboard The GIGABYTE B760M K DDR4 Motherboard combines performance, durability, and versatility, making it an excellent choice for gamers, creators, and productivity enthusiasts alike. Here are its standout features: DDR4 Memory Support – Supports high-speed DDR4 RAM for smooth multitasking and faster data transfer. This allows gamers and professionals to run multiple applications without slowdown. Large files, heavy software, and gaming sessions become more responsive with efficient memory handling. Intel 12th & 13th Gen Processor Compatibility – Optimized for modern Intel CPUs for maximum performance. Users can enjoy cutting-edge processing power with support for the latest Intel technologies. It ensures stability and efficient power delivery even under demanding workloads. Enhanced Thermal Design – Keeps your system cool during heavy workloads and long gaming sessions. Advanced heatsinks and optimized airflow design prevent overheating, extending component lifespan. This ensures consistent performance without thermal throttling. Multiple Expansion Slots – PCIe slots for graphics cards and additional expansion options for future upgrades. Upgrade your PC easily with graphics cards, SSDs, or other peripherals. The versatile slot arrangement provides flexibility for custom builds and performance enhancement. High-Speed Connectivity – Includes USB 3.2 Gen 1 ports and M.2 slots for SSDs for faster data access. Enjoy lightning-fast file transfers, quick system boot times, and seamless peripheral connectivity. Perfect for gamers, content creators, and professional users needing speed. Reliable Audio & Networking – Integrated high-quality audio and LAN for immersive gaming and smooth online performance. Experience crisp sound for music, movies, and games, along with stable internet connectivity. Ideal for competitive gaming, streaming, and virtual meetings. With its compact micro-ATX design and premium build quality, the GIGABYTE B760M K DDR4 Motherboard is perfect for building a modern, high-performance PC. It delivers reliability, speed, and all the essential features you need to handle gaming, content creation, and everyday computing tasks effortlessly. Build Gaming PC with GIGABYTE B760M K DDR4 Motherboard Form Onix BD Looking to build a high-performance PC? The GIGABYTE B760M K DDR4 Motherboard available at Onix BD is the perfect choice for gamers and creators. Designed to support Intel’s latest processors, this motherboard ensures smooth multitasking and faster data transfer with DDR4 Memory Support. Its enhanced thermal design keeps your system cool even during long gaming sessions or heavy workloads. Expand your setup effortlessly with multiple PCIe slots and high-speed connectivity options, including USB 3.2 Gen 1 and M.2 SSD slots. Experience immersive audio and reliable networking for uninterrupted gaming and streaming. For those exploring options, consider checking the Gigabyte B760M D3HP DDR5 Intel Motherboard for advanced DDR5 performance. This product fits perfectly within the Intel motherboard and GIGABYTE motherboard categories for a wide range of PC builds. Upgrade your system today with Onix BD and enjoy reliability, speed, and future-ready features all in one motherboard... | MSI PRO B760M-P DDR5 mATX Motherboard Building a reliable and future-ready PC starts with choosing the right motherboard—and the MSI PRO B760M-P DDR5 mATX Motherboard is designed to deliver exactly that. Whether you are planning a powerful office workstation, a content creation setup, or a smooth mid-range gaming rig, this motherboard provides the perfect balance between performance, stability, and long-term upgrade potential. Engineered with the latest Intel B760 chipset, this board supports 12th and 13th Gen Intel processors, ensuring exceptional multitasking capability and system responsiveness. The integration of next-generation DDR5 memory support allows users to experience faster data processing speeds, improved bandwidth, and better overall system efficiency compared to previous DDR4 platforms. This makes it an excellent choice for users who want modern performance without stepping into extreme high-end pricing. The compact micro-ATX (mATX) form factor ensures flexibility for various PC case builds, making it suitable for both compact and standard desktop setups. Despite its smaller size, the MSI PRO B760M-P DDR5 mATX Motherboard does not compromise on essential connectivity, offering multiple expansion slots, high-speed storage options, and advanced thermal solutions for stable operation under heavy workloads. With MSI’s trusted build quality and user-friendly BIOS interface, this motherboard is ideal for beginners and experienced builders alike. If you are looking for a dependable foundation for your next-generation PC build, this board stands out as a smart and performance-oriented choice. Benefits of MSI PRO B760M-P DDR5 mATX Motherboard Future-Ready DDR5 Performance: Supports next-generation DDR5 memory, delivering faster speed, higher bandwidth, and improved efficiency for modern applications and gaming. With higher memory frequency support, users can experience smoother gameplay, faster rendering, and improved system responsiveness. DDR5 also enhances power efficiency, reducing overall system load while maintaining top-tier performance. This ensures your PC remains ready for upcoming software and hardware advancements. Strong & Stable Power Delivery: Enhanced VRM design ensures consistent and stable performance, even during heavy multitasking and demanding workloads. The optimized power architecture helps maintain CPU stability under pressure, preventing performance drops. Whether you are running productivity software or gaming for extended hours, the motherboard maintains reliable voltage control. This results in better durability and long-term system reliability. Smooth Multi-Tasking Capability: Optimized for 12th and 13th Gen Intel processors, providing responsive performance for productivity, editing, and business tasks. It allows seamless switching between applications without lag, making it ideal for office users and content creators. Heavy browser usage, software development tools, and editing programs run efficiently. The board ensures consistent performance across daily and professional workloads. Compact Yet Powerful Design: The mATX form factor allows you to build a space-saving PC without sacrificing essential features and expansion options. Despite its compact size, it offers sufficient PCIe slots and connectivity for GPUs and additional components. It fits easily into smaller cases, making it perfect for minimalist or office setups. You get flexibility in build design without compromising performance capabilities. High-Speed Storage Support: M.2 and SATA connectivity enable faster boot times, quick file transfers, and better overall system responsiveness. NVMe SSD support significantly reduces loading times for applications and games. Large file transfers become smoother and more efficient for professional users. This ensures your system feels fast, responsive, and modern in everyday usage. Reliable Build Quality from MSI: Built with durable components and advanced thermal solutions to ensure long-term stability and dependable performance. High-quality PCB materials and protective features enhance hardware lifespan. Improved heat management keeps the system cool under stress. Backed by MSI’s trusted engineering standards, this motherboard delivers dependable performance for years to come. The MSI PRO B760M-P DDR5 mATX Motherboard is an excellent choice for users who want performance, stability, and future upgrade flexibility in one package. Whether for office work, content creation, or gaming, it provides a solid foundation for your next PC build. Invest in a motherboard that ensures both efficiency and long-term reliability. Upgrade Smarter with MSI B760M Series – Available at Onix BD If you’re planning to build a reliable and future-ready PC, the MSI PRO B760M-P DDR5 mATX Motherboard is a strong foundation. For users who need built-in wireless connectivity, you can also explore the relevant product MSI B760M BOMBER WIFI mATX Motherboard, which offers added flexibility for modern networking needs. Both models are ideal choices under the intel Motherboard category, ensuring compatibility with the latest Intel processors and advanced performance features. As part of the trusted MSI lineup, these motherboards deliver stability, durability, and next-generation DDR5 memory support for enhanced speed and efficiency. Whether you're building a gaming PC, office workstation, or productivity setup, MSI B760M series boards provide the performance balance you need. You can find these genuine MSI motherboards at Onix BD, a reliable destination for authentic tech products in Bangladesh. Choose the right motherboard today and build your system with confidence, performance, and long-term upgrade potential in mind... | Gigabyte B760M D2H DDR4 Micro ATX Motherboard Overview The Gigabyte B760M D2H DDR4 Micro ATX Motherboard is a compact and budget-friendly motherboard designed for use with Intel processors. It supports the 10th generation Intel Core processors and is equipped with the LGA 1200 socket. The motherboard also supports dual-channel DDR4 memory with a maximum capacity of 64GB, providing ample memory for most users. This motherboard features a micro-ATX form factor and offers various connectivity options, including two USB 3.2 Gen 1 ports, two USB 2.0 ports, and an HDMI port for video output. It also includes Gigabit Ethernet for wired networking and supports 802.11ac Wi-Fi. The B760M D2H DDR4 features a B760 chipset and provides support for various features including SATA, NVMe, and USB 3.2 Gen 1. It also has M.2 slots for high-speed solid-state drives, providing fast storage and improved system performance. This motherboard also supports Gigabyte's APP Center software, which provides an easy-to-use interface for managing various system settings, such as overclocking, system monitoring, and more. The integrated audio system on the B760M D2H DDR4 includes Realtek ALC887 audio codec, which provides clear and crisp audio quality. The audio system is also equipped with smart speakers, which automatically adjust the volume levels of the speakers for a consistent audio experience. Performance The Gigabyte B760M D2H DDR4 Micro ATX Motherboard is engineered to deliver exceptional performance, making it an ideal choice for gaming rigs and high-performance computing setups. With support for the latest Intel processors, it ensures smooth multitasking, immersive gaming experiences, and seamless execution of demanding applications. Form Factor Featuring a Micro ATX form factor, this motherboard strikes a perfect balance between compactness and expandability. With dimensions of 24.4cm x 24.4cm, it fits snugly into a variety of PC cases, offering flexibility in build configurations without compromising on features or performance. Memory Support Memory is paramount in achieving optimal system performance, and the Gigabyte B760M D2H doesn't disappoint in this aspect. Supporting DDR4 memory modules with speeds ranging from 2133 MT/s to an impressive 5333 MT/s (overclocked), it provides ample room for memory-intensive tasks and ensures smooth operation even under heavy workloads. Socket Compatibility This motherboard is designed to accommodate LGA1700 socket processors, offering compatibility with a wide range of Intel CPUs, including the 14th, 13th, and 12th generation Intel Core processors, Pentium Gold, and Celeron processors. Whether you're aiming for high clock speeds or multi-threaded performance, the B760M D2H has you covered. Connectivity Connectivity options abound with the Gigabyte B760M D2H motherboard. Equipped with multiple USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1 ports, users can easily connect their peripherals and external devices. The inclusion of HDMI and DisplayPort ensures seamless connectivity with high-resolution displays, making it an ideal choice for multimedia enthusiasts and content creators. Gaming Powerhouse For avid gamers, the B760M D2H motherboard offers unparalleled gaming performance. With PCIe 4.0 support and multiple expansion slots, including PCIe x16 and PCIe x4 slots, it accommodates high-end graphics cards and other expansion cards, unleashing the full potential of your gaming rig. Supported Processor The motherboard supports a wide range of Intel processors, including Core i9, i7, i5, i3, Pentium Gold, and Celeron CPUs, catering to various budget and performance requirements. Whether you're a casual gamer or a hardcore enthusiast, there's a compatible processor option for you. FAQs Q: What makes the Gigabyte B760M D2H motherboard stand out?A: The B760M D2H stands out for its exceptional performance, extensive connectivity options, and compatibility with a wide range of Intel processors, making it a versatile choice for various computing needs.Q: Can I overclock my memory modules with this motherboard?A: Yes, the motherboard supports overclocked memory modules, allowing users to push their system's performance to new heights.Q: Does the B760M D2H motherboard support RGB lighting?A: Yes, the motherboard features RGB LED strip headers, allowing users to customize their build with vibrant lighting effects.Q: How many PCIe slots does the motherboard have?A: The B760M D2H motherboard features two PCIe slots: one PCIe 4.0 x16 slot and one PCIe 3.0 x16 slot, offering ample room for expansion cards.Q: Is the motherboard compatible with M.2 SSDs?A: Yes, the motherboard supports M.2 SSDs with PCIe 4.0 connectivity, providing fast and efficient storage solutions for your system... | Asus PRIME B760M-K D4 mATX MotherboardThe Asus PRIME B760M-K D4 mATX Motherboard is a versatile and high-performance motherboard designed to support Intel's latest processors, making it an ideal choice for users seeking a reliable and cost-effective solution for building a powerful system. It is compatible with Intel Core 12th, 13th, and 14th Gen processors, using the LGA1700 socket, and supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0, ensuring enhanced performance for demanding applications. Equipped with the Intel B760 chipset, the motherboard provides a solid foundation for both gaming and productivity. It features 2 x DIMM slots supporting DDR4 memory with speeds of up to 5333 MHz (OC), and a maximum capacity of 64GB, enabling smooth multitasking and overclocking. Intel XMP support also allows for easy memory overclocking for users seeking optimized performance. For expansion, the board includes 1 x PCIe 4.0 x16 slot for high-performance graphics cards and 2 x PCIe 4.0 x1 slots for additional peripherals. Storage is well-supported with 2 x M.2 slots (with PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports, ensuring fast read and write speeds for modern storage devices. The Realtek 2.5Gb Ethernet port offers enhanced network connectivity for faster, stable online performance, while the HDMI and VGA ports provide video output options for users who need integrated graphics support. RAID support (Intel Rapid Storage Technology) provides options for disk redundancy and performance optimization. The motherboard also boasts ASUS 5X Protection III for durability, Aura Sync for customizable RGB lighting, and Q-Design for simplified installation. With a 3-year warranty, the Asus PRIME B760M-K D4 is a robust, feature-rich motherboard that offers excellent value for building a modern computing setup.Asus PRIME B760M-K D4 mATX Motherboard FeaturesProcessor Support: Compatible with Intel 12th, 13th, and 14th Gen Core processors and other Intel chips like Pentium Gold and Celeron, utilizing the LGA1700 socket for versatile CPU support.Chipset & Memory: Powered by the Intel B760 chipset, it supports DDR4 memory with speeds up to 5333 MHz (OC) and a maximum capacity of 64GB, leveraging Dual Channel Memory Architecture for optimal memory performance. It also supports Intel Extreme Memory Profile (XMP) for easy overclocking.Expansion Slots: The motherboard comes with 1 x PCIe 4.0 x16 slot for high-performance graphics cards, along with 2 x PCIe 4.0 x1 slots for additional peripherals, offering flexible upgrade options.Storage: It features 2 x M.2 slots supporting PCIe 4.0 x4 mode for high-speed SSDs, as well as 4 x SATA 6Gb/s ports for additional storage options.Network Connectivity: Equipped with a Realtek 2.5Gb Ethernet port for faster and more stable internet speeds, ensuring smooth online gaming, streaming, or large file transfers.Audio: Features Realtek 7.1 Surround Sound High Definition Audio CODEC for high-quality audio with premium capacitors and dedicated PCB layers, supporting up to 24-Bit/192 kHz playback.Graphics Output: The board includes 1 x HDMI port and 1 x VGA port, providing versatile video output options for users without discrete GPUs.ASUS Protection and Design: Enhanced durability with ASUS 5X Protection III, including DIGI+ VRM, LANGuard, SafeSlot Core, and overvoltage protection, ensuring system stability and longevity.Customization & DIY Support: Includes Aura Sync RGB support, ProCool connectors, and Q-Design features like Q-DIMM, Q-Slot, and Q-LED Core for easy installation and system monitoring.Software & BIOS: Bundled with ASUS Armoury Crate, AI Suite 3, and UEFI BIOS, offering convenient control over system performance, cooling, and lighting customization... |
Questions
Have question about this product? Get specific details about this product from expert.No questions have been asked about this product.
