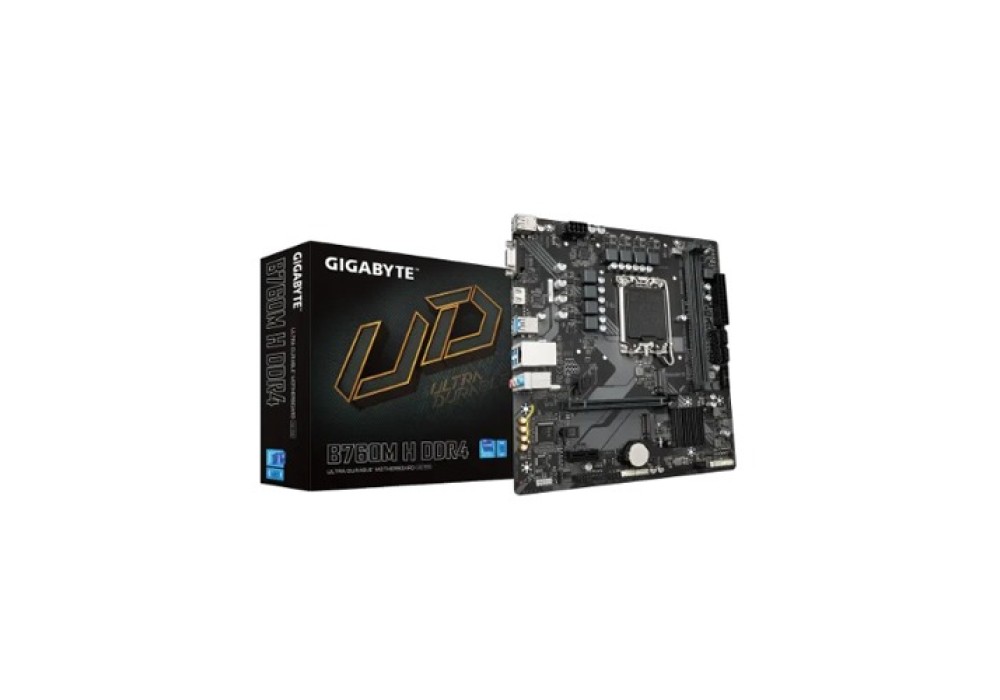

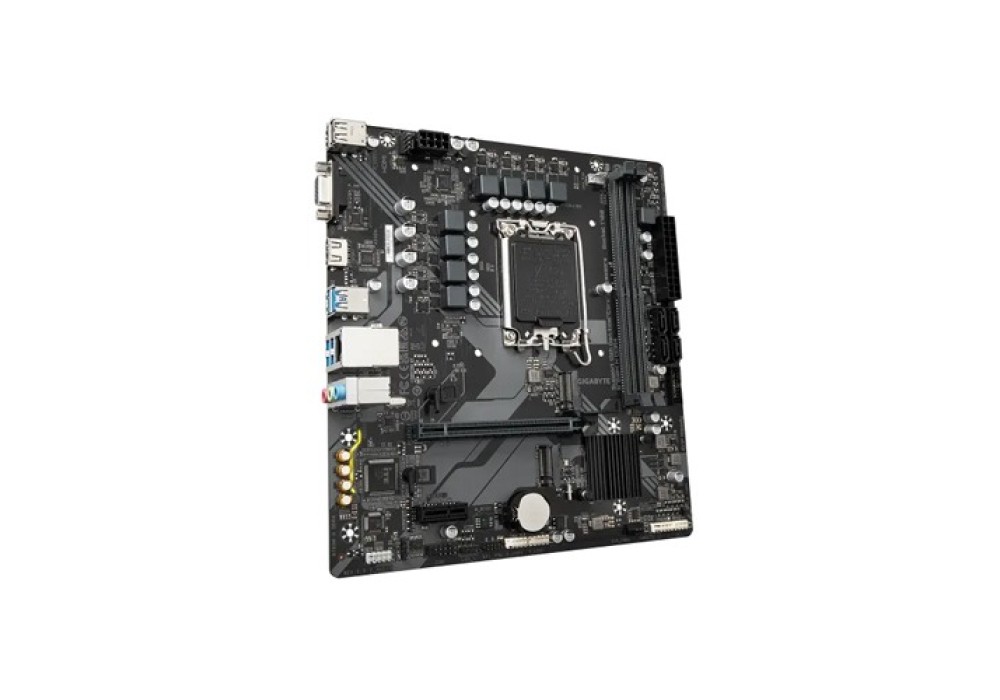

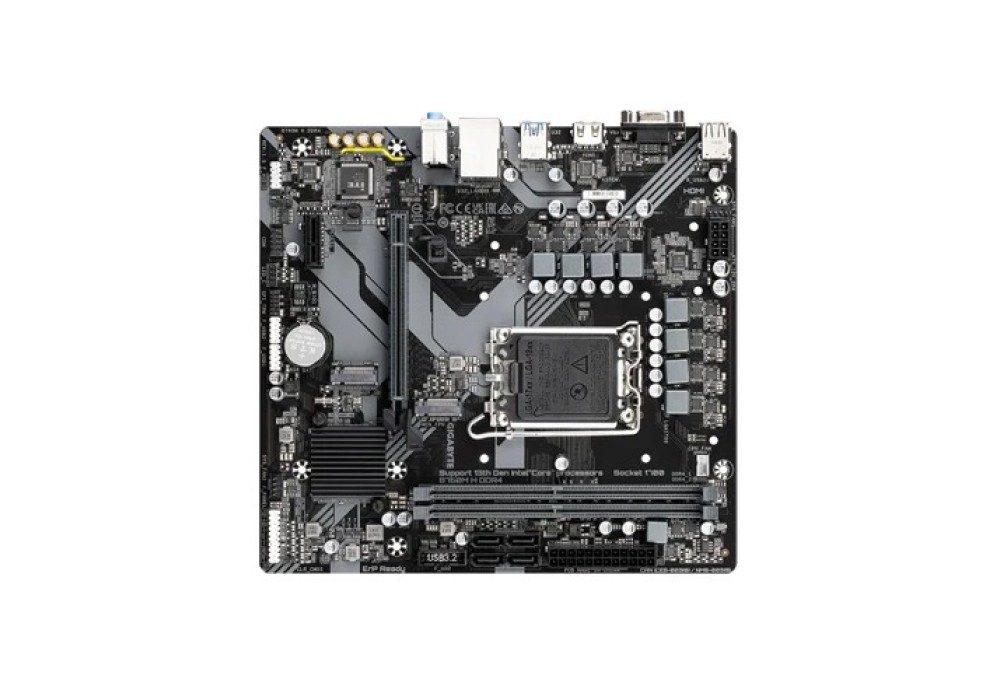

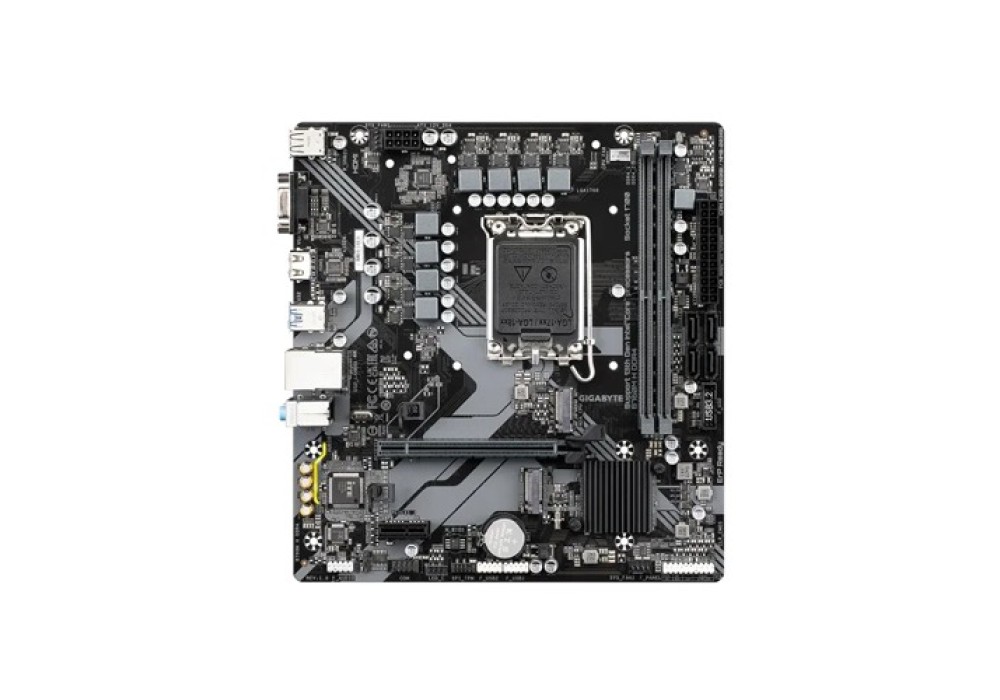

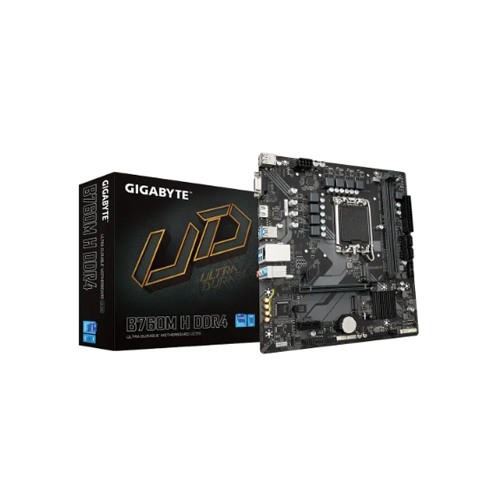

The GIGABYTE B760M H DDR4 mATX Motherboard offers a reliable foundation for building a budget-friendly yet powerful system, supporting a wide range of 12th, 13th, and 14th Generation Intel Core processors, along with Pentium Gold and Celeron processors. Powered by the Intel B760 Express Chipset and featuring a Micro ATX form factor, this motherboard strikes a balance between performance and affordability. With its AMI UEFI BIOS and support for PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, the B760M H provides users with a straightforward and user-friendly interface for system configuration and customization. The motherboard supports DDR4 memory modules with speeds up to 3200MHz, offering dual-channel memory architecture and a maximum memory capacity of 64GB.In terms of expansion slots, the B760M H features one PCI Express x16 slot for high-speed graphics cards and one PCI Express x1 slot for additional expansion cards. Graphics output options include a D-Sub port and an HDMI port, supporting resolutions up to 1920x1200@60Hz and 4096x2160@60Hz, respectively. Connectivity options abound with six USB 3.2 Gen 1 ports, two USB 2.0/1.1 ports, and Realtek GbE LAN chip providing reliable network connectivity. Storage options include one M.2 connector for PCIe 4.0 x4/x2 SSDs and four SATA 6Gb/s connectors supporting RAID 0, RAID 1, RAID 5, and RAID 10 configurations.
Performance
The GIGABYTE B760M H DDR4 motherboard is designed to deliver commendable performance, catering to both casual users and enthusiasts alike. Equipped with the Intel B760 Express Chipset and supporting the latest 14th, 13th, and 12th Generation Intel Core processors, including Pentium Gold and Celeron processors, this motherboard ensures seamless operation even under demanding workloads.
Form Factor
With its Micro ATX form factor measuring 23.0cm x 21.5cm, the GIGABYTE B760M H DDR4 motherboard strikes a balance between size and functionality. This compact design enables it to fit snugly into various PC cases while offering ample room for essential components.
DDR4 Memory Support
One of the standout features of the GIGABYTE B760M H DDR4 motherboard is its robust support for DDR4 memory modules. Users can take advantage of DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules, ensuring swift data processing and multitasking capabilities.
Connectivity
In terms of connectivity options, this motherboard leaves little to be desired. It boasts an array of ports and slots, including HDMI and USB ports, providing users with versatile options for connecting peripherals and external devices. Moreover, the inclusion of Realtek GbE LAN chip ensures reliable networking performance.
Supported Processor
The GIGABYTE B760M H DDR4 motherboard supports LGA1700 socket processors, offering compatibility with a wide range of Intel CPUs. Whether it's for gaming, content creation, or everyday computing tasks, this motherboard accommodates various processor requirements.
Expansion Slots
For users seeking expandability, the motherboard features PCI Express slots that support PCIe 4.0 and PCIe 3.0 standards, ensuring compatibility with modern graphics cards and expansion cards. Additionally, the dual-channel memory architecture enhances overall system performance.
FAQs
Q: What is the maximum memory capacity supported by the GIGABYTE B760M H DDR4 motherboard?
A: The B760M H DDR4 motherboard supports up to 64GB of system memory, with a maximum capacity of 32GB per single DIMM.
Q: Can I overclock my memory modules with this motherboard?
A: Yes, the B760M H DDR4 motherboard supports Extreme Memory Profile (XMP) memory modules, allowing users to overclock their memory for enhanced performance.
Q: What type of storage connectors does this motherboard feature?
A: The motherboard features M.2 connectors for PCIe 4.0 x4/x2 SSD support, along with SATA 6Gb/s connectors for traditional storage devices.
Q: Is the B760M H DDR4 motherboard compatible with Intel HD Graphics?
A: Yes, the motherboard supports Integrated Graphics Processor-Intel HD Graphics, offering versatile display connectivity options.
Q: Does the motherboard support high-definition audio?
A: Absolutely, the B760M H DDR4 motherboard boasts Realtek Audio CODEC, delivering immersive 2/4/5.1/7.1-channel audio experiences.
