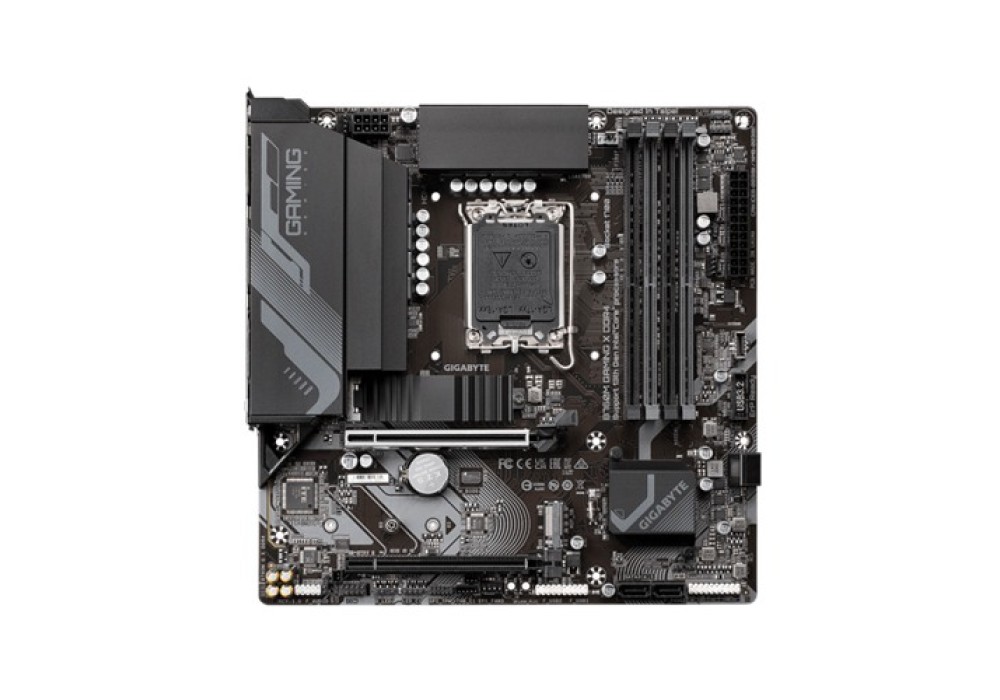

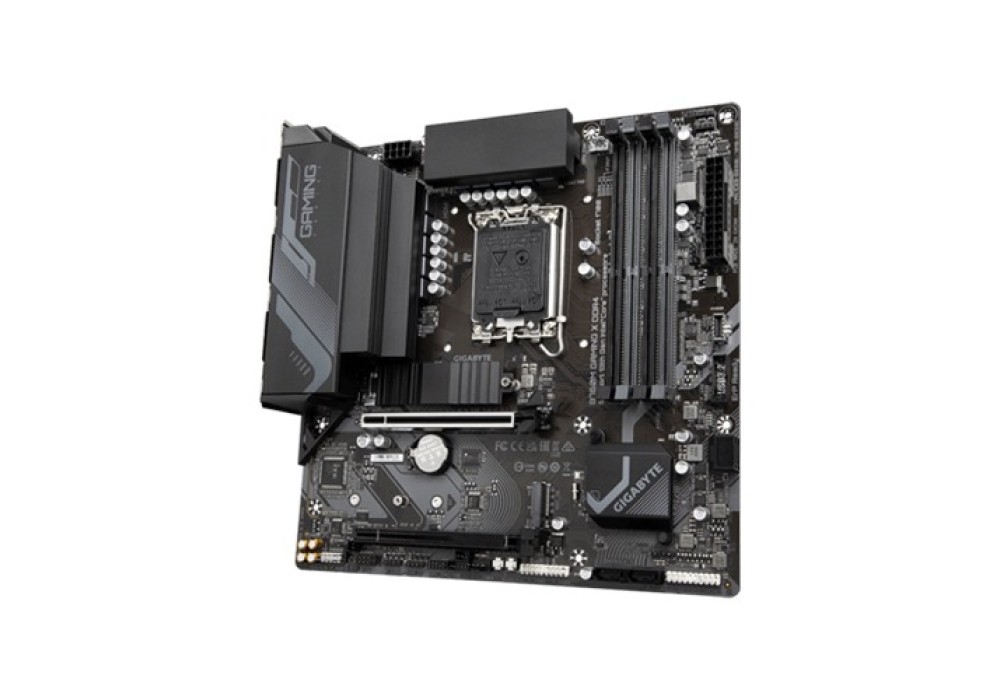

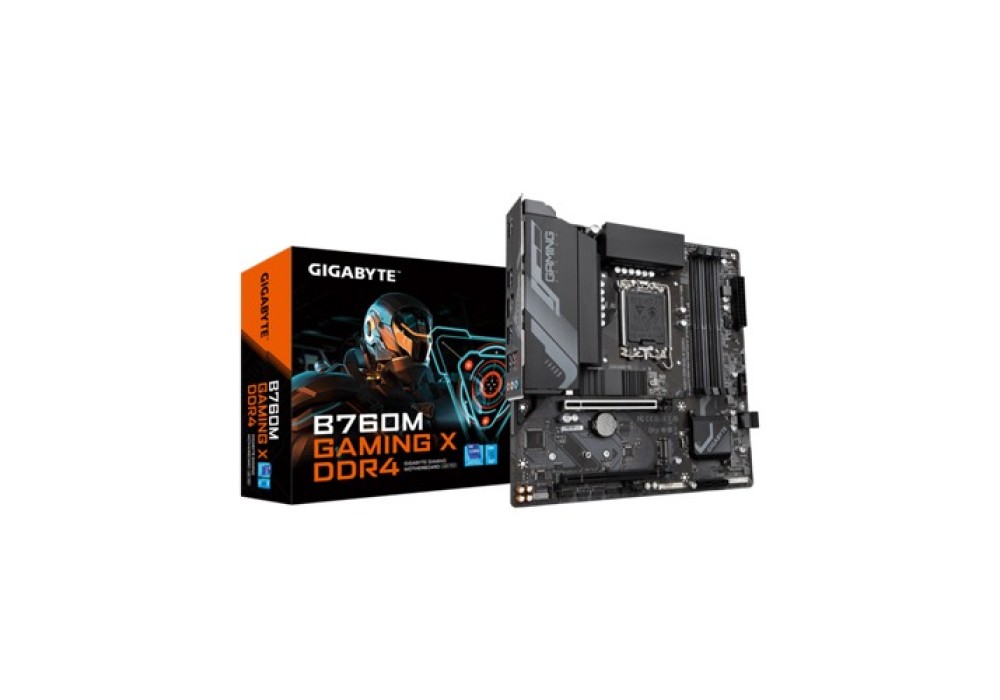

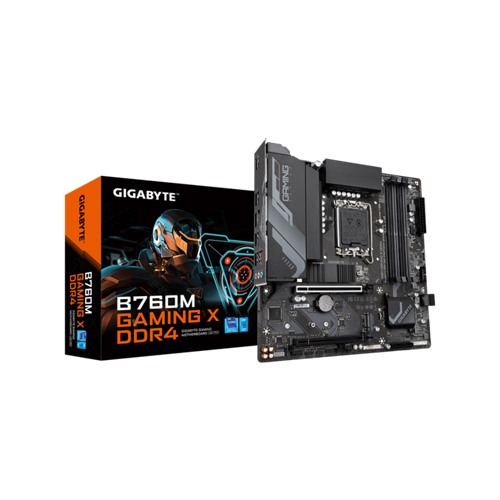

Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard

Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
-12 %
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
  • Stock: In Stock
  • Model: B760M Gaming X DDR4
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
19,800৳
22,570৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supported CPU: 12th/13th Gen Intel Processors LGA1700
    • Supported RAM: 4x DDR4, Max 128GB 5333OC
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5GbE LAN chip
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Key Features
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Others Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Basic Information
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Chipset Intel® B760 Express Chipset
Input Devices
Expansion Slot 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory Specifications
Memory Type DDR4
Slots 4 x DDR DIMM
Supported Memory Type Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory up to 128 GB (32 GB single DIMM capacity)
Motherboard
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Connectivity
Others Back Panel Connectors:
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Connector & Ports
USB (s) Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Graphics
Graphics 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Description

Upgrade Your Gaming Rig with the Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard

The Gigabyte B760M Gaming X is a DDR4 Micro ATX motherboard that is compatible with Intel Core processors of the 11th and 10th generations. It has two DDR4 memory slots that support up to 64GB of RAM, providing users with fast and efficient data processing. The motherboard also comes with Realtek ALC1200 audio codec, ensuring high-quality sound output for gaming and multimedia content. The B760M Gaming X has a range of connectivity options, including USB 3.2 Gen1 and USB Type-C ports, as well as 2.5G LAN and Gigabit LAN for network connectivity. The motherboard also has support for M.2 and U.2 NVMe solid-state drives, offering fast data transfer speeds and quick load times. This motherboard features Gigabyte's advanced thermal design, which helps maintain stability even during intense usage. It also comes with RGB Fusion 2.0, allowing users to customize the lighting of their system with RGB lighting strips. The B760M Gaming X has two PCI Express 4.0 x16 slots and three PCI Express 4.0 x1 slots, providing users with ample expansion options. The motherboard also supports Intel Optane Memory, which enhances the speed of frequently used applications and files. In conclusion, the Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard is a feature-packed and powerful option for gamers and content creators. With its high-quality audio, advanced thermal design, and customizable lighting options, the B760M Gaming X is an excellent choice for building a high-performing system.

Performance

At the heart of every gaming setup lies the quest for superior performance. The Gigabyte B760M Gaming X DDR4 motherboard is engineered to meet the demands of modern gaming, offering unparalleled speed, reliability, and efficiency. Powered by the Intel® B760 Express Chipset and equipped with high-speed DDR4 memory, this motherboard ensures smooth multitasking and seamless gameplay even in the most intense gaming sessions. With support for the latest 13th and 12th Generation Intel® Core™ processors, Pentium® Gold, and Celeron® processors, you can expect nothing short of exceptional performance from this gaming marvel.

DDR4 Memory

DDR4 memory technology offers faster data transfer rates and enhanced multitasking capabilities. You may customize your gaming setup to fit your tastes with the Gigabyte B760M Gaming X DDR4 motherboard's support for a large variety of DDR4 RAM modules, including overclocked alternatives. DDR4 memory guarantees lag-free and responsive gaming, taking your gameplay to new heights whether you're playing fast-paced action games or relaxing in open-world adventures.

Form Factor

Designed with convenience and versatility in mind, the Gigabyte B760M Gaming X DDR4 motherboard boasts a Micro ATX form factor, measuring 24.4cm x 24.4cm. Despite its compact size, this motherboard packs a punch with its robust features and impressive performance capabilities. Whether you're building a compact gaming rig or upgrading your existing setup, the Micro ATX form factor of this motherboard offers flexibility and ease of installation, making it the perfect choice for gamers with space constraints.

Connectivity

Connectivity is key in the world of gaming, and the Gigabyte B760M Gaming X DDR4 motherboard excels in this aspect. With a plethora of connectivity options, including USB ports, HDMI, DisplayPort, and Ethernet, you can seamlessly connect your peripherals, monitors, and networking devices without any hassle. Additionally, the motherboard features advanced wireless communication modules, such as Wi-Fi 6E and Bluetooth 5.3, ensuring high-speed internet connectivity and wireless device pairing for an uninterrupted gaming experience.

FAQs

Q: Is the Gigabyte B760M Gaming X DDR4 motherboard compatible with Windows 11?

A: Yes, the motherboard is fully compatible with Windows 11 64-bit operating system, ensuring a seamless user experience.
Q: Can I overclock the DDR4 memory on the Gigabyte B760M Gaming X motherboard?

A: Absolutely! The motherboard supports overclocked DDR4 memory modules, allowing you to maximize performance and unleash the full potential of your gaming rig.
Q: Does the Gigabyte B760M Gaming X DDR4 motherboard support dual-channel memory architecture?

A: Yes, the motherboard supports dual-channel memory architecture, enabling faster data transfer speeds and improved system responsiveness.
Q: What is the maximum memory capacity supported by the Gigabyte B760M Gaming X DDR4 motherboard?

A: The motherboard supports up to 128 GB of memory capacity, ensuring ample space for multitasking and resource-intensive gaming applications.
Q: Does the Gigabyte B760M Gaming X DDR4 motherboard come with built-in audio capabilities?

A: Yes, the motherboard features a Realtek® Audio CODEC with support for high-definition audio and various audio configurations to suit your preferences.
