- Stock: In Stock
- Model: B760M GAMING DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
| General | |
| Type | DDR4 |
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory Specifications | |
| Memory Size | supporting up to 64 GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Supported Memory Type | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1 x DisplayPorts |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

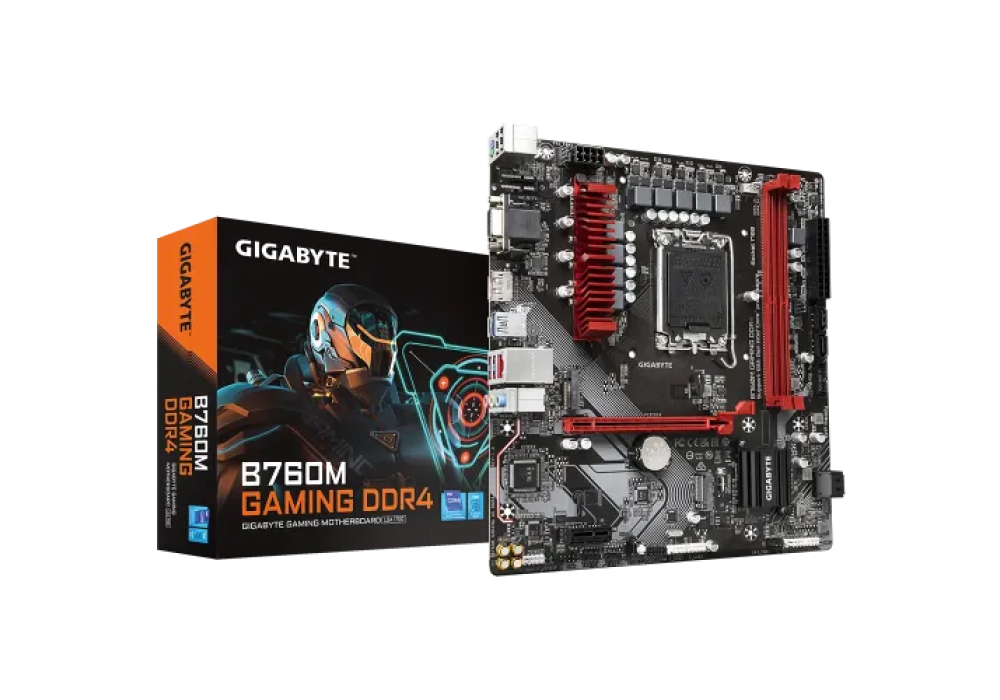

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
The GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is a perfect choice for gamers and PC enthusiasts in Bangladesh who want to build a high-performance system without breaking the bank. Designed to deliver exceptional performance, this motherboard supports the latest Intel 12th and 13th generation processors and comes with advanced DDR4 memory compatibility, ensuring smooth multitasking and faster data processing. Its Micro ATX form factor makes it ideal for compact PC builds while still offering all essential connectivity options.
With reinforced PCIe slots, high-quality VRM design, and enhanced thermal solutions, the GIGABYTE B760M GAMING DDR4 motherboard guarantees stability during intense gaming sessions and heavy workloads. Gamers can enjoy superior audio quality, multiple USB ports, and support for high-speed storage solutions, making it a complete package for modern PC builds. Whether you are into competitive gaming, content creation, or productivity, this motherboard ensures reliable performance and future-ready upgrades.
If you are looking for the gigabyte b760m gaming ddr4 motherboard price in bd, this motherboard offers one of the most cost-effective solutions in Bangladesh while delivering premium features and durability. Perfect for both new builders and seasoned gamers, the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard combines performance, reliability, and affordability in one package.
Buying Guidelines for GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
- Processor Compatibility – Ensure your CPU is compatible with the motherboard. The B760M supports Intel 12th and 13th generation processors for optimal performance. This ensures you can unlock full CPU potential and achieve stable high-speed performance.
- Memory Support – Check the DDR4 memory slots and maximum RAM capacity. This motherboard supports dual-channel DDR4 memory for fast multitasking and smooth gaming. Upgrading RAM is easy and ensures your system handles demanding applications without lag.
- Form Factor – The Micro ATX size is ideal for compact builds. Make sure your PC case can accommodate a Micro ATX motherboard. Compact design allows for better airflow and fits perfectly in smaller setups without compromising features.
- Expansion Slots & Connectivity – Consider the number of PCIe slots, USB ports, and storage options. This motherboard provides reinforced PCIe slots and multiple USB and SATA connections for future upgrades. Flexible expansion options let you add graphics cards, storage devices, and peripherals as needed.
- Thermal & Power Design – Look for reliable VRM and cooling solutions to prevent overheating during long gaming or work sessions. Efficient thermal management ensures long-term stability and protects your components from damage.
Enhance your gaming setup with the GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard, designed for high performance and reliable gameplay. Pair it with a Budget Gaming Motherboard for a cost-effective upgrade, or explore our range of gaming keyboards to complete your ultimate gaming experience. These carefully selected products ensure smooth performance, better control, and immersive gaming, making your system ready for both competitive and casual gaming sessions.
Why Choose GIGABYTE B760M GAMING DDR4 Motherboard from Onix BD?
Upgrade your gaming rig with the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard available at Onix BD. This motherboard delivers excellent performance, reliable stability, and future-ready features for both gamers and PC enthusiasts. Grab it now from Onix BD and experience smooth gameplay, fast data transfer, and a compact yet powerful setup for your next-level PC build. Plus, you can check the latest gigabyte b760m gaming ddr4 motherboard price in bd directly at Onix BD to make a smart purchase.
