- Stock: In Stock
- Model: B760M G AX
- Supported CPU: 14th, 13th, and 12th Generation Intel Core
- Form Factor: Micro ATX
- Memory Max.: 128 GB
- Ram Type: DDR5
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Memory | 14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory module |
| Input Devices | |

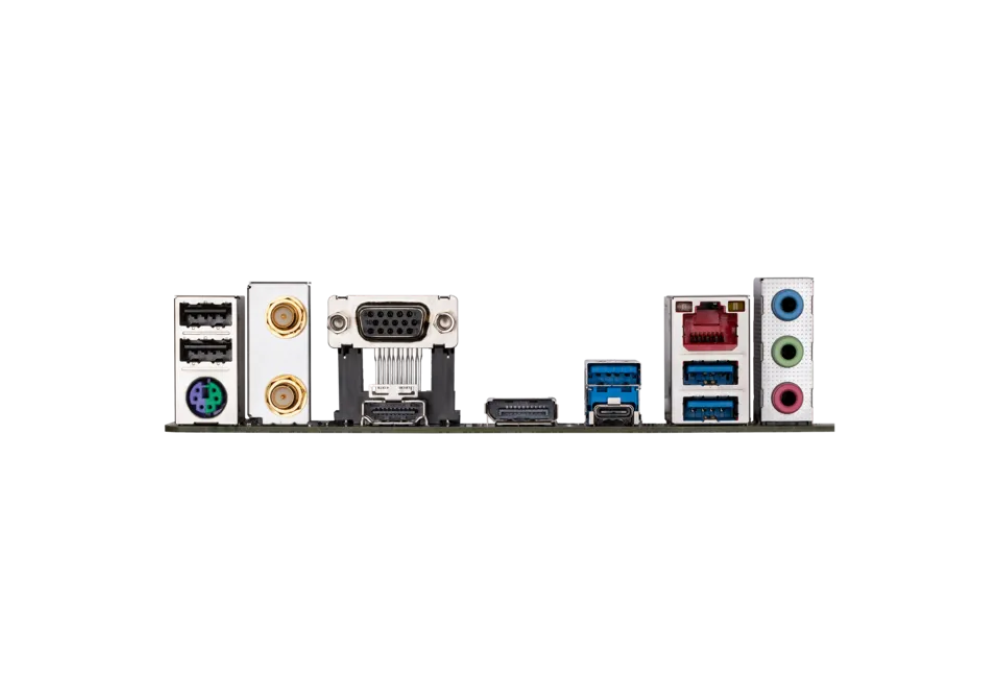

| External I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) (Note) jkl 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Memory Specifications | |
| Slots | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x |
| Support | |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Others Information | |
| Special Features | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Network & Connectivity | |
| WiFi | Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard |
| Physical Specification | |
| Dimension | 24.4cm x 24.4cm |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE B760M G AX DDR5 Micro ATX Motherboard Price in BD
The GIGABYTE B760M G AX DDR5 Micro ATX Motherboard is a feature-rich and budget-friendly platform designed for modern Intel builds—offering strong performance, future-ready upgrades, and competitive connectivity at a great Price in BD. Built on the Intel B760 chipset, this Micro ATX board supports 12th, 13th, and 14th Gen Intel processors with DDR5 memory support for faster speeds and enhanced system responsiveness. With built-in Wi-Fi 6, 2.5G LAN, and multiple USB ports, it provides high-speed networking options for gaming, streaming, and daily tasks. The motherboard also includes reinforced PCIe slots and M.2 connectors with thermal protection for SSDs, ensuring stable performance and improved reliability even under load. Compact yet capable, the B760M G AX is ideal for small to mid-sized builds where space efficiency and performance matter. If you’re planning a modern Intel system build with future expandability and clear Price in BD, this motherboard delivers excellent value and versatility for gamers, creators, and everyday users alike.
Features
-
Intel B760 chipset supporting 12th, 13th & 14th Gen Intel CPUs
-
DDR5 memory support for enhanced performance
-
Built-in Wi-Fi 6 for fast wireless connectivity
-
2.5G LAN for stable high-speed networking
-
Multiple M.2 slots with heatsinks for SSD cooling
-
Reinforced PCIe slot for GPU stability
Fast Connectivity & Performance
This motherboard delivers reliable networking with built-in Wi-Fi 6 and 2.5G LAN, reducing latency and improving online gaming and streaming stability. DDR5 support ensures faster memory speeds and smoother multitasking performance.
Compact & Upgrade-Friendly
The Micro ATX form factor makes the B760M G AX ideal for compact builds while still providing plenty of expansion options, including M.2 slots and PCIe support for graphics cards and other add-ons. Thermal protection on storage slots helps maintain consistent SSD performance.
Why Choose GIGABYTE B760M G AX DDR5 Micro ATX Motherboard?
The GIGABYTE B760M G AX DDR5 Micro ATX Motherboard stands out by combining modern features like DDR5 support, Wi-Fi 6, and 2.5G LAN in a compact design perfect for sleek system builds. It supports the latest Intel CPUs and offers stable performance, robust connectivity, and expandable storage options. For users building a powerful yet space-efficient Intel PC with a competitive Price in BD, this motherboard delivers excellent overall value and future-ready capability.
Benefits of the Product
-
Supports latest Intel CPUs for versatile performance
-
Enhances overall speed with DDR5 memory support
-
Improves wireless and wired networking with Wi-Fi 6 and 2.5G LAN
-
Cools SSDs effectively with M.2 thermal protection
-
Reinforced PCIe for GPU stability
-
Great value with competitive Price in BD
