Model: B760M-AYW WIFI D4
View More Info...
Chat Through
| Type | DDR4 |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| M.2 Socket | 2 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Slots | 2 x DIMM |
| Supported Memory Type | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Max. Memory | 64GB |
| HDMI | 1 x HDMI |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Wireless Communication module | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Graphics | 1 x HDMI port Graphics specifications may vary between CPU types Supports 4K@60Hz as specified in HDMI 2.1 |
| Other Features | RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Manufacturing Warranty | 3 years |

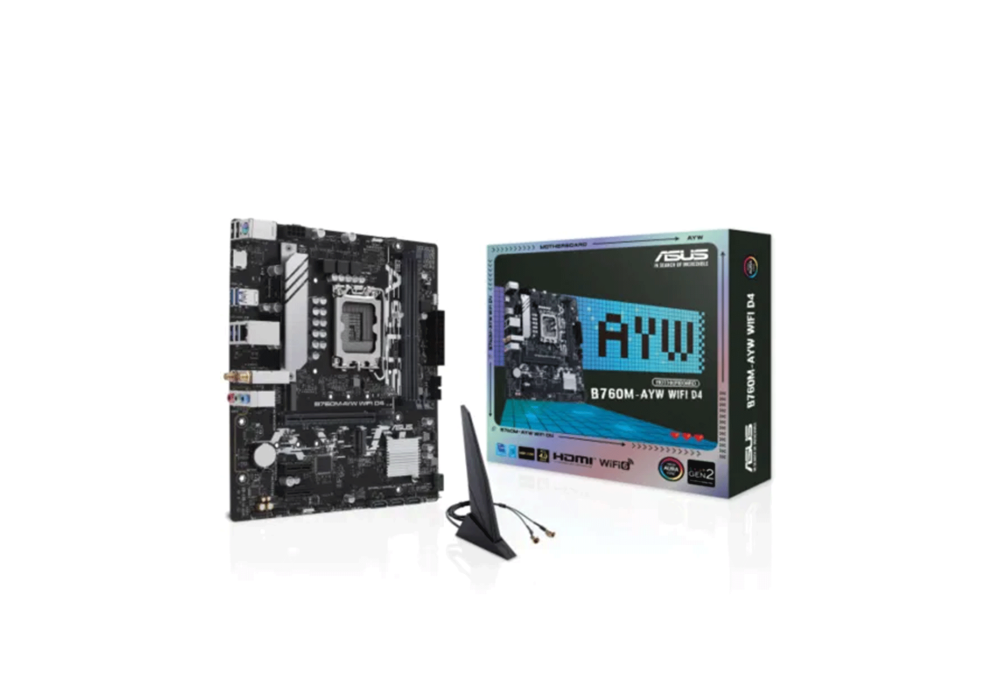

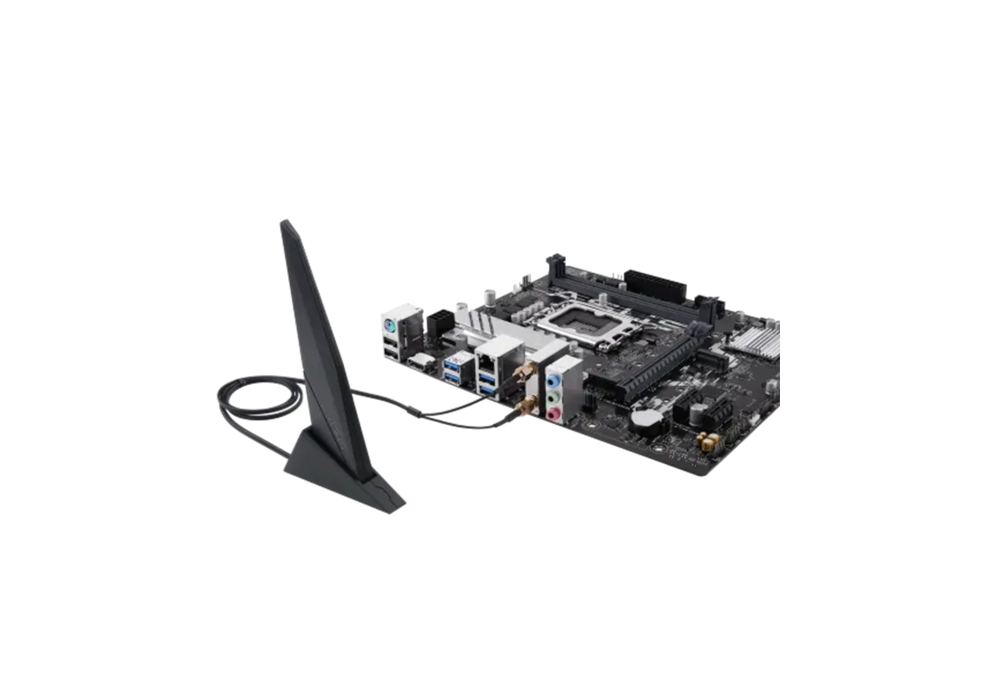

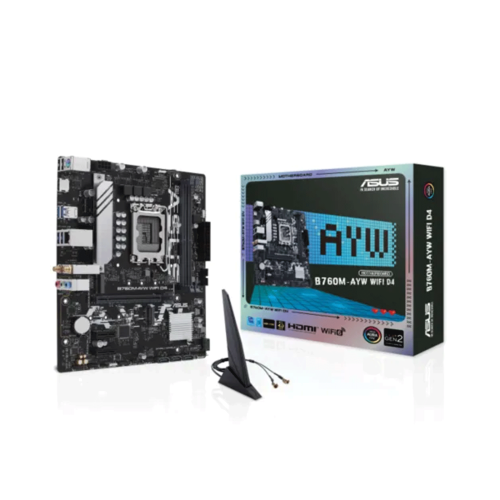

The ASUS B760M-AYW WIFI D4 mATX Motherboard is a versatile and feature-rich motherboard designed for Intel’s 12th, 13th, and 14th generation Core processors, providing exceptional performance for both gaming and productivity tasks. Equipped with the Intel B760 chipset, this motherboard is built to support Intel’s Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, offering enhanced processing power. Supporting DDR4 memory, the B760M-AYW can handle speeds of up to 5333 MHz (overclocked) and supports a maximum memory capacity of 64GB. The motherboard features dual-channel memory architecture and is compatible with Intel’s Extreme Memory Profile (XMP) for overclocking. The two M.2 slots and four SATA 6Gb/s ports provide ample storage options, with the M.2 slots supporting PCIe 4.0 x4 mode for fast data transfers. Connectivity is robust, with Wi-Fi 6 support for fast wireless internet and Bluetooth 5.2 for efficient device pairing. For wired networking, the motherboard offers a Realtek 2.5Gb Ethernet port. The I/O panel includes six USB ports, including USB 3.2 Gen 1 and USB 2.0 ports, as well as an HDMI port that supports 4K video output at 60Hz. In terms of audio, the B760M-AYW features Realtek 7.1 Surround Sound with support for 24-bit/192 kHz playback, offering premium audio experiences for entertainment and content creation. Additionally, ASUS includes their signature 5X Protection III for enhanced durability, DIGI+ VRM, LANGuard, and SafeSlot Core to ensure long-lasting reliability. With an array of RGB headers and support for Aura Sync, users can customize their PC’s lighting, making it a stylish as well as powerful addition to any setup. The motherboard is backed by a 3-year warranty, ensuring reliability and peace of mind.
