Model: B760M D3HP WIFI6
View More Info...
Chat Through
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB (s) | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x D-Sub port* 1 x DisplayPort* 1 x HDMI port* 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Warranty | 3 years Warranty |

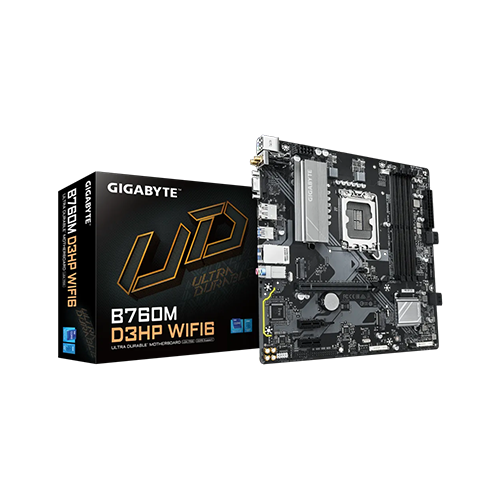

Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard Price in BD makes it a great mid-range option for users looking for premium features and next-level connectivity. Designed with Intel’s B760 Express chipset, this motherboard supports 12th, 13th, and 14th Gen Intel® Core™, Pentium®, and Celeron® processors through the LGA1700 socket. It ensures exceptional performance and multitasking capabilities, perfect for gamers, content creators, and professionals. With four DDR5 DIMM slots supporting up to 192GB memory, the Gigabyte B760M D3HP offers high-speed data processing and efficient multitasking. Its integrated Realtek Wi-Fi 6 and Bluetooth 5.3 provide ultra-fast, stable wireless performance, ensuring smooth online gaming and streaming. The Realtek® GbE LAN adds wired stability for competitive gaming or high-bandwidth workloads. For storage flexibility, it features dual M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors supporting RAID 0/1/5/10 configurations. This allows users to enjoy blazing-fast SSD speeds and enhanced storage reliability. The motherboard also supports multiple display outputs — HDMI 2.1, DisplayPort 1.2, and D-Sub — enabling triple-monitor setups for productivity or immersive gameplay. Gigabyte’s signature Q-Flash Plus, advanced cooling headers, and RGB/ARGB lighting support make installation and customization effortless. The motherboard is compatible with Windows 10 and 11 (64-bit) and includes GIGABYTE Control Center for system tuning and monitoring. Overall, the Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard delivers a balanced combination of performance, connectivity, and durability — ideal for modern computing and gaming builds in Bangladesh.
The Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard is widely available across Bangladesh through trusted retailers like Onix Computer. Its versatile compatibility with 12th, 13th, and 14th Gen Intel processors makes it an excellent choice for gaming and productivity. Easy BIOS updates, stable Wi-Fi 6 connectivity, and smooth system performance enhance overall usability for all types of users.
The Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard price in Bangladesh is quite affordable considering its advanced specifications. Onix Computer offers competitive pricing with authentic warranty support. This motherboard provides excellent value for gamers, content creators, and professionals looking for a reliable, high-performance board that supports the latest Intel CPUs and DDR5 memory technology.
The Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard offers outstanding gaming performance thanks to its DDR5 memory support, PCIe 4.0 slots, and high-speed Wi-Fi 6 connectivity. Gamers experience smooth frame rates, faster data transfers, and minimal latency during gameplay. Combined with a 14th or 13th Gen Intel Core processor, this motherboard ensures immersive graphics rendering and stable FPS performance across modern AAA titles.
Users appreciate the Gigabyte B760M D3HP WIFI6 DDR5 Intel Motherboard for its simple installation, stable performance, and easy BIOS control. With enhanced Wi-Fi, efficient cooling, and multiple connectivity options, it provides a reliable computing experience. Whether for gaming, editing, or everyday multitasking, users enjoy seamless operation with superior speed and system stability.
Onix Computer is one of Bangladesh’s most trusted tech retailers, providing 100% authentic Gigabyte products with official warranty and expert support. When buying from Onix, customers enjoy competitive pricing, reliable after-sales service, and fast nationwide delivery. Onix ensures genuine components and the latest models for the best performance and peace of mind.
Q1: Does the Gigabyte B760M D3HP support 14th Gen Intel processors?
A: Yes, it fully supports 12th, 13th, and 14th Gen Intel Core™, Pentium®, and Celeron® processors.
Q2: Can I use DDR5 RAM on this motherboard?
A: Absolutely. It supports up to 192GB DDR5 memory with dual-channel architecture.
Q3: Is Wi-Fi included in this motherboard?
A: Yes, it comes with built-in Wi-Fi 6 and Bluetooth 5.3 for high-speed wireless connectivity.
