Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard

Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Out Of Stock
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Model: B660M Aorus Pro DDR4
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • WIFI 6 802.11ax 2T2R and BT5 with AORUS Antenna
    • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device
advanced settings > Playback Device to change the default setting first. Please visit
GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Memory Specifications
Memory Type DDR4
Slots 4 x DDR DIMM sockets
Supported Memory Type Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/
4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory up to 128 GB (32 GB single DIMM capacity) of system memory

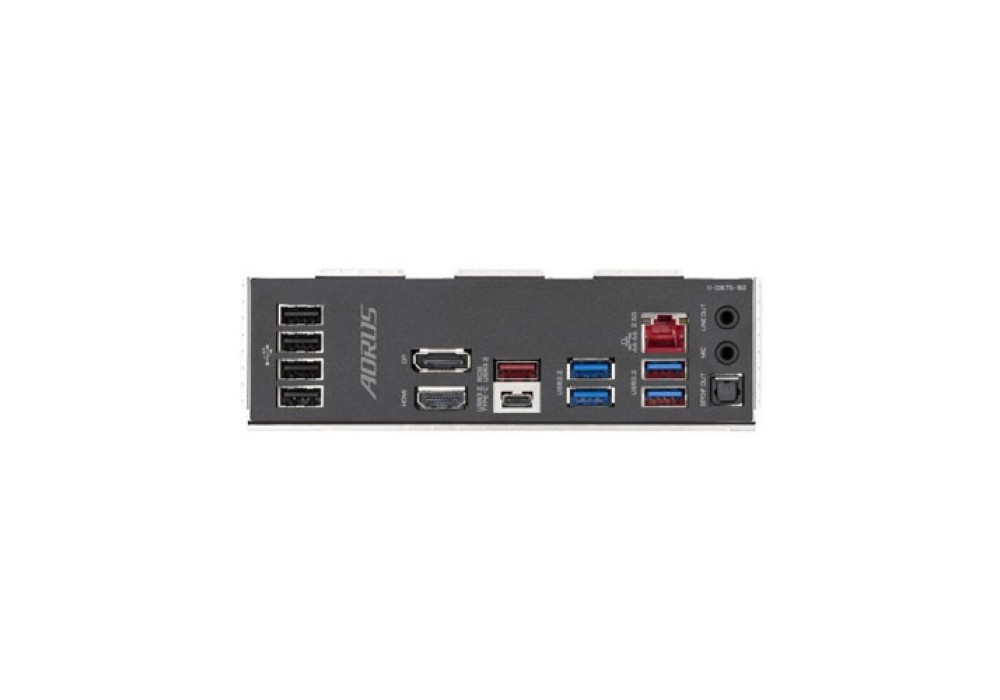

Connector & Ports
HDMI 1 x HDMI port
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)
(M2P_SB)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Others Information
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years
Description

Gigabyte B660M Aorus Pro DDR4 12th Gen Micro ATX Motherboard

The Gigabyte B660M AORUS PRO Motherboard From Gigabyte.Gigabyte B660M AORUS PRO Motherboard The New King Of Gaming Platform Continues The Legendary AORUS Bloodline With The Most Robust Power Delivery And Dominant Thermal Design, Glorified With The Complete Memory Overclocking Technology To Crown Your PC With The Best Alder Lake's Performance In All Its Gaming Glory.With  Technology  Moving So  Fast, GIGABYTE Still Keep Up With The Latest Trends And Provide Our Customers With Advanced Features And Latest Technology. Gigabyte B660M AORUS PRO Motherboard Come With Upgraded Power Solution, Latest Storage Standards And Outstanding Connectivity To Enable Optimize Performance For Gaming.​Gigabyte B660M AORUS PRO Motherboard Un-Throttled Performance Is Guaranteed By Innovative And Optimized Thermal Design To Ensure The Best CPU, Chipset, SSD Stability And Low Temperatures Under Full Load Application And Gaming.Gigabyte B660M AORUS PRO Motherboard Let You Experience Ultimate Connection Flexibility And Blazing Data-Transfer Speed With Next Generation Network, Storage.GIGABYTE Motherboards Bundle Several Useful And Intuitive Software To Help Users To Control Every Aspect Of Motherboard And Provide Customizable Lighting Effect With Outstanding Aesthetics To Fit Your Unique Personality.GIGABYTE Ultra Durable™ Features Its Product Durability And High-Quality Manufacturing Process. GIGABYTE Motherboards Use The Best Components And Reinforce Every Slots To Make Each Of Them Solid And Durable.​
