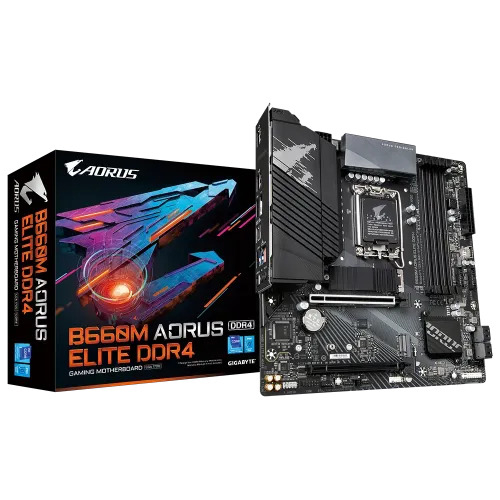

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Connector & Ports
HDMI 1 x HDMI 2.0 port
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)
(M2P_SB)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Others Information
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

The B660M AORUS ELITE DDR4 from Gigabyte is a 12th-generation motherboard. 12th generation Intel Core series processors are supported by the Gigabyte B660M AORUS ELITE DDR4 with dual channel non-ECC unbuffered DDR4, 4 DIMMs, and a 12+1+1 dual hybrid digital VRM design with 60A DrMOS. It has a Fast 2.5 GbE GAMING LAN with Bandwidth Management and a Fully Covered Thermal Design with High Coverage VRM Heatsink. The pre-installed IO Shield and Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard and USB 3.2 Gen1 Type-C for Fast and Versatile Connections make installation simple and rapid. High-quality audio capacitors and audio noise protectors are also included with the Gigabyte B660M AORUS ELITE DDR4. GIGABYTE continues to stay on top of the most recent trends and provides our customers with cutting-edge features and cutting-edge technology despite how swiftly technology is advancing. The GIGABYTE B660 Series motherboards provide improved power solutions, the most recent storage standards, and outstanding connectors for top-notch gaming performance. The Gigabyte B660M AORUS ELITE DDR4 features a high coverage MOSFET and integrated molded heatsinks in its fully covered thermal design to improve thermal efficiency through improved ventilation and heat exchange. M.2 Thermal Guard is present. High-speed M.2 SSDs can operate without throttling or bottlenecking thanks to the M.2 Thermal Guard, which helps to remove heat before it becomes a problem. Due to its excellent thermal conductivity and low impedance, the 2X Copper PCBs design successfully reduces the component temperature. With next-generation network and storage connections, the Gigabyte B660M AORUS ELITE DDR4 provides you with the highest level of connection flexibility and lightning-fast data transfer rates. The GIGABYTE motherboard comes with a variety of practical and simple software tools that allow users to manage every part of the motherboard and customize the lighting effects for a really bespoke look that expresses their individuality. GIGABYTE Ultra Durable stands for the quality of its production process and long-lasting products. The greatest components are used in GIGABYTE motherboards, and each slot is reinforced to make each one strong and long-lasting. This gaming motherboard supports RGB LED Strips and Addressable LEDs thanks to RGB FUSION 2.0. Additionally, it supports Smart Fan 6, which has FAN STOP and many temperature sensors. Without installing the CPU, memory, and graphics card, the Q-Flash Plus updates the BIOS.
