GIGABYTE B650 UD AX-Y1 Motherboard

GIGABYTE B650 UD AX-Y1 Motherboard

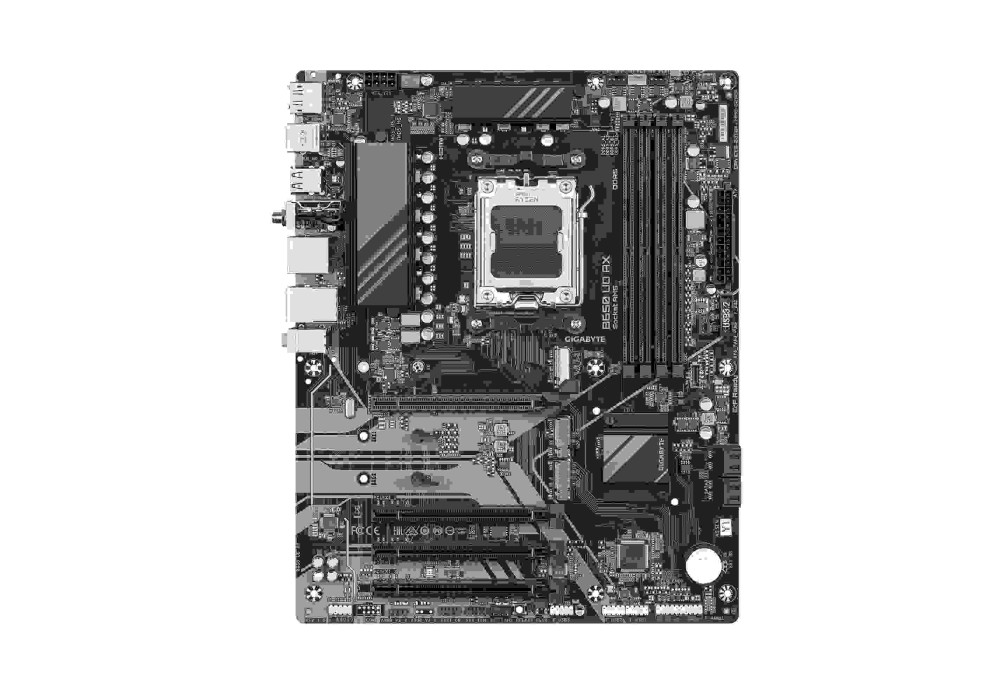

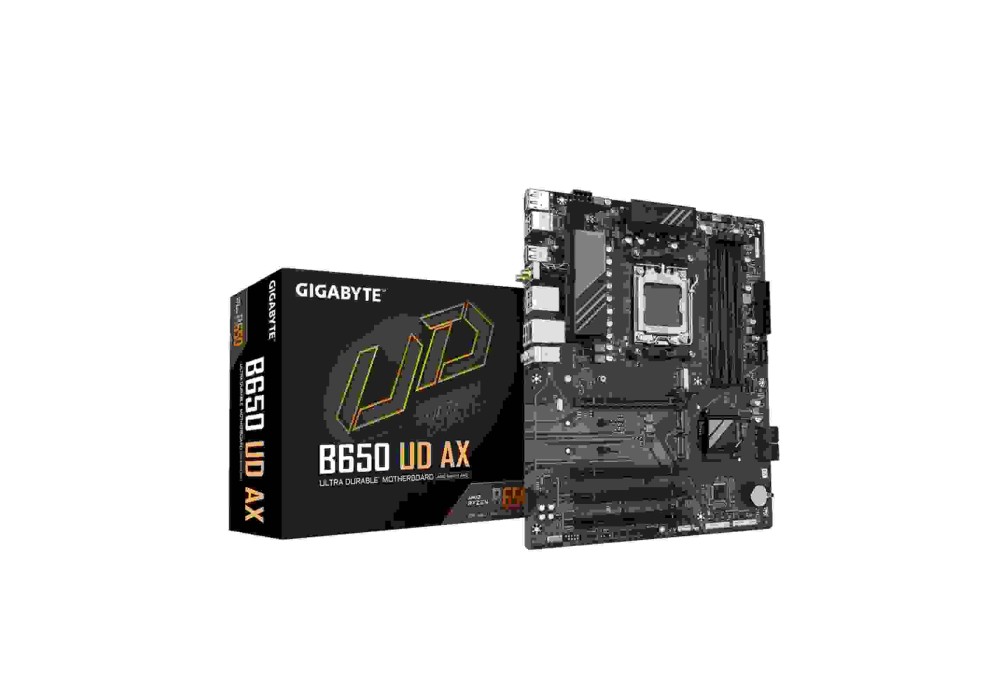

The GIGABYTE B650 UD AX‑Y1 is a well‑equipped ATX motherboard designed for AMD’s AM5 socket, providing strong support for Ryzen 7000, 8000, and 9000 series processors. It targets users seeking a solid value platform capable of running high‑end Ryzen chips with stability and efficiency, thanks to its thoughtfully implemented voltage regulation and modern features. At the core of the board’s power delivery is a 6 + 2 + 2 digital VRM configuration built with quality MOSFETs. This multi‑phase design ensures smooth, stable power delivery to the CPU under load, making it well‑suited for both overclocked and stock Ryzen systems. The additional power rails support auxiliary functions like integrated graphics or chipset operations, improving overall system reliability.

Memory support includes four DDR5 DIMM slots with compatibility for both AMD EXPO™ and Intel XMP profiles. Users can achieve overclocked speeds up to 7600 MT/s or more, depending on memory modules, giving flexibility for high‑bandwidth applications and gaming. Storage options are generous: one PCIe 5.0 M.2 slot wired directly to the CPU enables next‑generation SSD performance, complemented by two PCIe 4.0 M.2 slots via the B650 chipset. Four SATA 6 Gb/s ports are also provided for conventional storage drives. Connectivity is modern and versatile. The rear panel offers HDMI and DisplayPort outputs for use with Ryzen APUs, plus a USB 3.2 Gen 2×2 Type‑C port reaching up to 20 Gb/s, alongside several Gen 2 and Gen 1 USB Type‑A ports. Networking includes Gigabit Ethernet and built‑in Wi‑Fi 6 with Bluetooth 5.x support, catering well to users who want both fast wired and wireless access. Audio features include a Realtek high‑definition codec with noise‑shielded PCB zones and premium capacitors, helping deliver clearer analog sound output. Cooling and BIOS conveniences are well thought‑out. Gigabyte’s Smart Fan 6 system integrates multiple thermal sensors and hybrid fan headers, offering customizable cooling curves and the option to stop fans completely when temperatures are low. The board also includes an EZ‑Latch tool‑free PCIe slot for easy GPU installation and removal, and Q‑Flash Plus functionality, which enables BIOS updates without needing to install CPU, memory, or graphics card—useful for initial chip support or firmware updates. Feedback from enthusiast communities reflects confidence in the board’s design. Users have remarked that it offers stable VRM phases, multiple M.2 slots, and a layout suited for practical builds, though some note the absence of a dedicated heatsink for M.2 SSDs as a minor oversight. That is easily addressed with an aftermarket cooling solution. In summary, the GIGABYTE B650 UD AX‑Y1 motherboard delivers a balanced package of modern features, reliable performance, and upgrade headroom. It excels as a mid‑ to high‑range option for Ryzen desktop builders who value functionality—covering overclocking, high‑speed storage, USB‑C connectivity, and onboard wireless capabilities—all without the premium price tag of flagship boards.
